Samsung Electronics 4-27

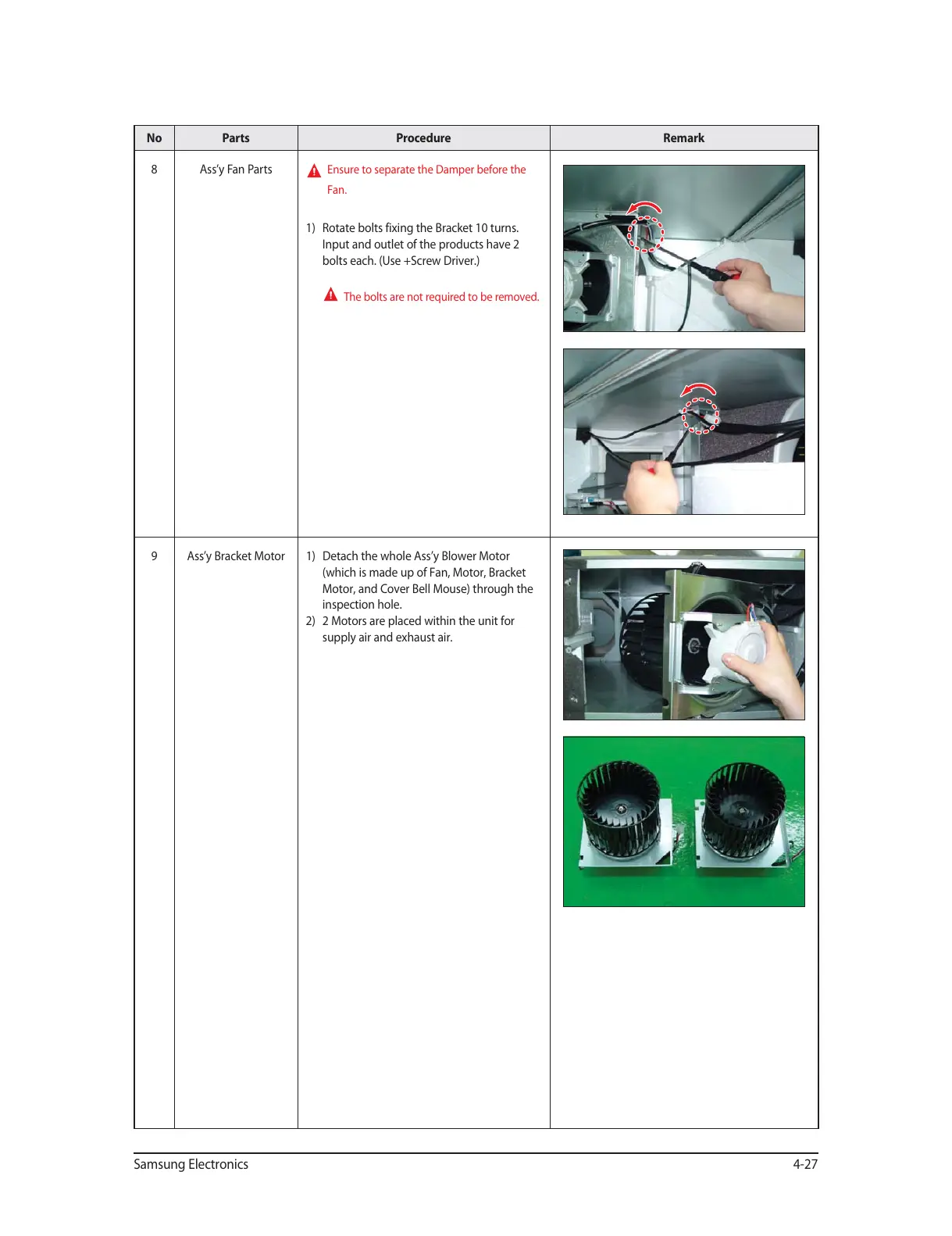

No Parts Procedure Remark
8 Ass’y Fan Parts
Ensure to separate the Damper before the
Fan.
1) Rotate bolts fixing the Bracket 10 turns.
Input and outlet of the products have 2
bolts each. (Use +Screw Driver.)
The bolts are not required to be removed.
9 Ass’y Bracket Motor 1) Detach the whole Ass’y Blower Motor
(which is made up of Fan, Motor, Bracket
Motor, and Cover Bell Mouse) through the
inspection hole.
2) 2 Motors are placed within the unit for
supply air and exhaust air.
To Next Page
