3-1 Outdoor Unit
No Parts Procedure Remark

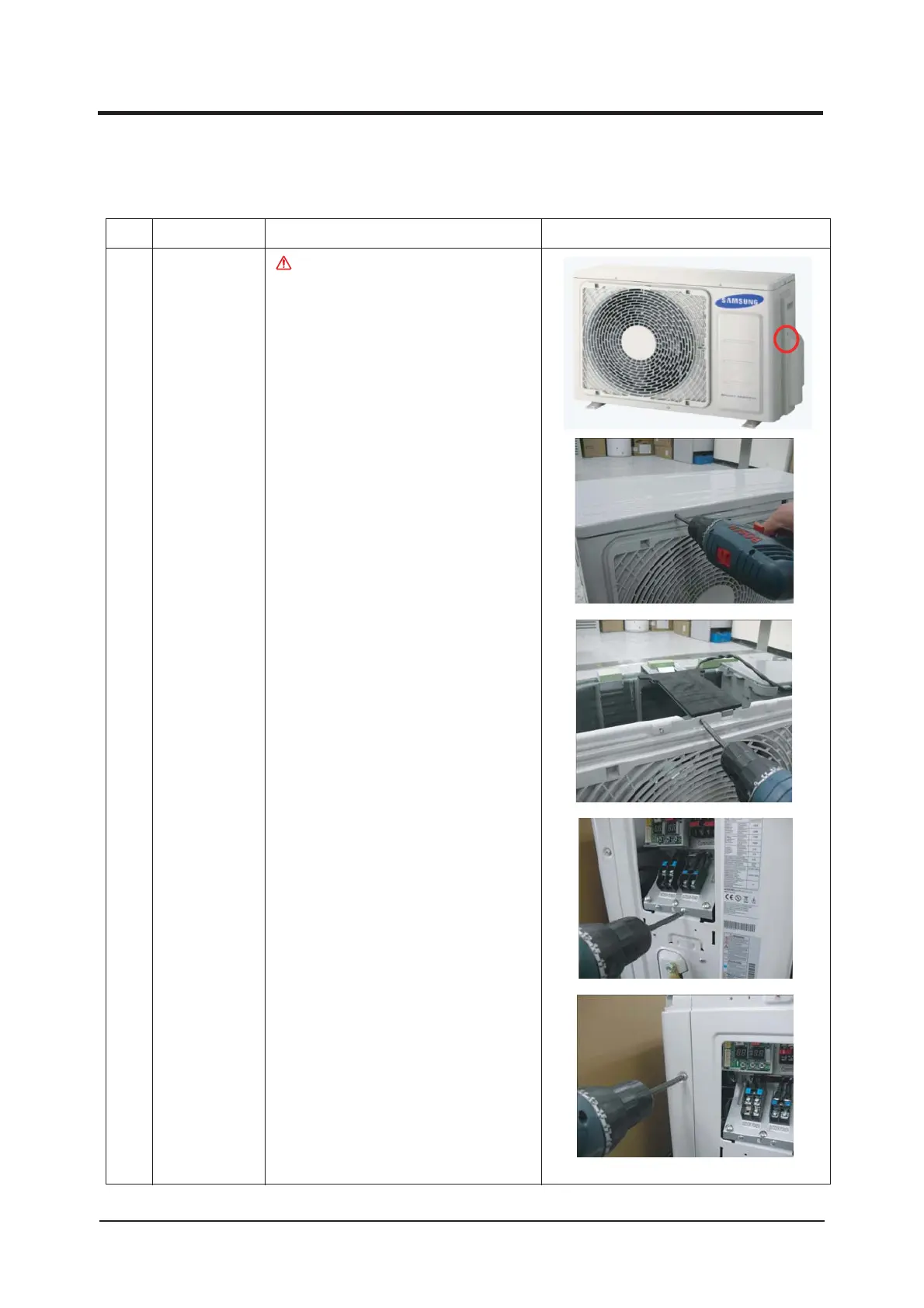

1 Common Work
&
Control Out
1) Loosen 1 fixing screw(CCW)of the
Cover-Side. (Use +Screw Driver.)
2) Loosen each 6 screws(CCW)on cabi
top.
(Use +Screw Driver.)
3) Loosen each 7 screws(CCW)on cabi
front.
4) Loosen 2 screw(CCW)fixed to assemble
Plate Control Out with Cabinet-Side RH.
(Use +Screw Driver.)
5) Loosen 2 fixing screws(CCW)on
Cabinet-Side RH.
(Use +Screw Driver.)
Take care of the electrical shock by contact on the charging parts before the discharge after power off. (If takes approximately
2 minutes to discharge.)
3-1-1 RJ040F2HXEA/RJ050F2HXEA
(Use +Screw Driver.)
