INSTALLATION INSTRUCTIONS
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Refrigerator Door

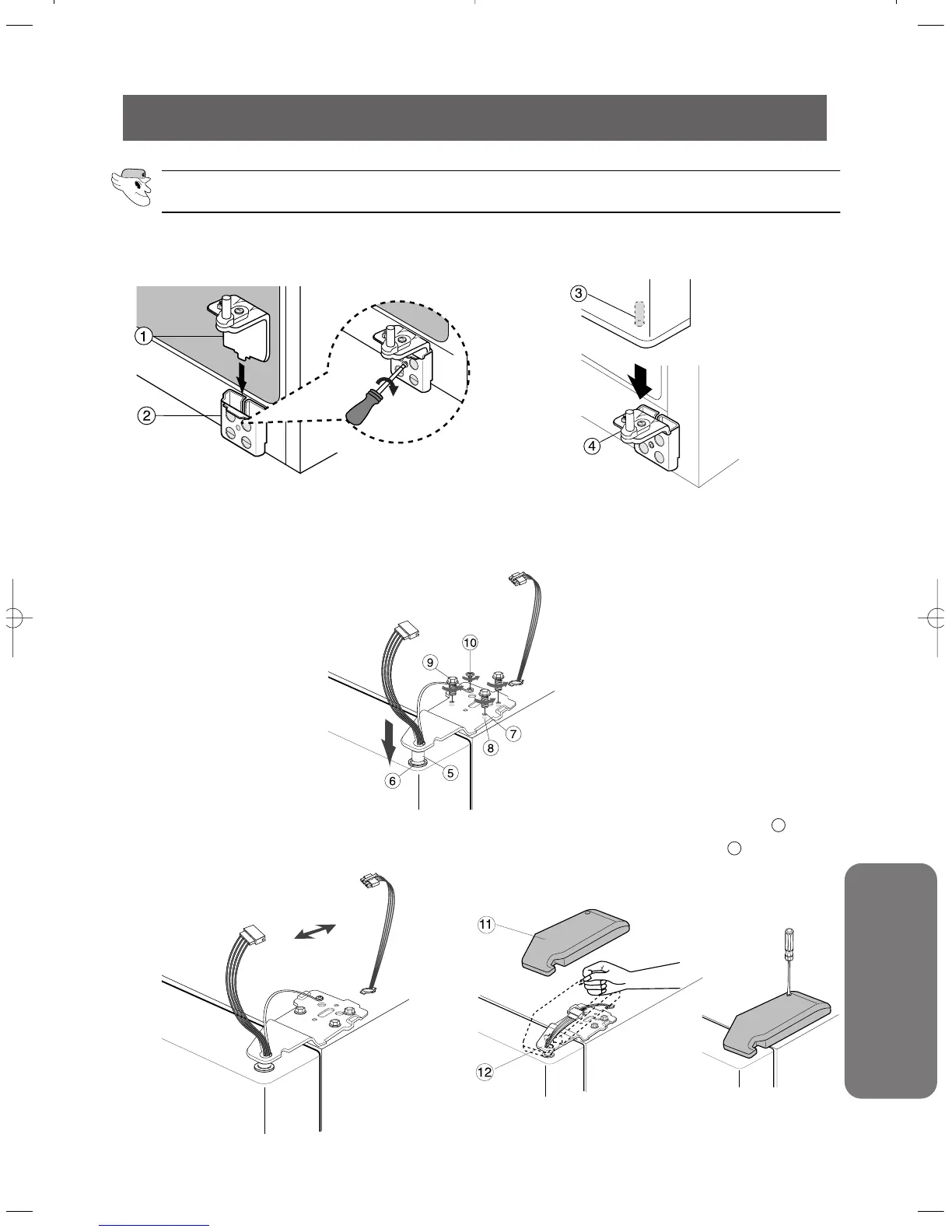

1) Insert the lower hinge (➀) in the bracket
lower hinge (➁).
2) Place the hole in the refrigerator door (➂)
over the lower hinge (➃).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling the upper hinge hole (➆)
with the hole of the cabinet (
➇
). Fasten hinge screws (➈) and screw (➉) in the clockwise direc-tion.
4) Connect the wires. 5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach it from the front part of the upper
hinge cover first.
