Samsung S803JGB2/YLW - Page 33

25

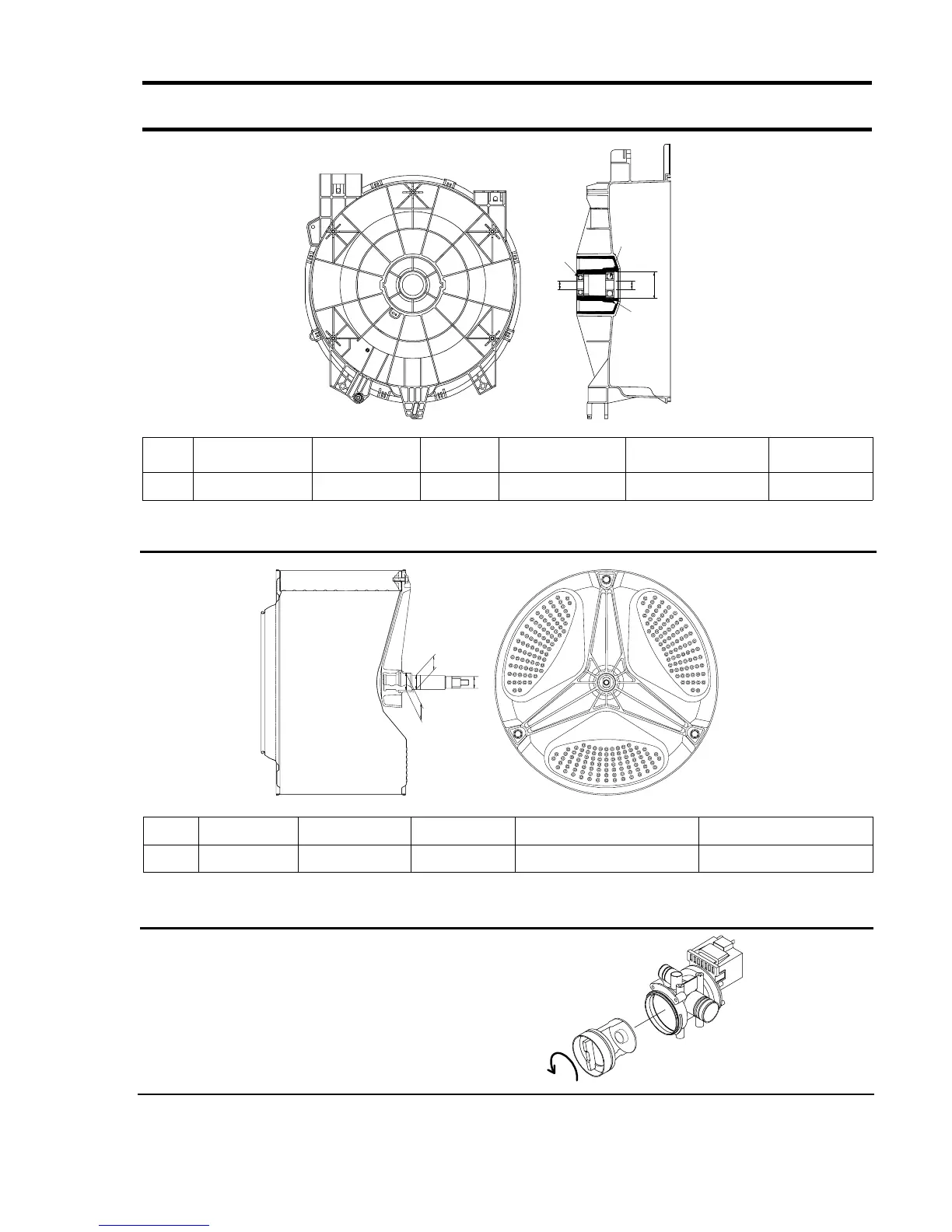

10-6 ASSY-TUB BACK
10-7 ASSY- DRUM
10-8 ASSY-PUMP DRAIN
1) Capacity : AC 230V 34W
2) Location : Front bottom(R)
3) Resistance : 15
Ω
~18
Ω
TYPE
(A) (B) (C) CODE-NO. REMARK
I ø20 ø17 ø25 DC97-02099D Lifter type
TYPE INNER-BEARING(A) OUT-BEARING(B) OIL-SEAL(C)
Assy-Housing
Bearing(D)
Assy-Tub Back REMARK
I ø20 ø17 ø24.3 DC97-02133A DC97-02137A
A
C
OIL-SEAL
INNER-BEARING
OUT-BEARING
B
(unit : mm)
A
C
B
(unit : mm)
