Samsung SC-D362 - Audio;Video Interface Block Diagram; Syscon;Servo Block Diagram

Block Diagrams
Samsung Electronics 7-7
This Document can not be used without Samsung’s authorization
LINE IN
EXT MIC
INT MIC
SPEAKER
LINE OUT
S-JACK
AV JACK
BU7807
(IC601)
AUDIO IF-IC
LA73076V
(IC301)
VIDEO IF-IC
DV1 CHIP
(GLOBALi)
IC201
TMP1962F10
(IC501)
MICOM

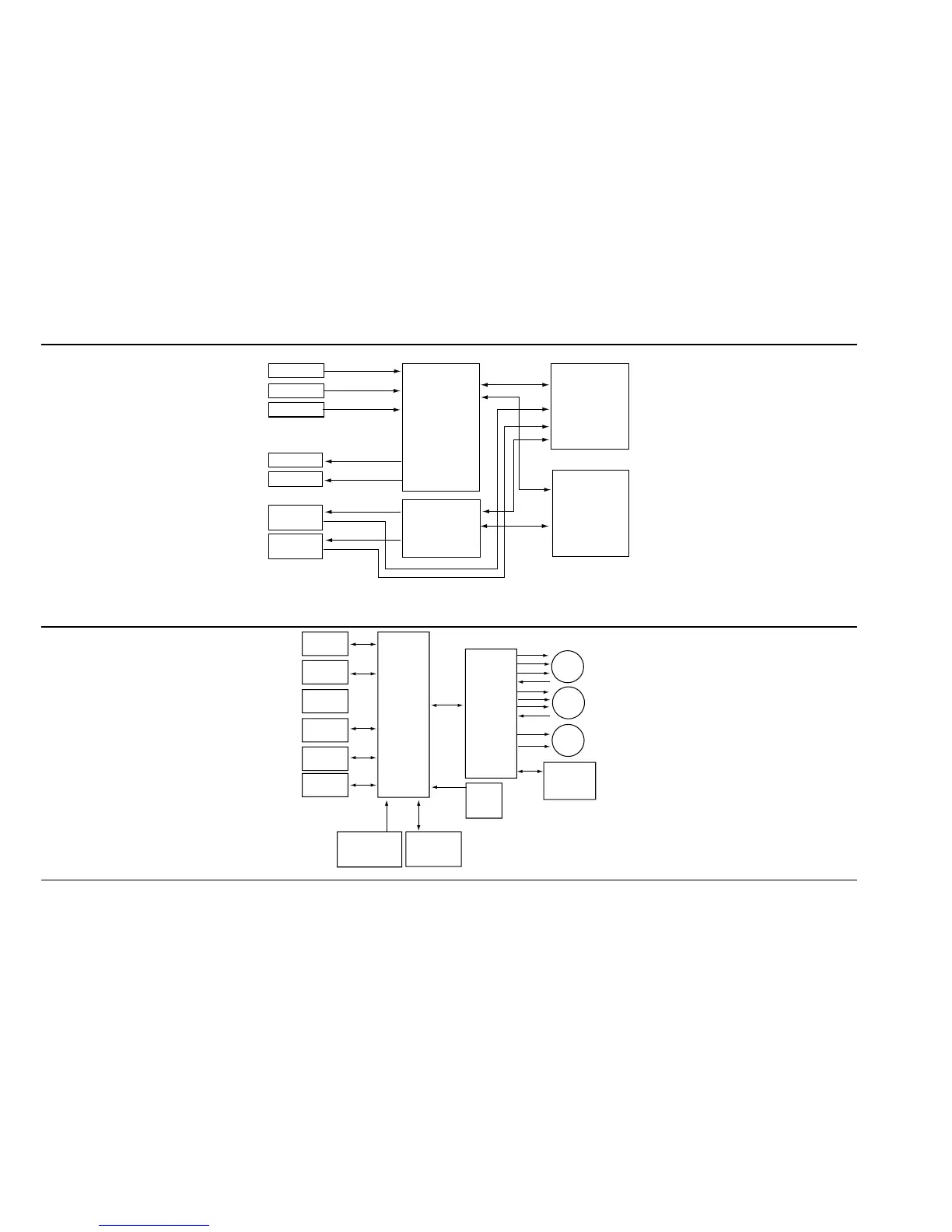

7-7 Audio/Video Interface Block Diagram
DCDC
BLOCK
PRML
BLCOK
PREAMP
BLOCK
DV1_CHIP
BLOCK
AV I/F
BLOCK
CAMERA
BLOCK
TMP1962F10
(IC501)
MICOM
LB11993W
(IC401)
MOTOR
DIRVER
DRUM
MOTOR
CAP
MOTOR
LOAGDING
MOTOR
T/S SENSOR
REEL SENSOR
MIC SENSOR
RS5C372A
(IC502)
RTC IC
EEPROM
524ABOX91
(IC505)
RESET-IC
XC6413FY01MR
(IC503)
7-8 Syscon/Servo Block Diagram
