Samsung Electronics5-26
Alignment and Adjustment

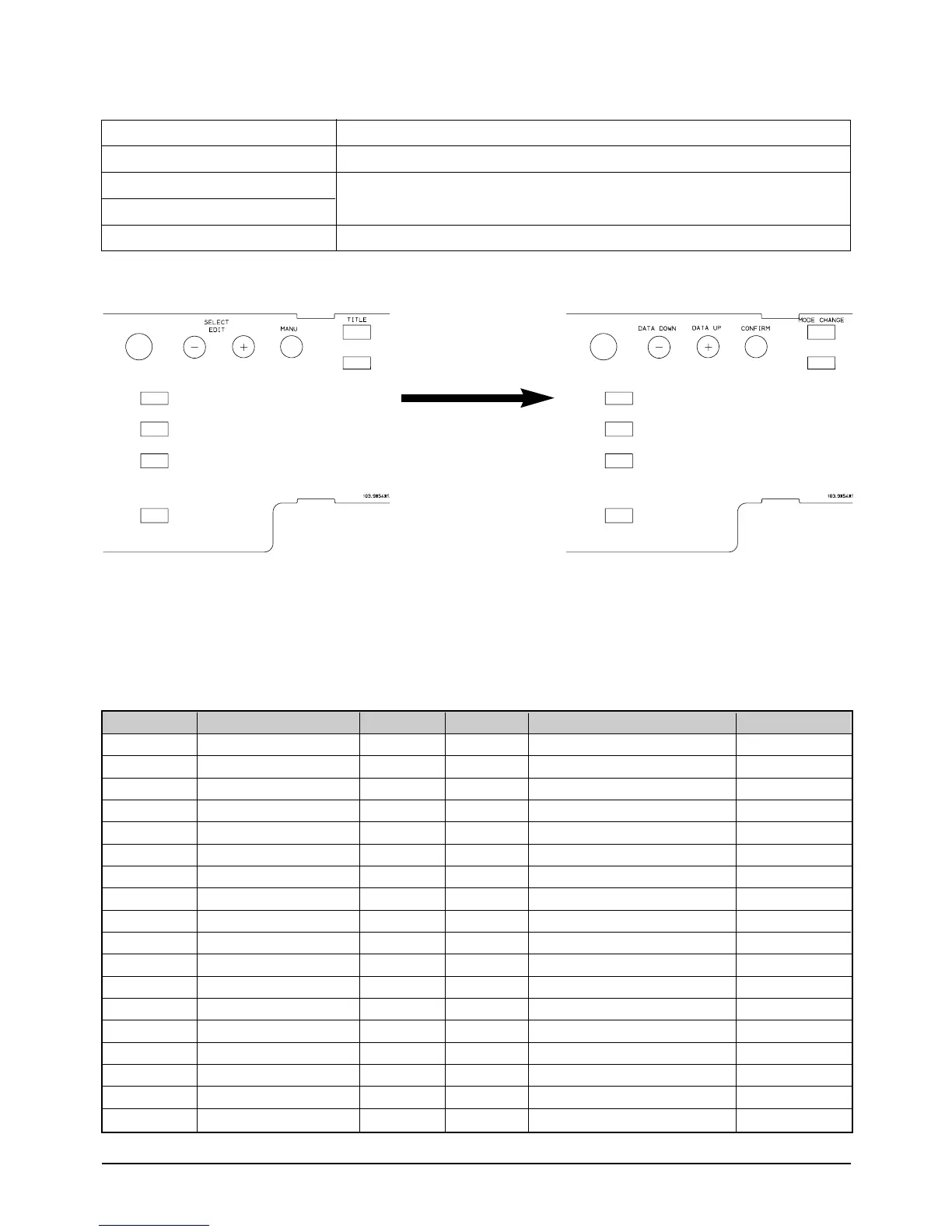

2. Unit Key Operation :
Remocon for camcorder operation For service adjustment
Reassignment
in the adjustment
mode
Using Button
TITLE (MODE CHANGE)
EDIT + (DATA UP)
EDIT – (DATA DOWN)
MENU (CONFIRM)
Adjustment
When changing the adjustment mode.
When changing data value of adjust state.
Data store after finishing adjustment by "DATA UP/DATA DOWN" button.
ADDRESS MODE EPR EVR MEAN REMARK
0A VCO XX XX VCO ADJUST
05 BRIGHT XX XX BRIGHT ADJUST
08 CONTRAST 96 96 CONTRAST FIXED
0B GAMMA 82 82 GAMMA FIXED
03 TINT XX XX TINT
ADJUST(PAL“00”FIXED)
04 COLOR XX XX COLOR ADJUST
07 R-SUB A7 A7 R-SUB BRIGHT FIXED
09 B-SUB A4 A4 B-SUB BRIGHT FIXED
06 COM XX XX V-COM ADJUST
0C LED CONT FF FF LED CONTROL TIME FIXED
0D BRIG MIN 01 01 BRIGHT MIN FIXED
0E BRIG MAX 01 01 MRIGHT MAX FIXED
0F COLOR MIN 06 (02) 06 (02) COLOR MIN FIXED
10 COLOR MAX 04 (02) 04 (02) COLOR MAX FIXED
11 TINT MIN 06 (00) 06 (00) TINT MIN FIXED
12 TINT MAX 04 (00) 04 (00) TINT MAX FIXED
13 CHECK 1 19 19 CHECK 1 FIXED
14 CHECK 2 20 20 CHECK 2 FIXED
Note :
In service adjustment mode, button names are different from those in customer LCD function control mode
EX: "MENU" button is the same as "CONFIRM".
3. Adjust mode table *( ) : PAL MODE DATA
