Samsung SCM52 - Disassembly and Reassembly

Samsung Electronics 3-1
3. Disassembly and Reassembly
3-1. Cabinet and PCB
3-1-1 Ass’y Cover Housing Removal
2
Remove the ass'y cover
housing in the direction
of arrow .
"A"
A
1
REMOVE 2 SCREWS.

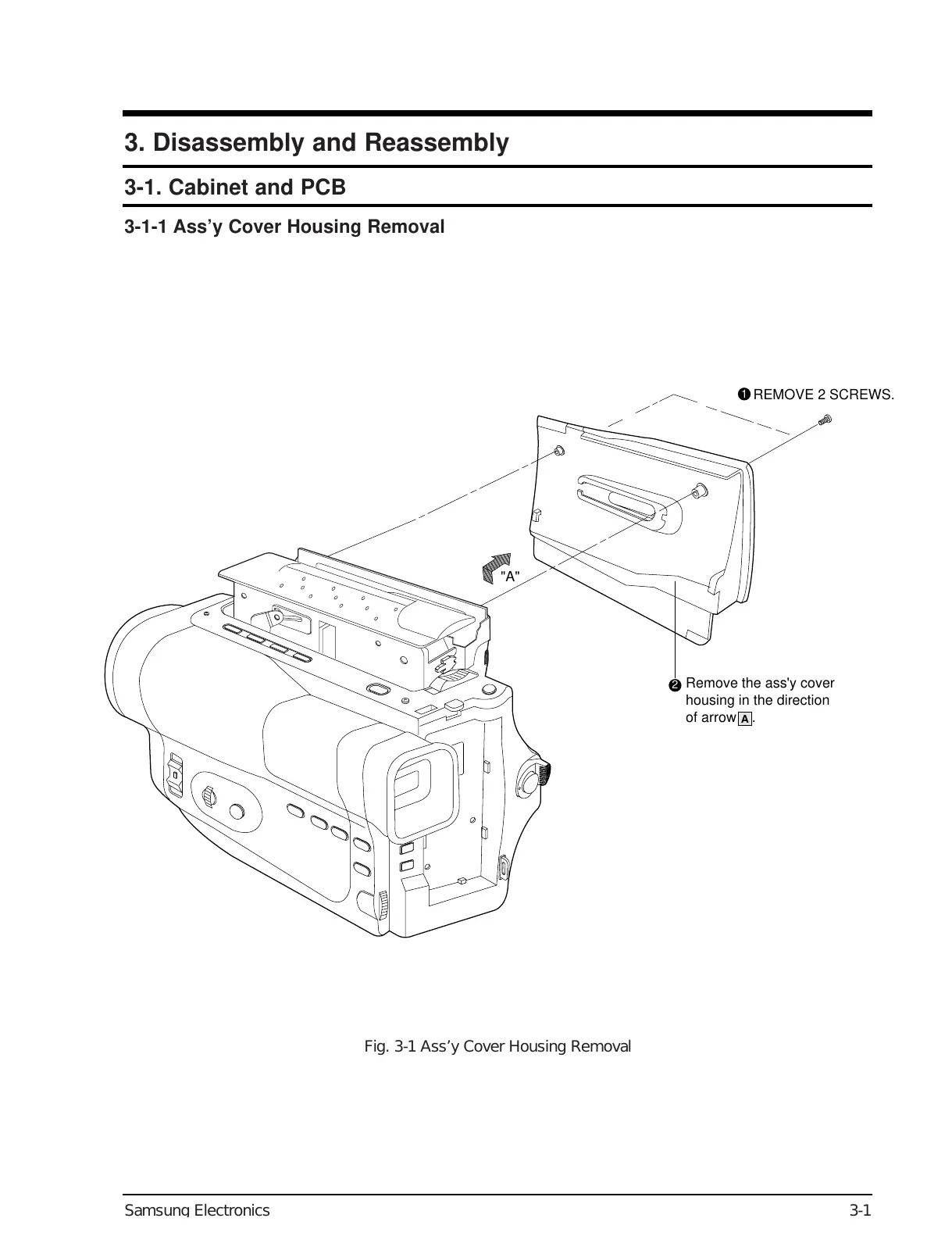

Fig. 3-1 Ass’y Cover Housing Removal
