Samsung SCX-4216F Series User Manual

3-20 Samsung Electronics
Disassembly and Reassembly

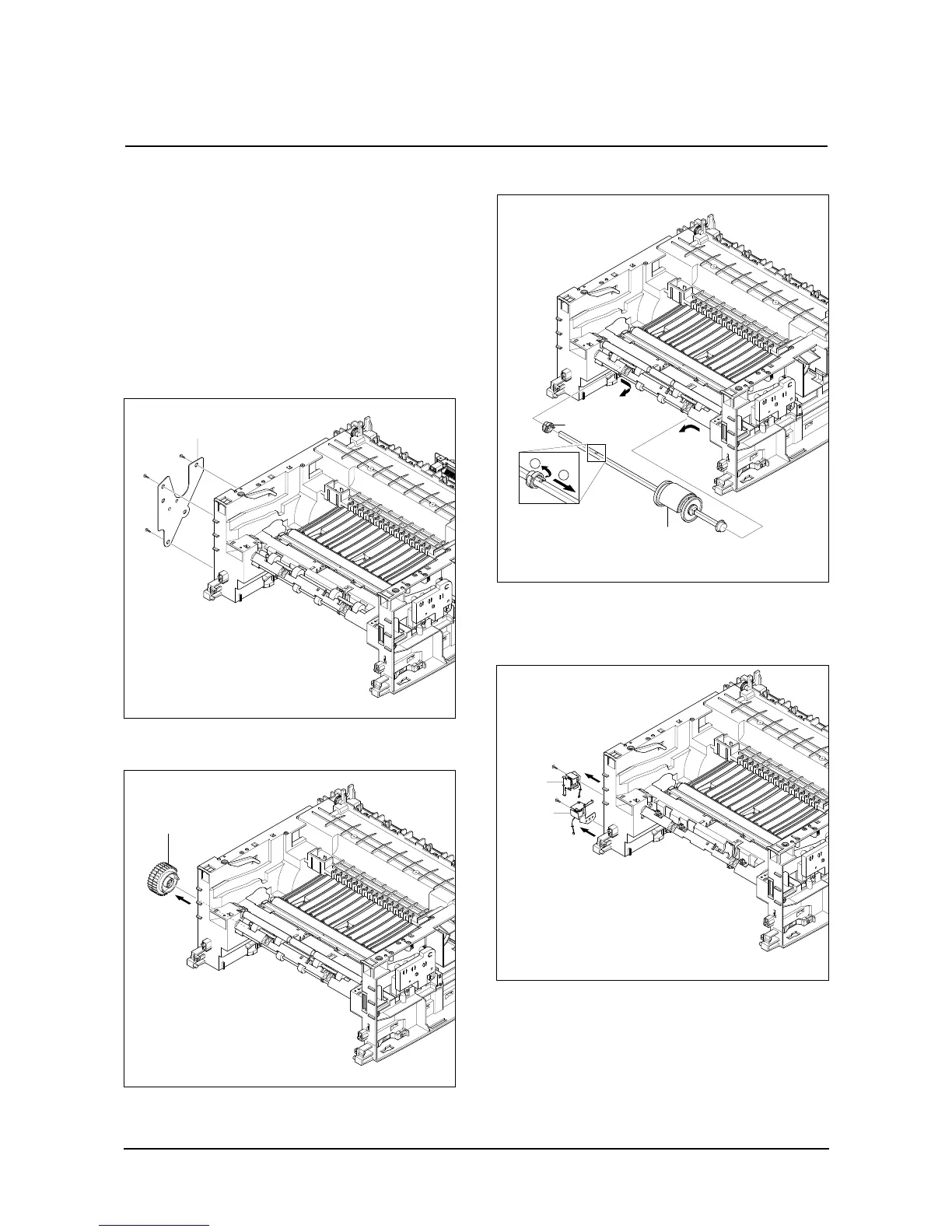

3-19 Pick up Ass'y & Solenoid
1. Before you remove the Pick up Ass'y, you should
remove:
- Rear Cover (see page 3-2)
- Engine Shield Ass,y (see page 3-3)
- Side Cover (LH, RH) (see page 3-6)
- Scanner Ass’y (see page 3-7)
- Front Cover (see page 3-14)
- Middle Cover (see page 3-15)
- Drive Ass’y (see page 3-16)
2. Remove the three screws securing the Feed Bracket
and remove it.
3. Remove the Pick up Gear Ass,y.
4. Take out the Pick up Ass'y, as shown below.
5. Remove the two screws securing the Manual
Solenoid and Pick up Solenoid. Then remove Manual
Solenoid and Pick up Solenoid.
Feed Bracket
Pick up Ass'y
1
2
Bush
Pick up Gear
Ass'y
(Pick up)
Solenoid
(Manual)
Solenoid

Samsung SCX-4216F Series Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Paper Input Capacity	250 sheets
Memory	8 MB
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	4800 x 4800 dpi (enhanced)
Connectivity	USB
