Samsung SCX-4216F Series User Manual

5-17
Exploded Views and Parts List

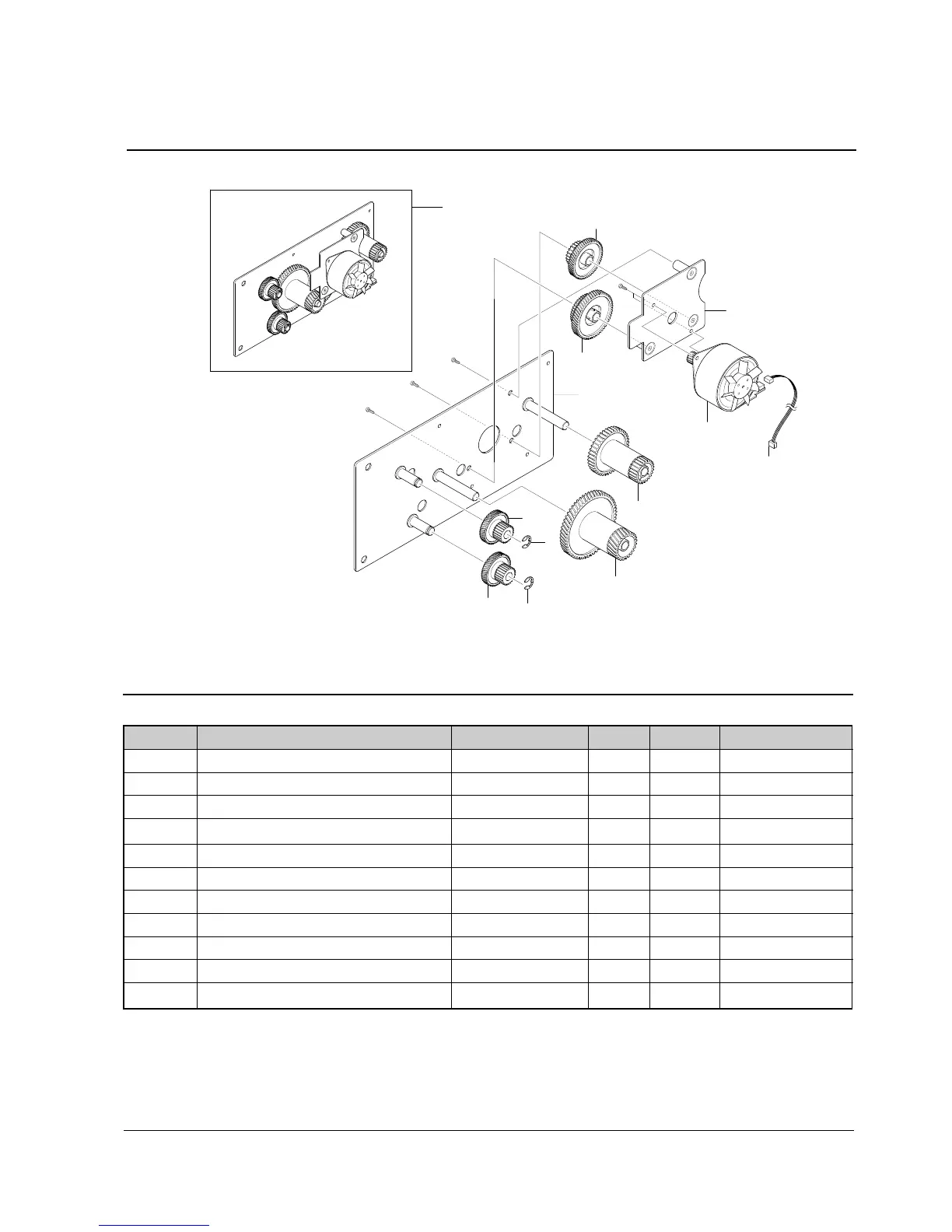

5-7 RX Drive Ass’y Exploded view
0
1
2
3
4
4
5
6
7
8
9
HARNESS-MOTOR
5
< RX Drive Ass’y Parts List >
SA. : Service Available
NO DESCRIPTION SEC CODE Q’TY SA REMARK
0 ELA HOU-RX DRIVE 1400 JC96-02733A 1 O
1 BRACKET-GEAR 1400 JC61-00598A 1 X
2 GEAR-FUSER DRV JC66-00388A 1 X
3 GEAR-RDCN Z132/19 JC66-00391A 1 X
4 GEAR-PICK_UP DRV JC66-00389A 2 X
5 RING-E 6044-000231 2 X
6 BRACKET-MOTOR 1400 JC61-00599A 1 X
7 GEAR-RDCN Z7128 JC66-00390A 1 O
8 GEAR-RDCN Z7322 JC66-00392A 1 O
9 MOTOR STEP-7.5 JC31-00028A 1 O
O: Service available X: Service not available

Samsung SCX-4216F Series Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Paper Input Capacity	250 sheets
Memory	8 MB
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	4800 x 4800 dpi (enhanced)
Connectivity	USB
