SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-3
This Document can not be used without Samsung's authorization

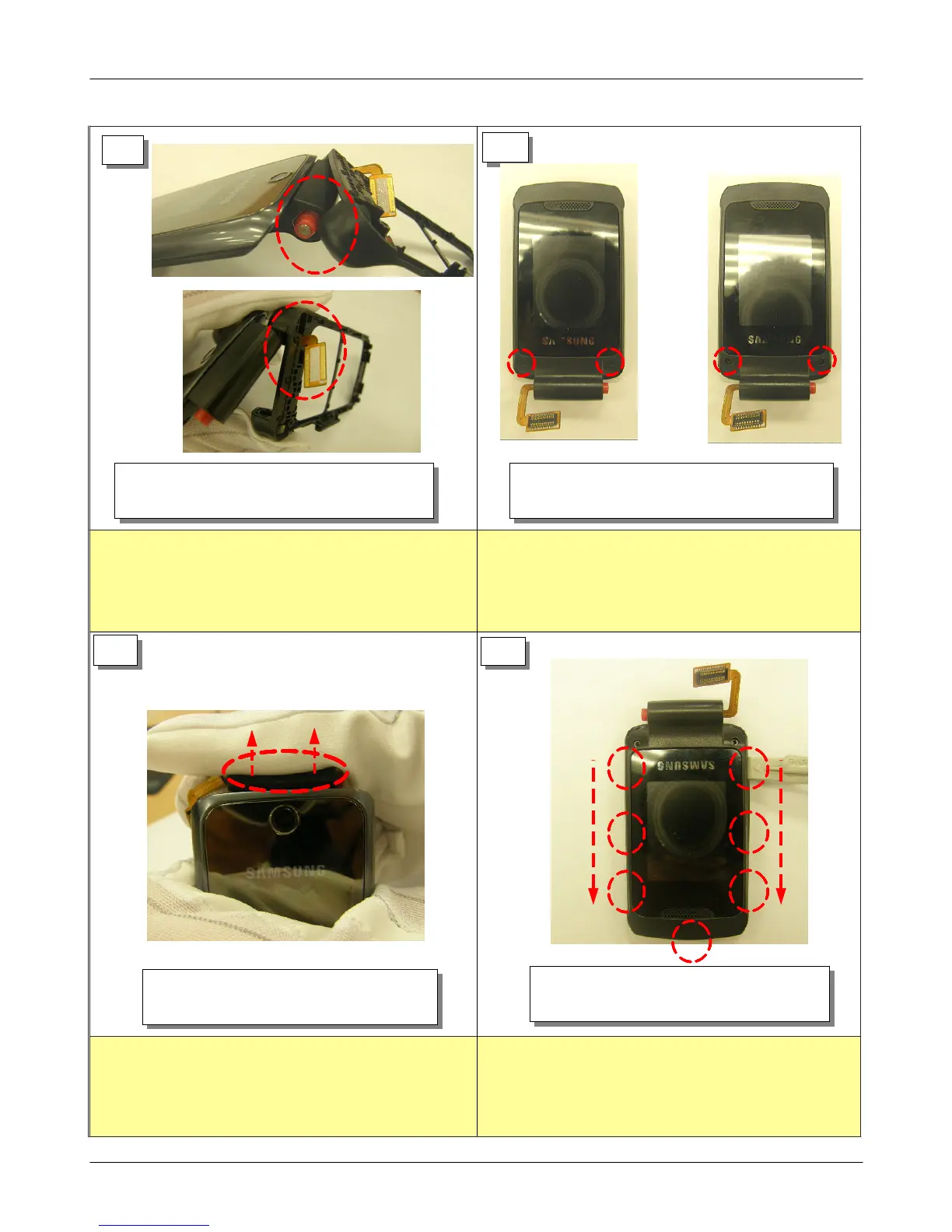

9
1) When disjoint Front, disjoint CON TO CON
part after disjoint HINGE part.
10
1) Remove SCREW CAP using tweezers.(2POINT)
2) Release SCREW.
11
12
1) Push to back HINGE part of folder,
disjoints top portion of HOOK.
1) Release UPPER and LOWER's LOCKER
portion using plastic dissolution jig.
1) Be carefel LCD CON TO CON damage. 1) Be careful not to make scratch and LOCKER damage!
1) Be careful LOWER plastic damage. 1) Be careful not to make scratch and LOCKER damage!
To Next Page
