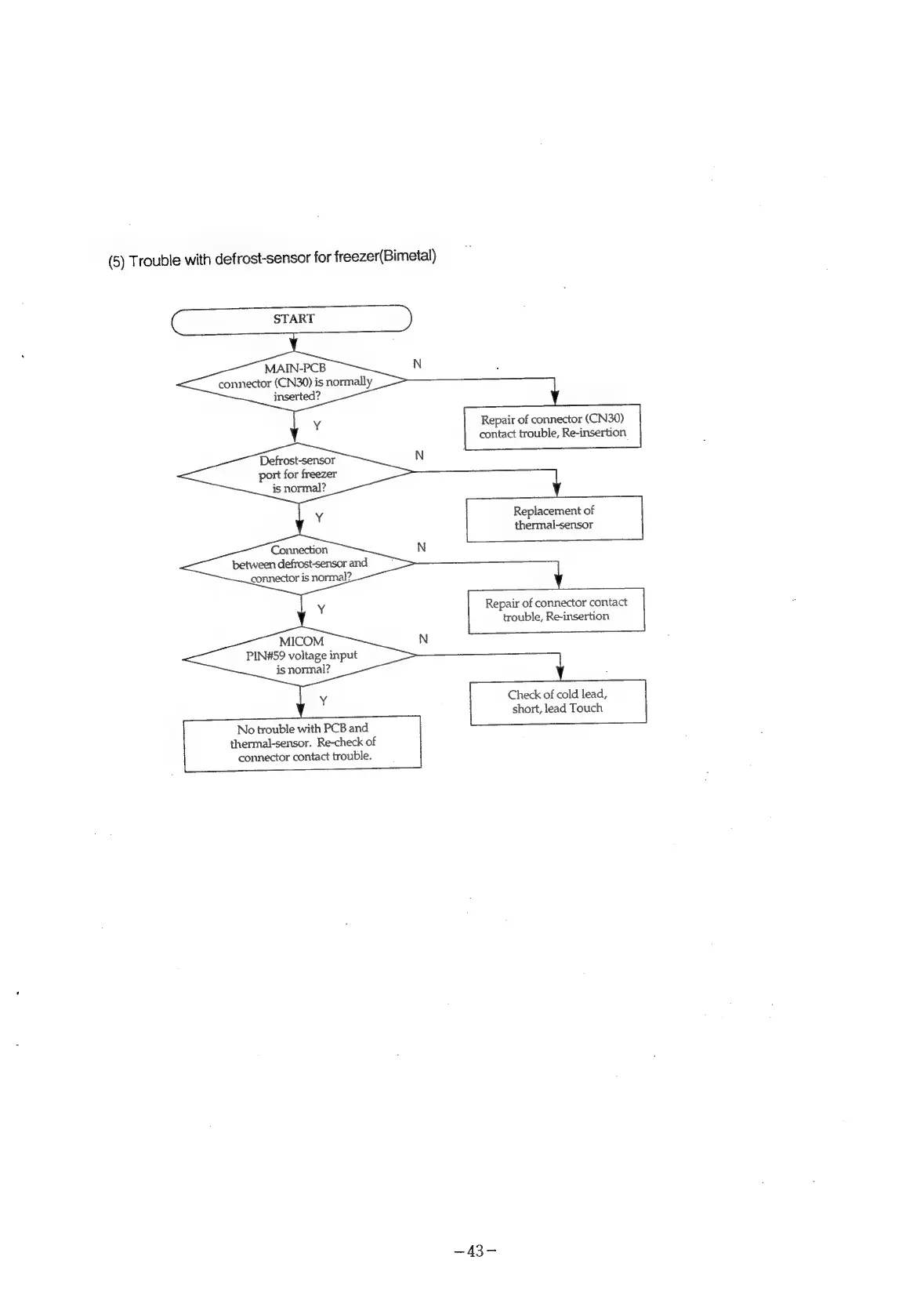

(5)
Trouble
with
defrost-sensor
for
freezer(Bimetal)
connector
(CN30)
is
normally
Repair of connector (CN30)
contact trouble, Re-insertion
Replacement of
thermal-sensor
Repair of connector contact
trouble, Re-insertion
Check of cold lead,
short, lead Touch
Defrost-sensor
port for freezer
is normal?
Connection
between defrost-sensor and
connector is normal?
MICOM
PIN#59 voltage input
is normal?
No trouble with PCB and
thermal-sensor. Re-check of
connector contact trouble.
—43-
