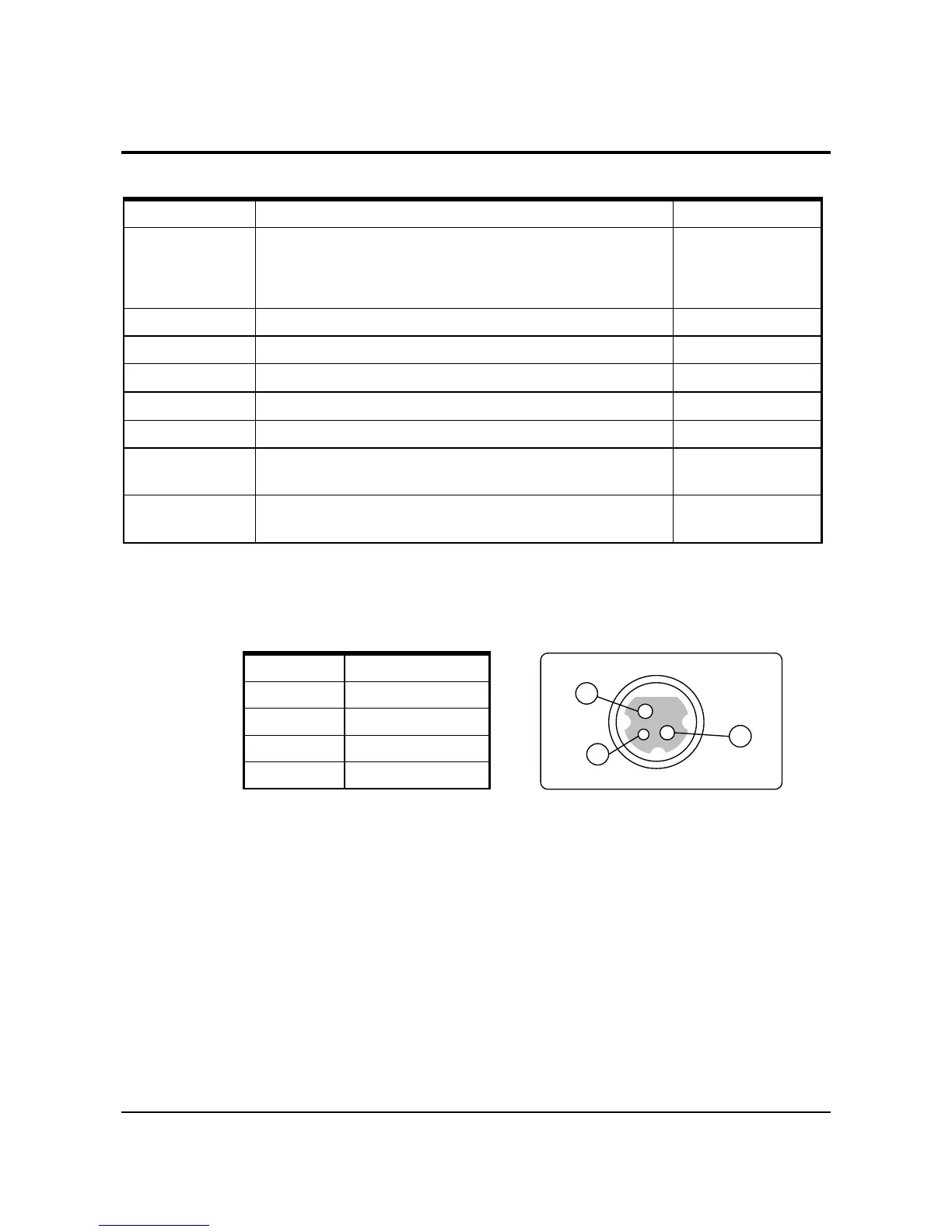

2 Product Specifications
2-8
2-4 SMPS Specifications
2-4-1 SMPS (Switching Mode Power Supply) Specification
Item Description Remark
Input Voltage
• Typical : 120V / 230V AC
• Min : 90V AC
• Max : 264V AC
Input Current
• Max : 1.5 A(When 120V), 0.75A(When 230V)
In rush Current
• Max : 40 A (Peak to Peak)
Line Regulation • +24V  1 %
Load Regulation • +24V  5 %
Ripple Noise
• Peak 300mV
O.C.P (Over Current
Protect)
• 3.0 A ~ 6.0 A
S.C.P (Short
Current Protect)
• Fold-Back Method
Table 2-9 Power Adapter(SMPS) Specification
2-4-2 SMPS Output Connector
Pin Number Signal Name
1 +24 VDC
2GND
3N.C
Shield Frame GND
Table 2-10 Power Connector Pin Description Figure 2-5 Power Connector
1
2
3
