17

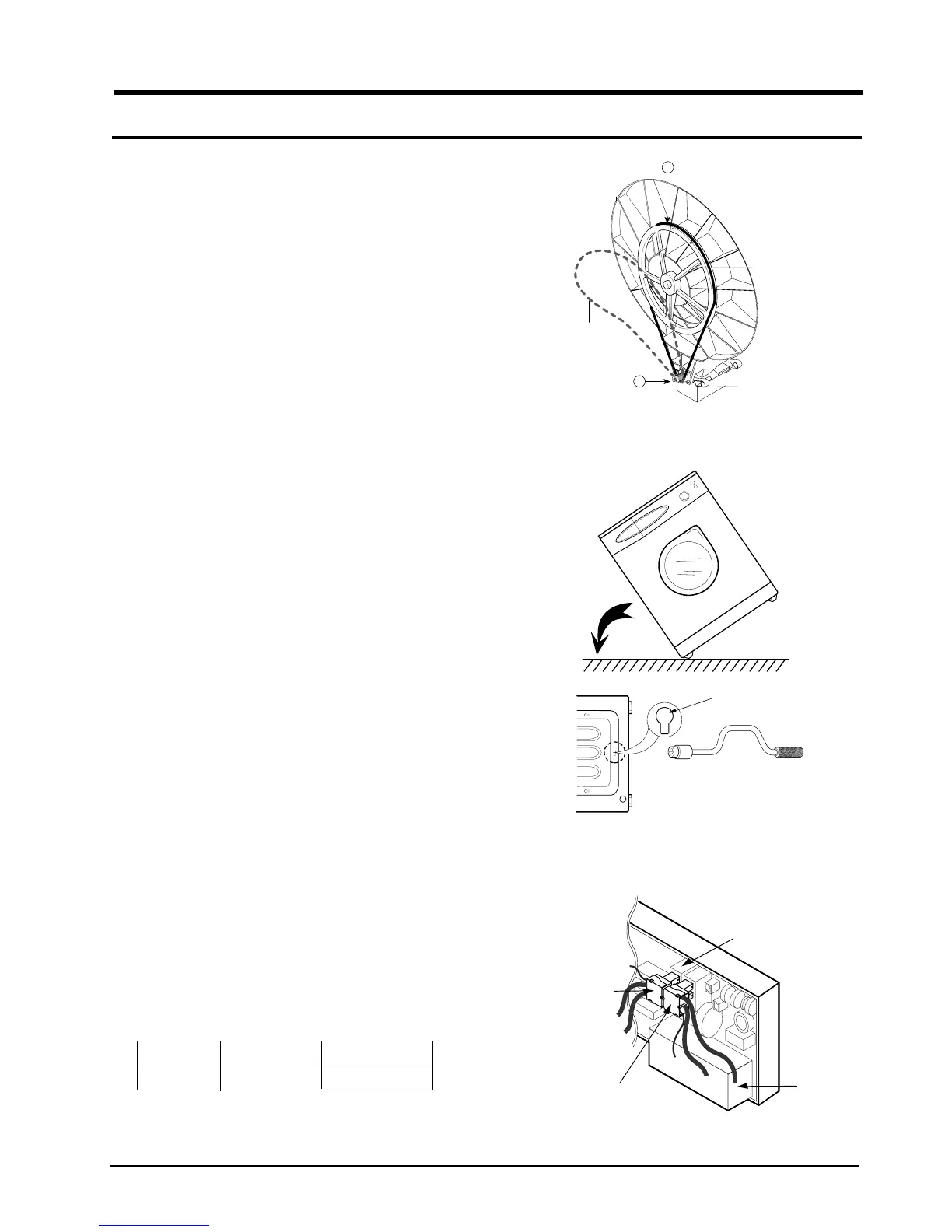

9. Assemble and Disassemble
3. BELT
1) Remove the top-cover.
2) Disassemble and assemble the belt.
3) Check the belt is located at center of the motor-pulley.
<When assemble the belt>
Hook the belt on the motor pulley 1) and place it
around the pulley 2).
4. MOTOR
1) Lay down the washer on left side.
2) Remove the wire housing from the motor.
3) Remove the bolt fixing the motor with the box
drive on back side.
4) Remove the motor.
5. How to Assemble the RELAY Housing.
<CAUTION>
Insert the Relay Housing to the Relays on the
opposite direation each other.
To Next Page
