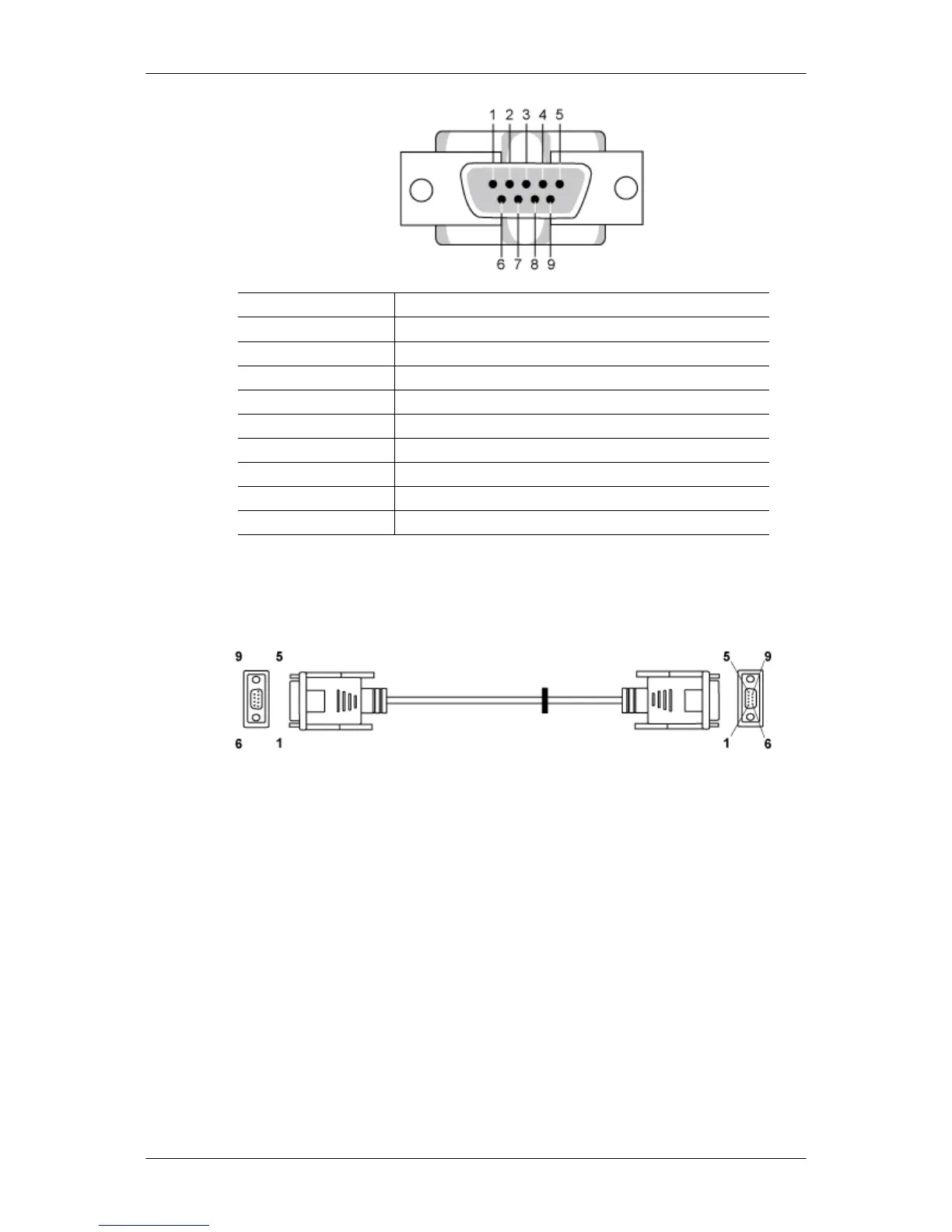

Pin Signal
1 Data Carrier Detect
2 Received Data
3 Transmitted Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request to Send
8 Clear to Send
9 Ring Indicator
• RS232C cable
Connector : 9-pin D-Sub
-P1- -P1- -P2- -P2-
FEMALE Rx
Tx
Gnd
2
3
5
-------->
<--------
---------
3
2
5 Gnd
FEMALE
• Connecting method
Introduction
Cable : Cross cable
Tx
Rx
