English - 7
02 TV Installation

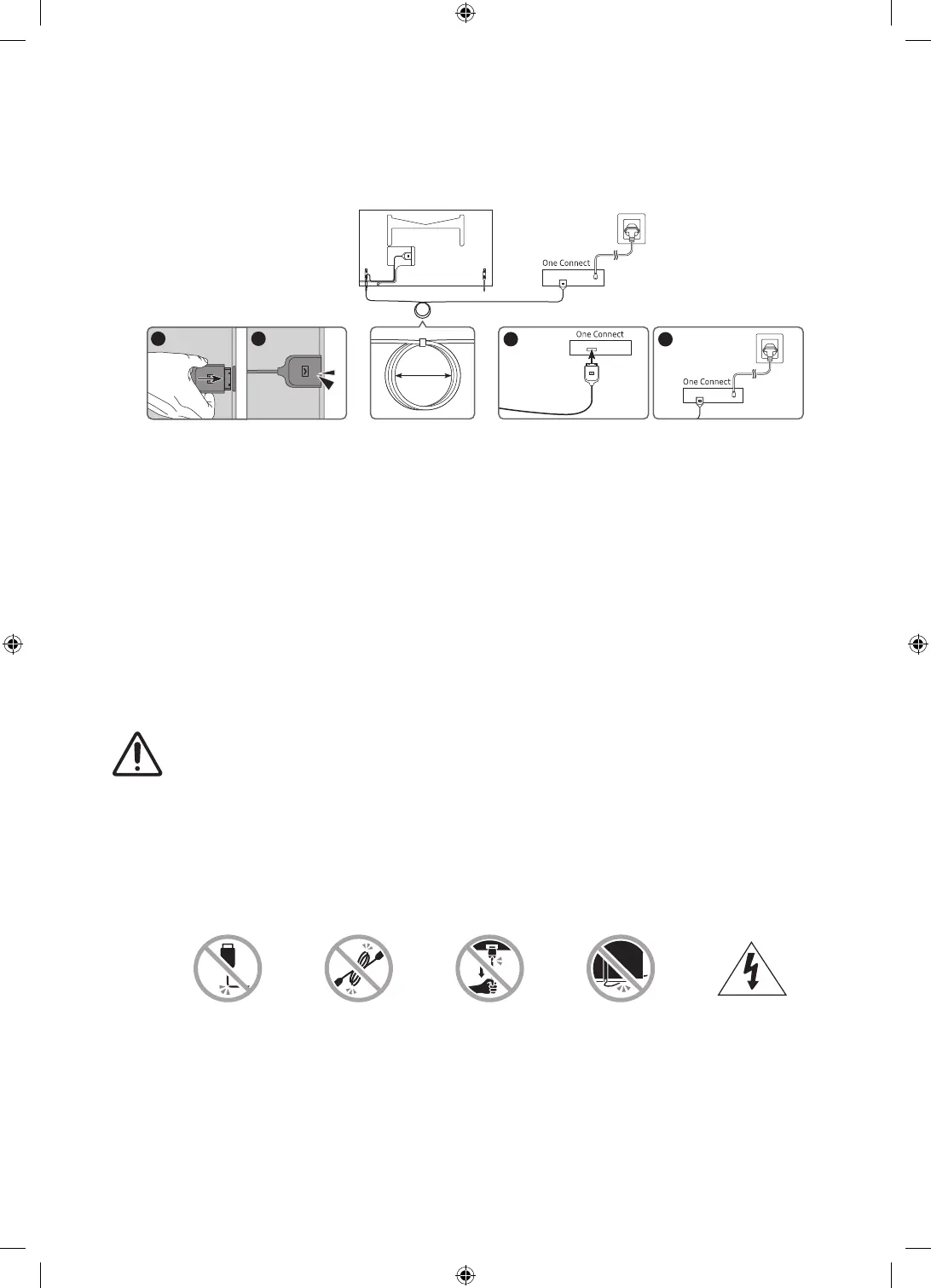

One Connect Cable Guide
4
3
1 2
10 cm
TV
One Connect
To connect the One Connect Cable to the One Connect and your TV, follow these steps:
1. After the TV is completely set up and placed in its final position, connect the One Connect Cable to the One
Connect and the TV as shown in Steps 1 to 3 above.
WARNING: Make sure that both connectors are fully and firmly connected. If either connecter is not connected
properly, there is a danger of severe electric shock.
2. Connect the One Connect AC power cord to the One Connect, and then connect the cord to a wall outlet as shown
in Step 4 above.
WARNING: Follow the directions exactly. Be sure to connect the power cord to the wall outlet as the last step.
Always disconnect the power cord from the wall outlet before disconnecting the One Connect Cable from the back
of the TV or from the One Connect.
– See the illustrated Quick Setup Guide for more information.
3. Connect your peripherals (cable box, Blu-ray player, etc.) to the One Connect. See the Accessory Kit for details.
Do not install the One Connect upside-down or standing upright on one of its sides.
When connecting the One Connect Cable, pay attention to the shapes and sizes of its connectors so that
they are connected correctly. Failure to do so may cause product malfunction.
When connecting the One Connect Cable, be careful not to twist the cable of the One Connect Cable.
Failure to do so may cause performance degradation of the TV or damage to the cable.
When arranging the remaining cable, refer to the figure above for the correct arrangement.
Take care not to subject the cable to any of the actions below. The One Connect Cable contains a power
circuit. You could damage the cable and subject yourself to an electric shock.
Handle the One Connect carefully. It is heavy.
Bending Twisting Pulling Pressing on Electric shock
