Connecting to MDC

Using MDC via RS-232C (serial data communications standards)

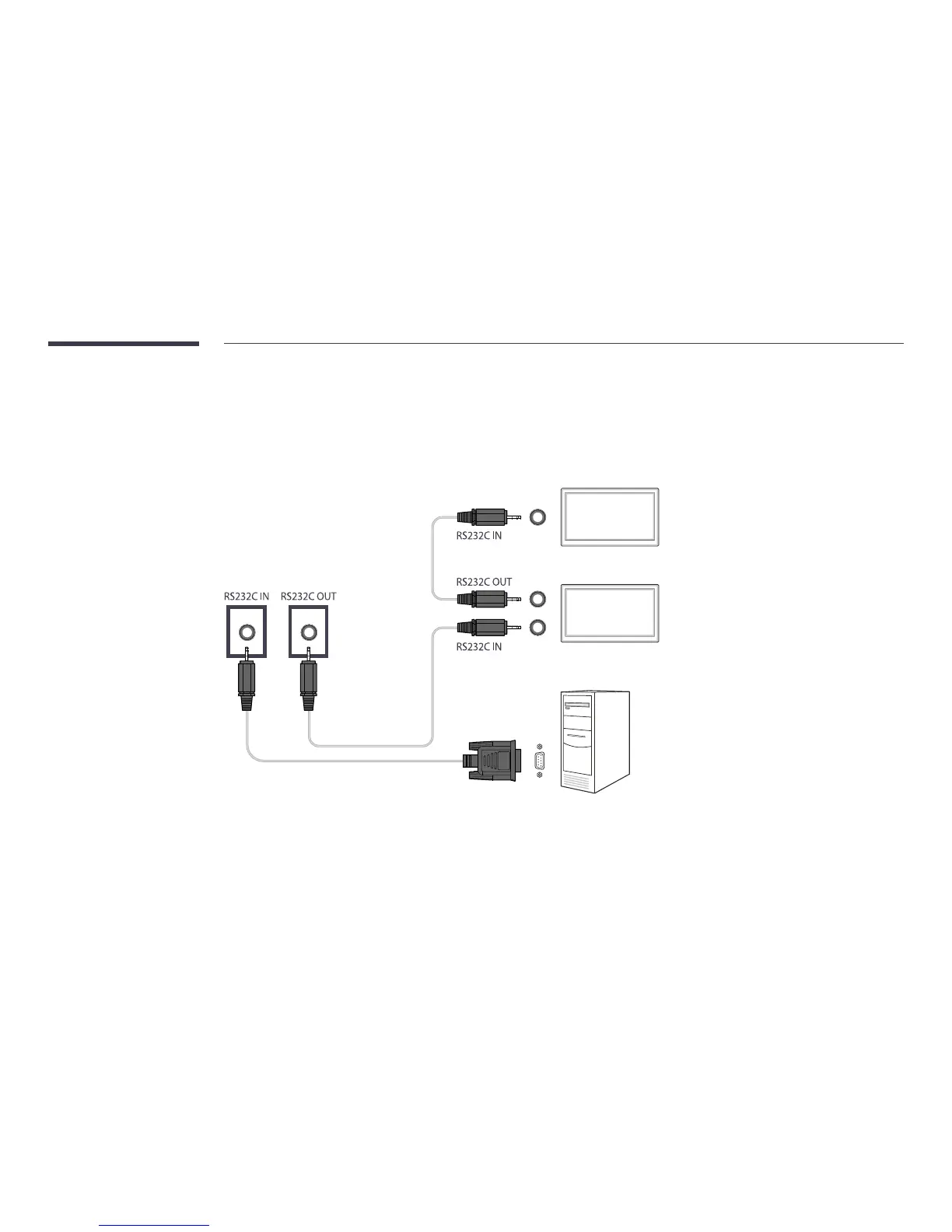

An RS-232C serial cable must be connected to the serial ports on the PC and monitor.

Monitor 1

Monitor 2

Computer
