Samsung UN40J5200AF User Manual

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
WARNING
For continued safety, do not attempt to modify the circuit board.
Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

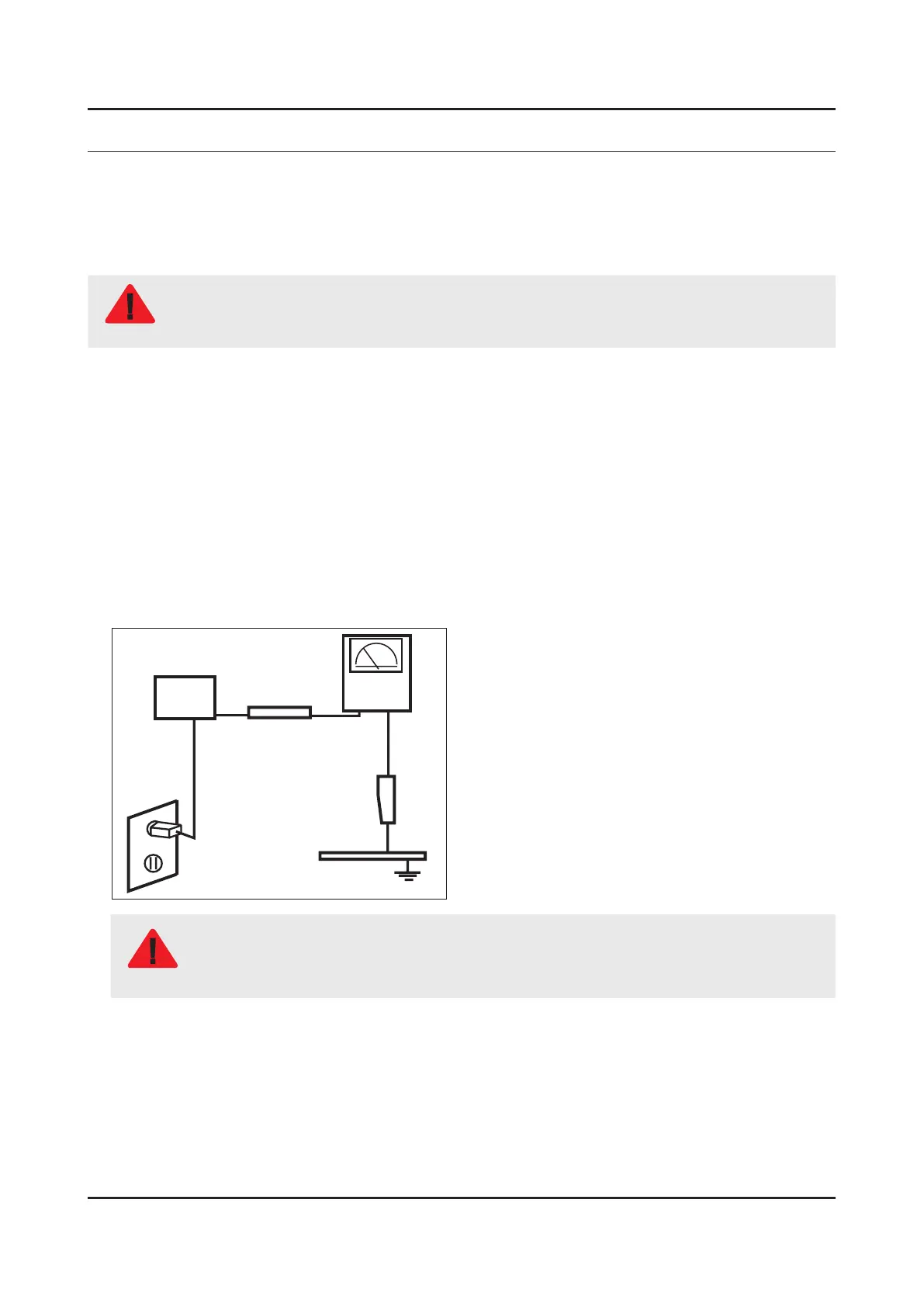

Leakage Current Hot Check:3.
DEVICE
UNDER
TEST
(READING SHOULD)
NOT BE ABOVE 0.5mA
LEAKAGE
CURRENT
TESTER
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
WARNING
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1. Precautions
1. Precautions
1-1. Safety Precautions

Samsung UN40J5200AF Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	40 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	-
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	Motion Rate 60
Tuner type	Digital
Digital signal format system	ATSC
Audio decoders	Dolby Digital, DTS, Dolby MS10, DTS Premium Sound 5.1, DTS Studio Sound
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	No
DVI-D ports quantity	0
USB 2.0 ports quantity	1
On Screen Display (OSD) languages	ENG, ESP, FRE
Picture processing technology	Samsung Wide Color Enhancer
Product color	Black
Panel mounting interface	200 x 200 mm
AC input voltage	110 - 120 V
AC input frequency	60 Hz
Power consumption (max)	85 W
Power consumption (standby)	0.3 W
Power consumption (typical)	50 W
Package depth	142.24 mm
Package width	1150.62 mm
Package height	619.76 mm
Package weight	9480 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	287.02 mm
Height (with stand)	589.28 mm
Weight (with stand)	7393 g
Depth (without stand)	58.42 mm
Width (without stand)	922.02 mm
Height (without stand)	523.24 mm
Weight (without stand)	6395 g
