Samsung US24A2RCD - PCB Box

28

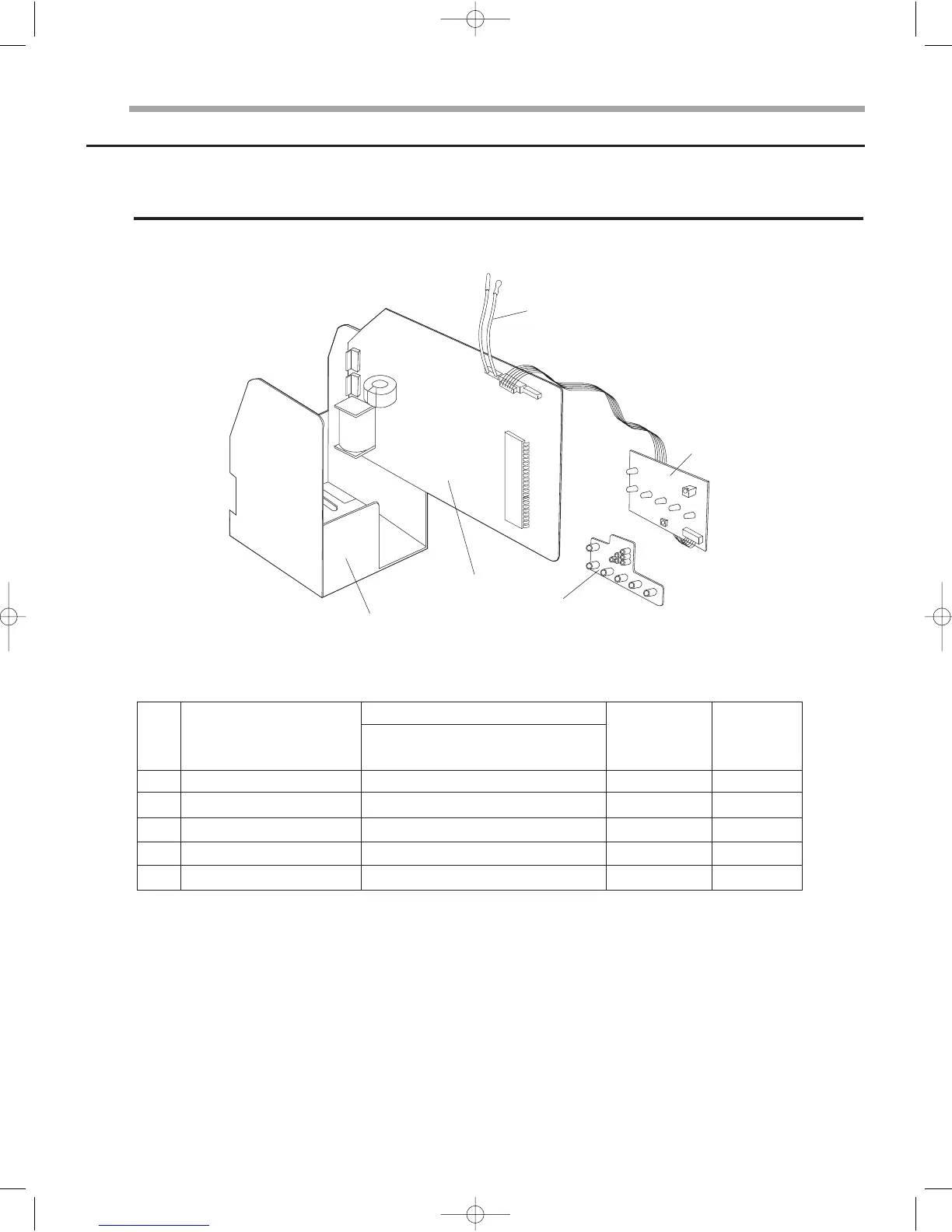

Assembly drawing and part’s list (Continued)
ΙΙΛΛ
■
Part’s List
4
1
2
5
3
3 PCB Box
No.
1
2
3
4
5
Description
ASS’Y MAIN PCB
ASS’Y THERMISTOR
ASS’Y PCB DISPLAY
CASE CONTROL
COVER DISPLAY
Specification
AS18A9(0)RCF / AS18A9(0)RCFD
AS24A1(2)RC / AS24A1(2)RCD
103AT / DKS-103FW
ASS’Y
ABS
ABS
DB93-01985A
Q’TY
1
1
1
1
1
Remark
AS18A9(0)RCF SM_E_15775 3/10/05 7:15 PM Page 28
