Samsung VM55B-E - RS232 C Connection Configurations

31
Connection
―
Ensure you connect each of the adapters to the correct RS232C IN or OUT port on the
product.

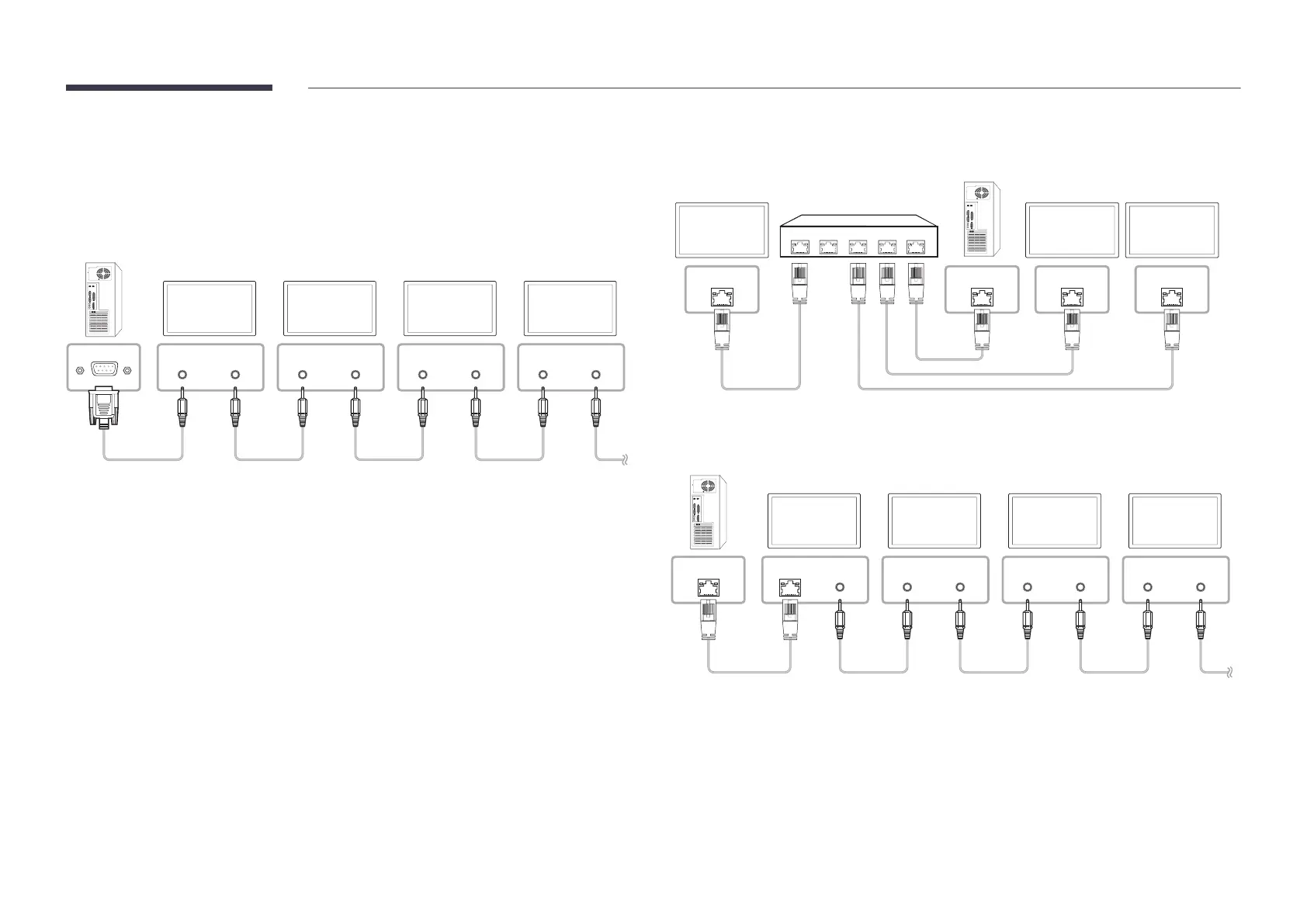

• Connection 1
RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
• Connection 2
RJ45RJ45 RJ45 RJ45
5 4 3 2 1
Monitor 2Monitor 1
PC
Monitor 3
• Connection 3
RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUTRJ45RJ45
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
