Installing the WindFree 1-Way Cassette Panel
2
English
If the WindFree function is not visible on the
upper-level controller after connecting the
WindFree panel:
• Check if the software of the upper-level controller
is the latest version.
• If the software is not the latest version, update to
the latest version.
• If the software of the upper-level controller is the
latest version but the WindFree function is not
visible on it, perform tracking again on the upper-
level controller or reset its power.
※ Upper-level controller: DMS, Touch Centralized
Controller or another device
Accessories
Item M4ⅹ25 screw
User & Installation
manual (1)
Shape
PC1MWFMANW : (5)
PC1NWFMANW : (6)
PC1BWFMANW : (7)
Item Screw
Tightening torque
(N·m)
Shape M4 L 25 mm 1.2~1.8 (N·m)
(1 N·m = 10 kgf·cm)
CAUTION
• After installing the product, explain to the user
how to use the air conditioner.

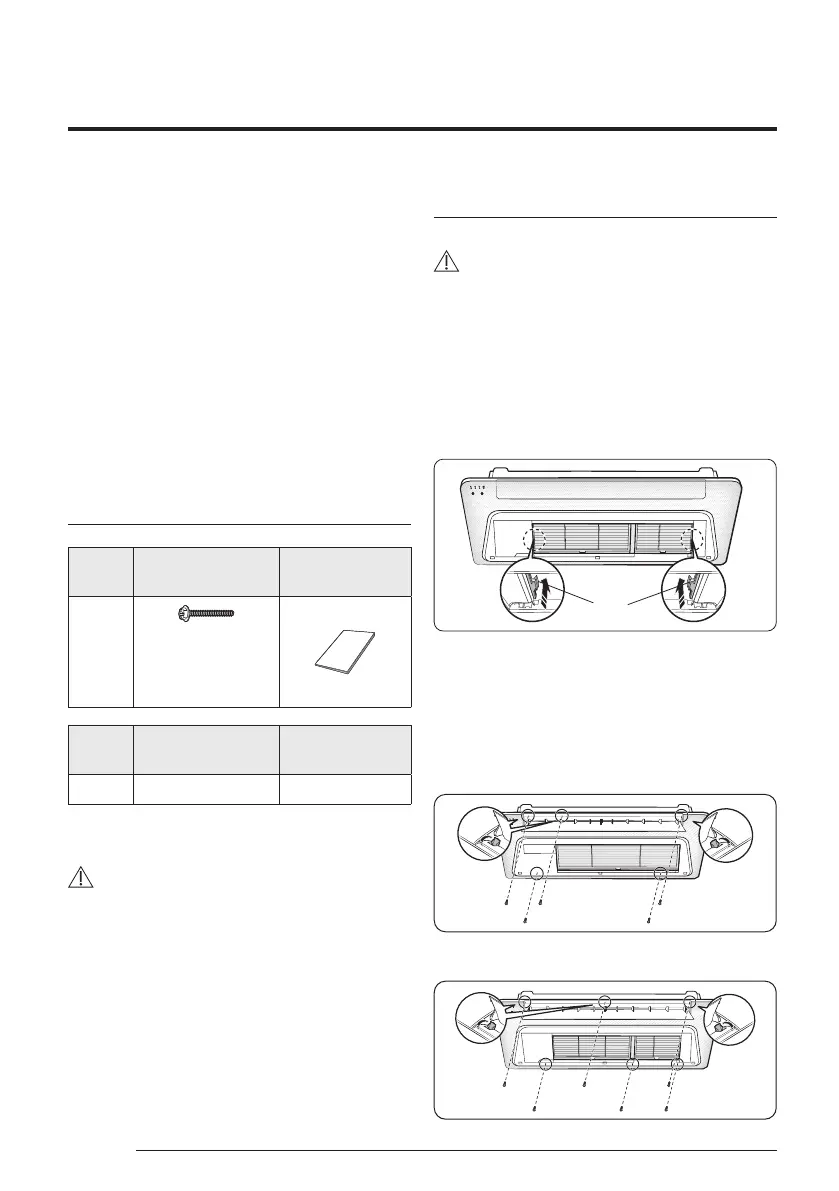

Installing the panel
CAUTION
• Handle the panel carefully.
• Do not lean the panel against a wall or place it on
a protruding object.
Failing to do so may damage the surface of the panel.
• Be careful when installing the air inlet panel by
hand. You may get hurt.
1 Fix the panel by engaging the latches at both sides
onto the grooves on both sides of the indoor unit.
Latch
2 Open the screw cover on the air outlet, insert and
fasten the panel fixing screws. If the screws are
not fastened completely, it may produce a gap
between the indoor unit and the panel, resulting
in condensation.
PC1MWFMANW
PC1NWFMANW
Installing the WindFree 1-Way Cassette Panel
Installation
