3.2.4 The 3
rd
FIX Operations screen
▶ This screen is for viewing and recording data by trend graph.
▶ You can set items to display data by trend graph among 6 parameters – SP, PV, MV of temperature
and humidity – shown at the left hand side of this screen by using each check box (
).
▶ Press the
(RECORD) button on the right hand side to store the recording data in the internal
memory.
▶ All data saved in internal memory will be wiped out by POWER OFF.
☞ Store all important recorded data to SD card before POWER OFF
☞ Refer to [6.2 TREND GRAPH view & DATA processing].
※ While the data is recording into internal memory, that can not be downloaded to SD card.
① Displays the PV, SP, MV of temperature and humidity and its check box button.
② Displays available internal memory volume.
☞ About 25days can be saving on 1 second of sampling time.
③ Button to start recording data selected by check box on the internal memory.
④ Clear button to wipe out all data stored to internal memory.

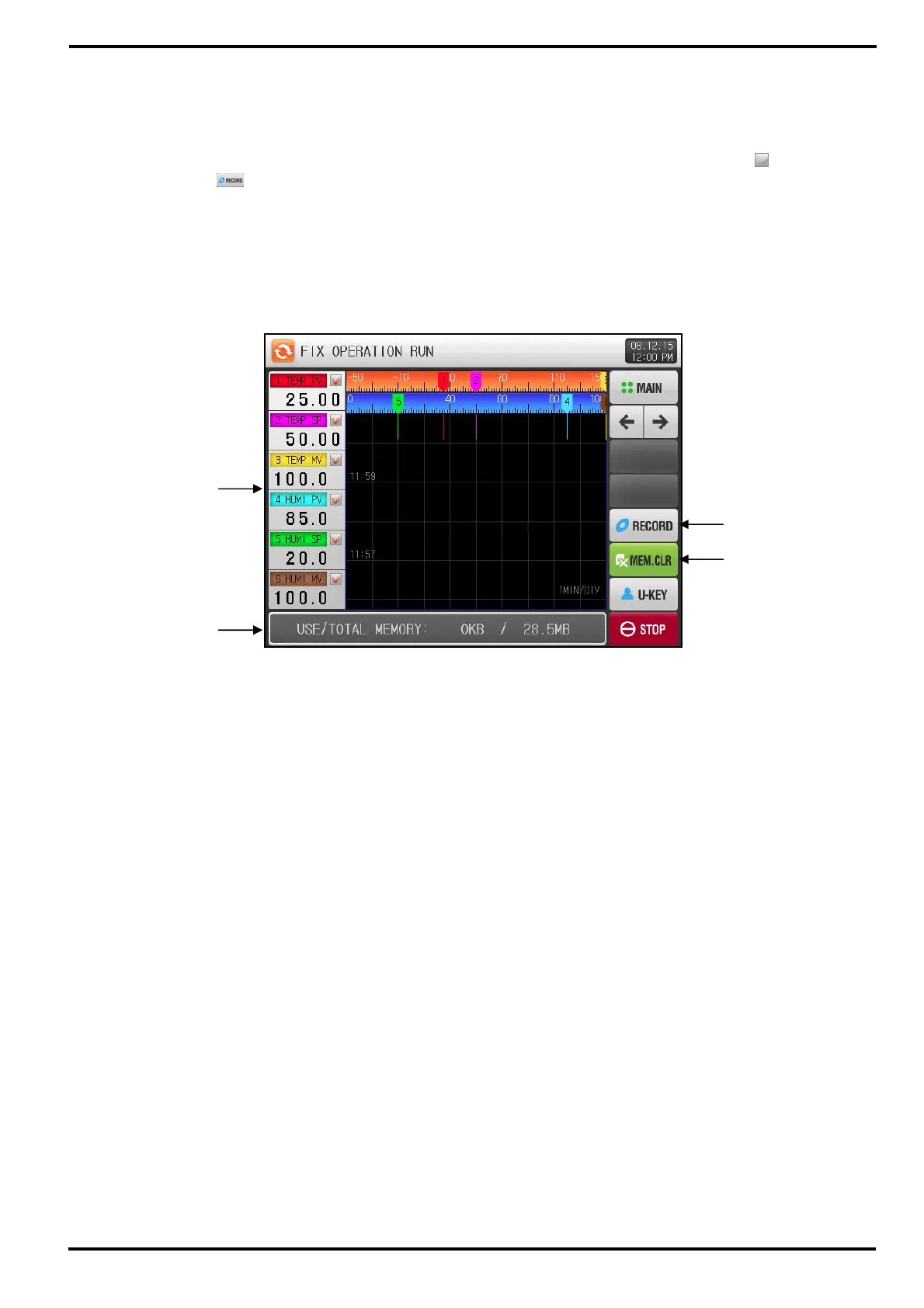

[Figure 3-7] The 3
rd
FIX RUN Screen
②
①
④
③
