V21 Parts & Service Manual
All V21 Identified Equipment
REV A – 10/2013
P/N: 1230247
V21 General Information | G-6
LABEL INSTALLATION TRADE
COIN INSTRUCTION LABEL & PRICE LABEL APPLICATION:
Apply labels to a clean and dry surface. Peel backing from label and apply with firm, even
pressure.
INSTRUCTION LABEL

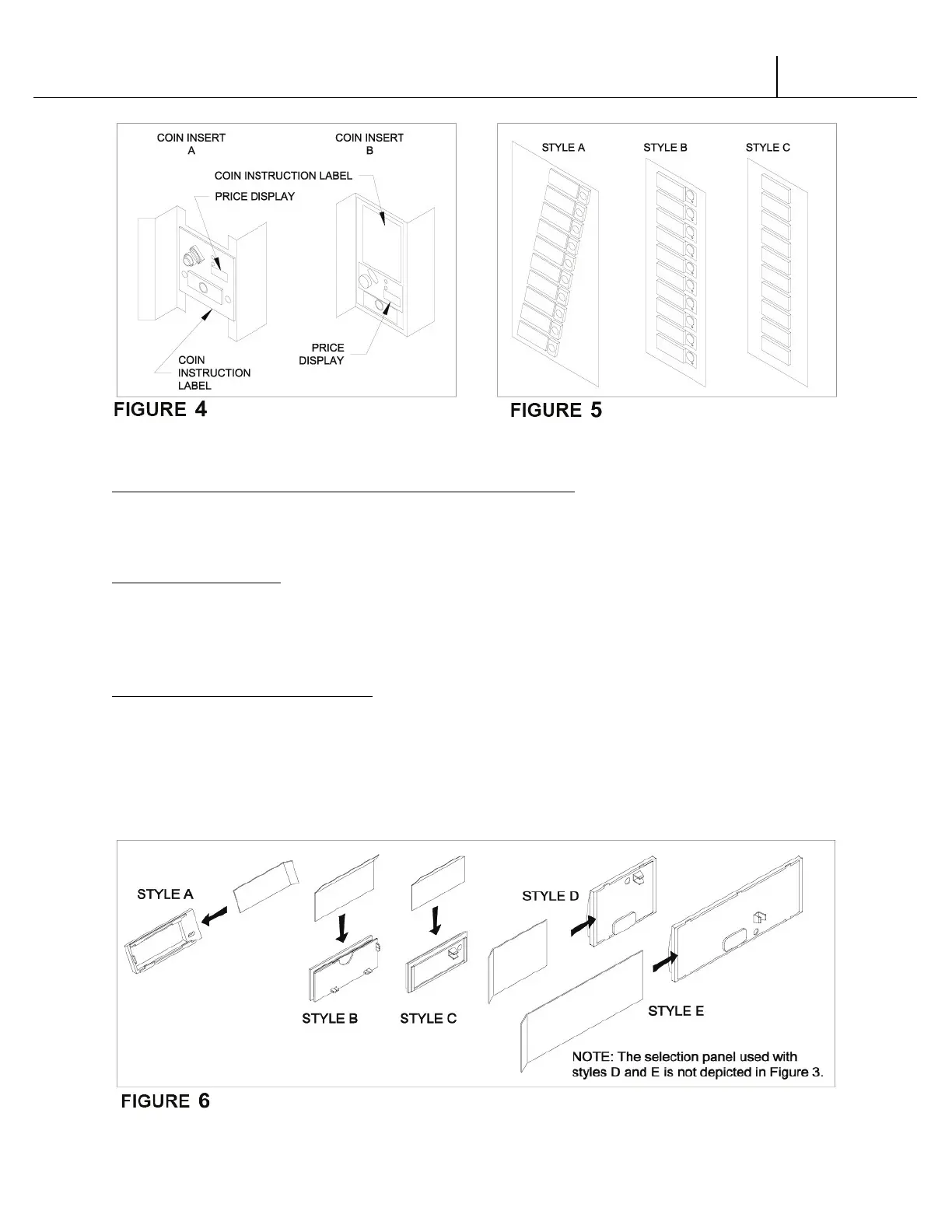

(Refer to Figure 4 for the following information.)
Coin insert “A” has a separate validator opening, and insert “B” shows the validator opening built
into the coin insert. Apply instruction label to area shown (as needed by the vendor).
FLAVOR LABELS INSTALLATION:
In Figure 6, corresponding styles are indicated by A, B, C, D, or E notations. Insert flavor labels to
the side or top of selection window or button depending on the style. See Figure 5 for selection
style. Rear views of windows and buttons are shown in Figure 6. Arrows point the direction to
insert labels.
Selection window and selection button labels identify product contained in columns.
