WIRING DIAGRAMS FOR ELECTRONIC SPEED CONTROLLERS (SINGLE PHASE 230V ~ 50Hz)

L – Supply Live 230V 50Hz

N – Supply Neutral

U1 – Motor Control Variable Neutral

U2 – Motor Live 230V ~ 50Hz

A – Auxiliary Permanent Neutral

E – Motor Supply Earth (E)

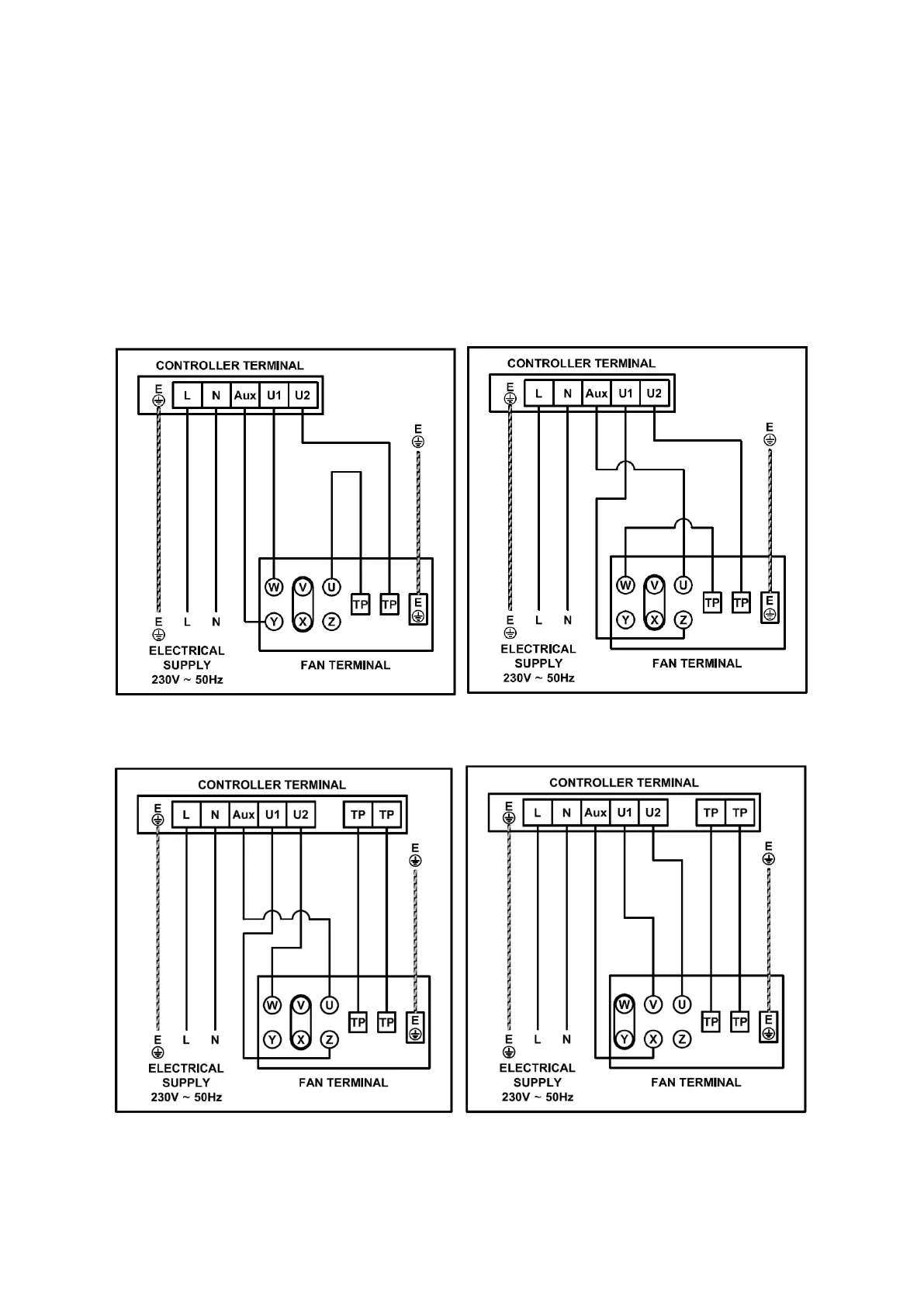

WIRING DIAGRAM 1 WIRING DIAGRAM 2

WIRING DIAGRAM 3 WIRING DIAGRAM 4a
