Sandstrom S32HED13 - Rear View and Sockets

10
Preparation
GB

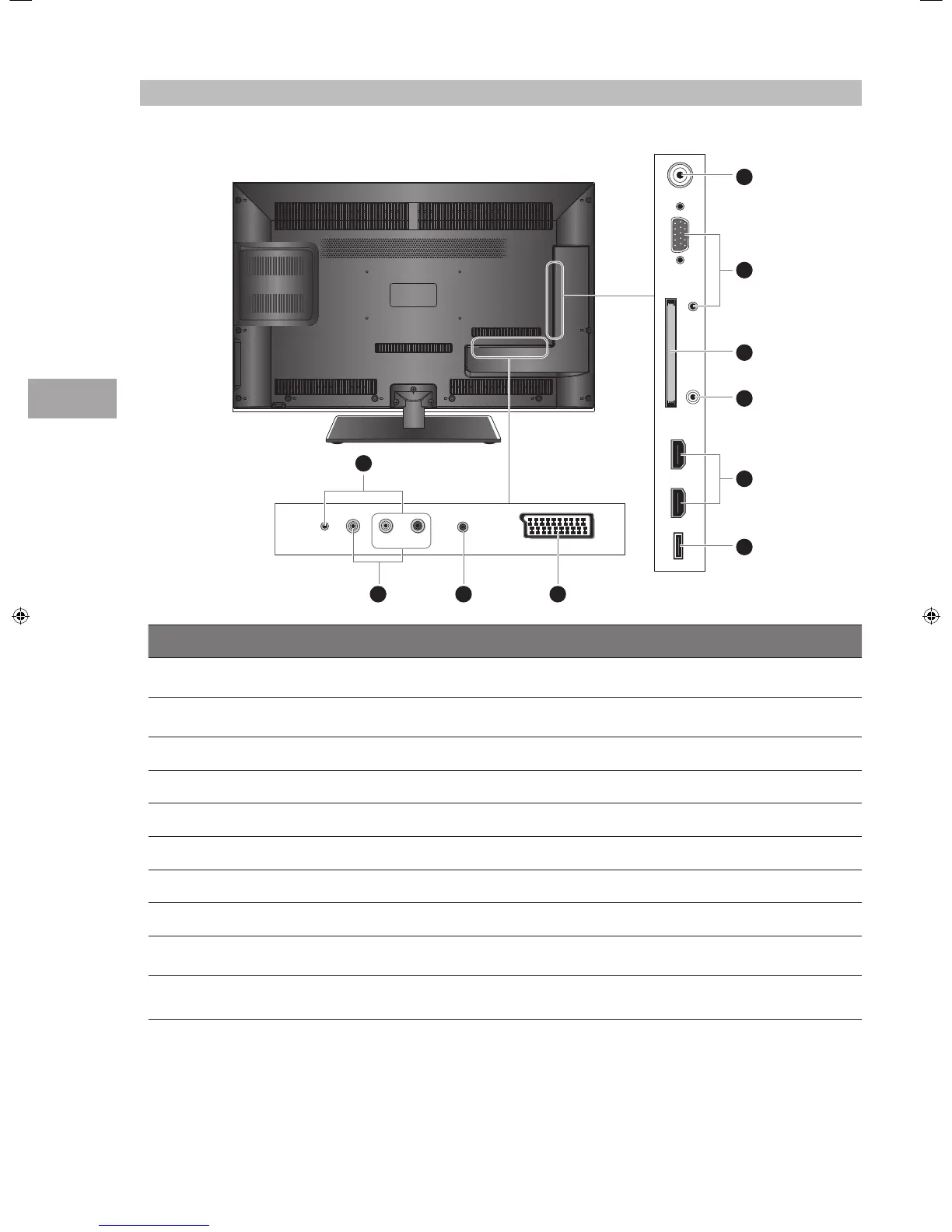

Rear View and Sockets
USB HDMI2 HDMI1(ARC) PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
5
6
7
8
10
9
RLVIDEO
SCART
YPbPr SPDIF OUTPUT
432
1
Item Description
1 YPbPr/ AUDIO (L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets via the included component adapter cable.
2 VIDEO / AUDIO (L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
3 SPDIF OUTPUT To connect to the audio socket on the digital/standard 5.1 audio system.
4 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
5 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
6 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
7 COMMON INTERFACE Allows the insertion of a Common Access Module.
8 HEADPHONE Connects to the headphones.
9 HDMI1(ARC) / HDMI2
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
10 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
