23
INSTALLATION
GB

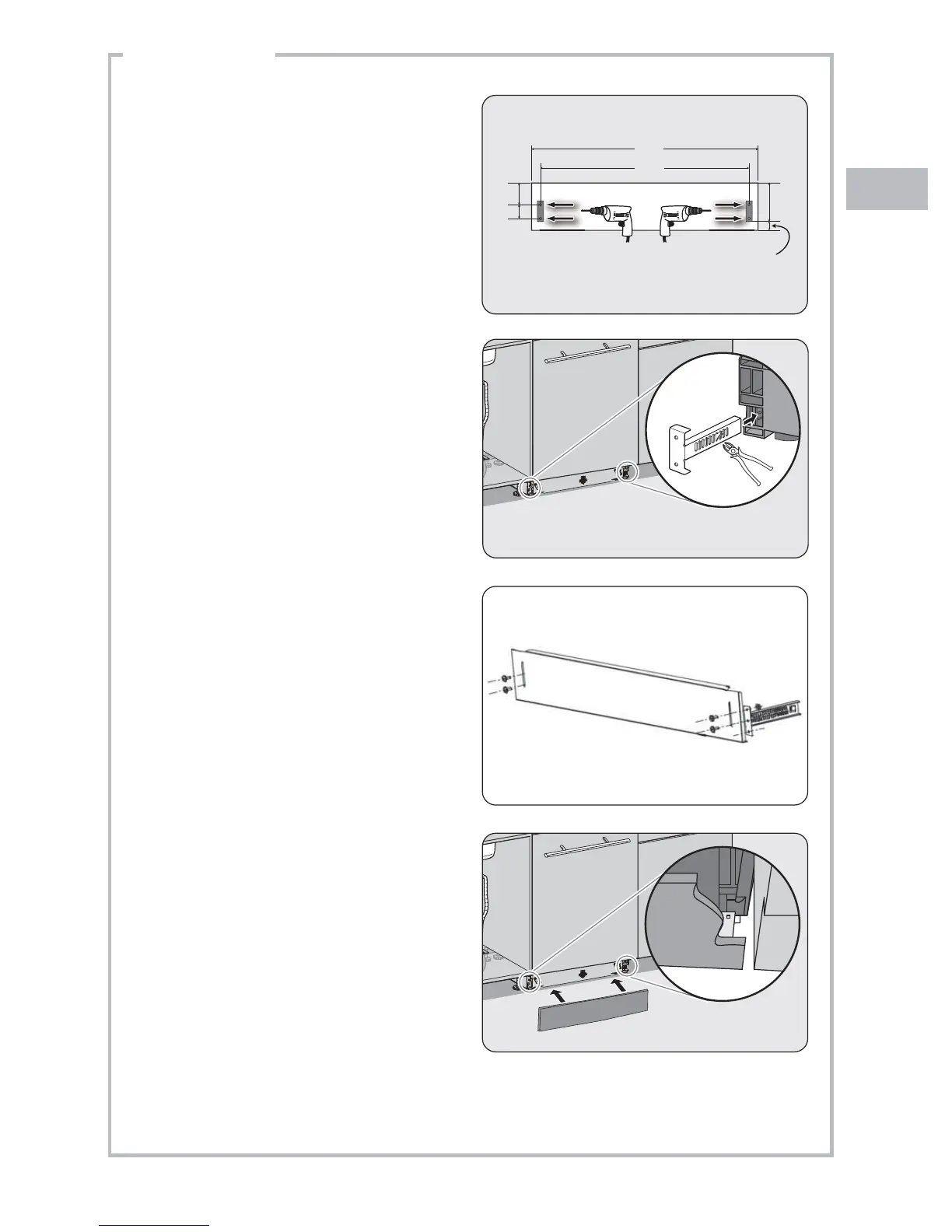

13. Cut out a 598 mm wide plinth for toe
panel. Tape the supplied toe panel
mounting brackets to the toe panel as
shown. Drill the required holes.
598
545.4
36
20
84
Adjust Height
14. Determine the correct position for the
toe panel mounting bracket, remove
the bracket and bend the metal tab. This
ensures that the toe panel won’t slide in
further than you need.
16. Attach the toe panel to the dishwasher.
15. Attach the toe panel mounting brackets
to the toe panel. Align the screw holes,
then using the 4 screws ST4x14 to secure
the toe panel.
