Sanitron S2400C - Installation

6
INSTALLATION
SAFETY EQUIPMENT REQUIRED TO PERFORM TASK
1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there
is any damage to the purifier, power cord or plug. SANITRON
®
Model S2400C is shipped with the lamp packed separately.
Keep the lamp aside for installation once the purifier has been properly installed..
2. Units occasionally experience damage in shipment due to the fragility of the quartz sleeve. It is, therefore, recommended
to inspect the water purifier for damage to the quartz sleeve after it has been removed from the shipping carton. Each end
of the unit as well as the inlet and outlet should be viewed to see if the quartz sleeve has experienced damage. If the quartz
sleeve shows signs of damage it should be replaced before the purifier is pressurized. See “Quartz Sleeve Installation or
Replacement” in the “Maintenance” section for the proper method of replacing the quartz sleeve in your water purifier.
3. The water purifier’s dual chamber heads are removable and may be rotated independently, which aids in the installation,
maintenance or the retrofitting of an existing system.

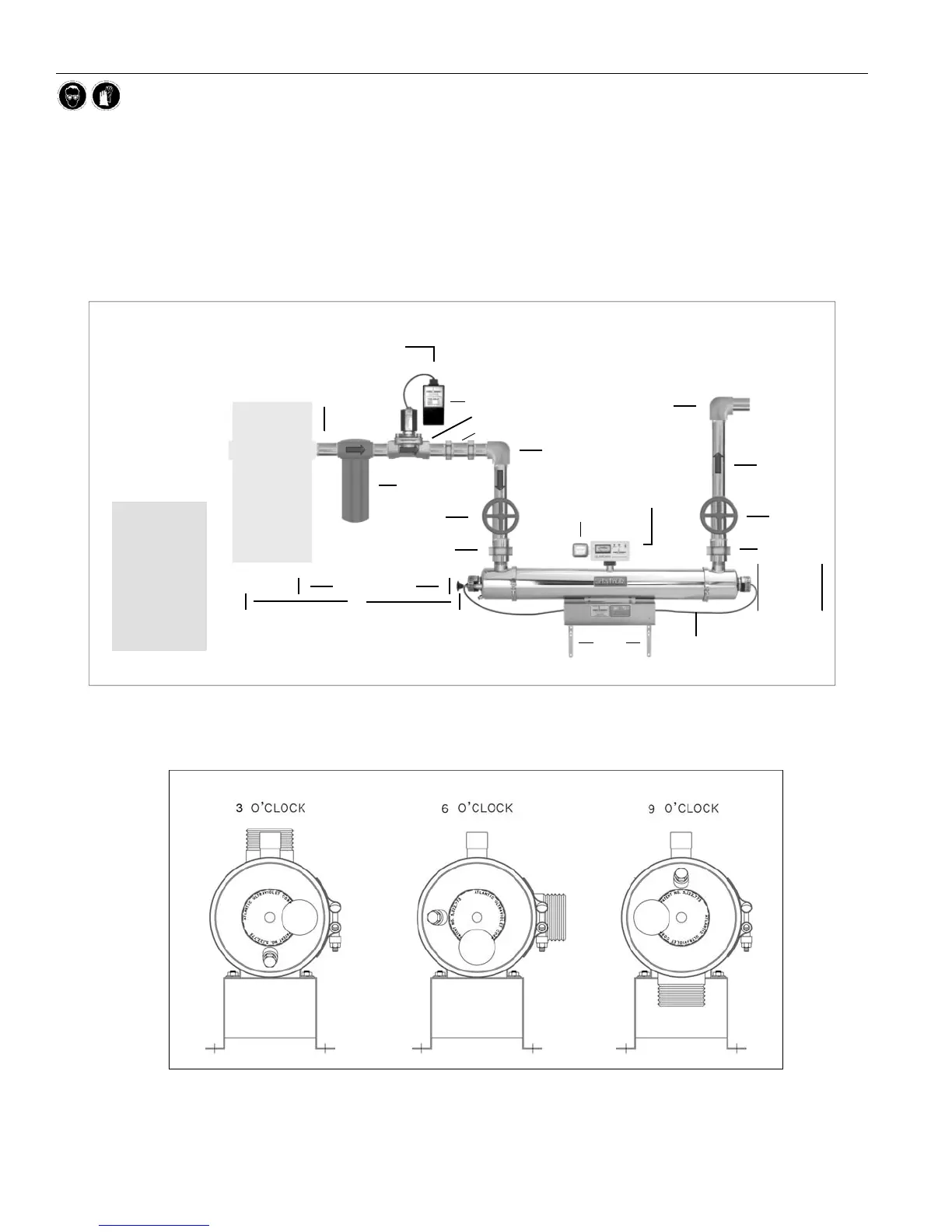

Figure 3 - Recommended Installation
Note: DO NOT rotate head so wiper knob is at 12 o’clock position
4. The water purifier should be mounted horizontally on a flat dry surface. Secure the water purifier using the mounting holes
in the ballast housing or with the optional wall mounting kit. The purifier should not be solely supported by its plumbing
connections.
Figure 2 - Recommended Installation
°
COMMON
PRE-TREATMENT or
PUMPING DEVICES
1. Deionizer
2. Water Softener
3. Carbon Filters (GAC)
4. Pressure Tank
5. Pump
6. Reverse Osmosis
7. Prefilters
Cold Water Line
Ultraviolet Water Purifiers
should be installed closest
to the point of use. (POU)
5 Micron Filter
12" Manual Wiper
Elbow
Elbow
OPTIONAL EQUIPMENT
OPTIONAL EQUIPMENT
Two Minute Time Delay
Solenoid Valve
Flow Control Valve
OPTIONAL EQUIPMENT
Note:
Solenoid plugs into the top of the Time Delay,
and the Time Delay into the Ultraviolet Monitor
Use of Metal Pipe is recommended for 12"
past elbow to the inlet or from the outlet.
(avoids ultraviolet degradation of exposed plastic pipe)
POINT OF USE
(POU)
Ultraviolet Water Purifiers
should be installed closest
to the point of use.
Ultraviolet Water Purifier
6" Minimum
Clearance for
Gland Access
Outlet Line to
point of use
to be as short
as possible
Recommended Minimum Clearance
For Lamp or Quartz Sleeve Removal
Valve
W
50"
Union
W
W
Incoming
Water
Supply
W
W
W
Audio Alarm
Ultraviolet Monitor
W
W
W
W
W
Valve
Union
W
W
W
W
W
W
W
Wall Mounting Kit
W
W
W
W
Note:
Drain Pan
Recommended.
Water purifi er
should be
installed at
minimum of 18”
above fl oor
