Sankyo STD-1800 - Parts Identification; Control Panels

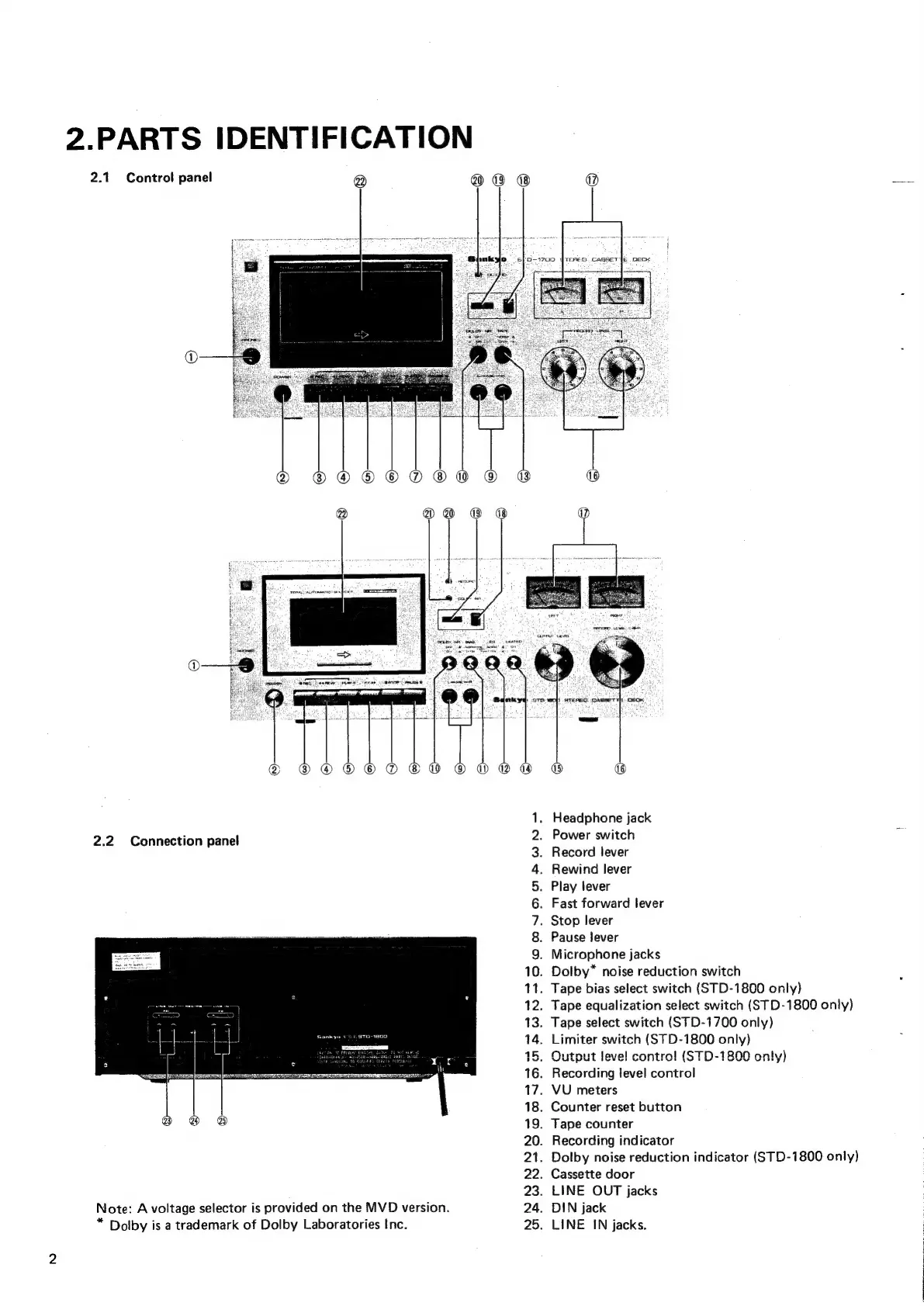

2.PARTS IDENTIFICATION
2.1 Control panel
Headphone jack
Power switch
Record lever
Rewind lever
Play lever
Fast forward lever
Stop lever
Pause Jever
Microphone jacks
10. Dolby” noise reduction switch
11. Tape bias select switch (STD-1800 only)
12. Tape equalization select switch (STD-1800 only)
13. Tape select switch (STD-1700 only)
14. Limiter switch (STD-1800 only)
15. Output level control (STD-1800 only)
16. Recording level control
17. VU meters
18. Counter reset button
@ 8 ® 19. Tape counter
20. Recording indicator
21. Dolby noise reduction indicator (STD-1800 only)
22. Cassette door
23. LINE OUT jacks
Note: A voltage selector is provided on the MVD version. 24. DIN jack
* Dolby is a trademark of Dolby Laboratories Inc. 25. LINE IN jacks.
2.2. Connection panel
00 SS Ol Be NS
