Sankyo STD-1800 - Disassembly

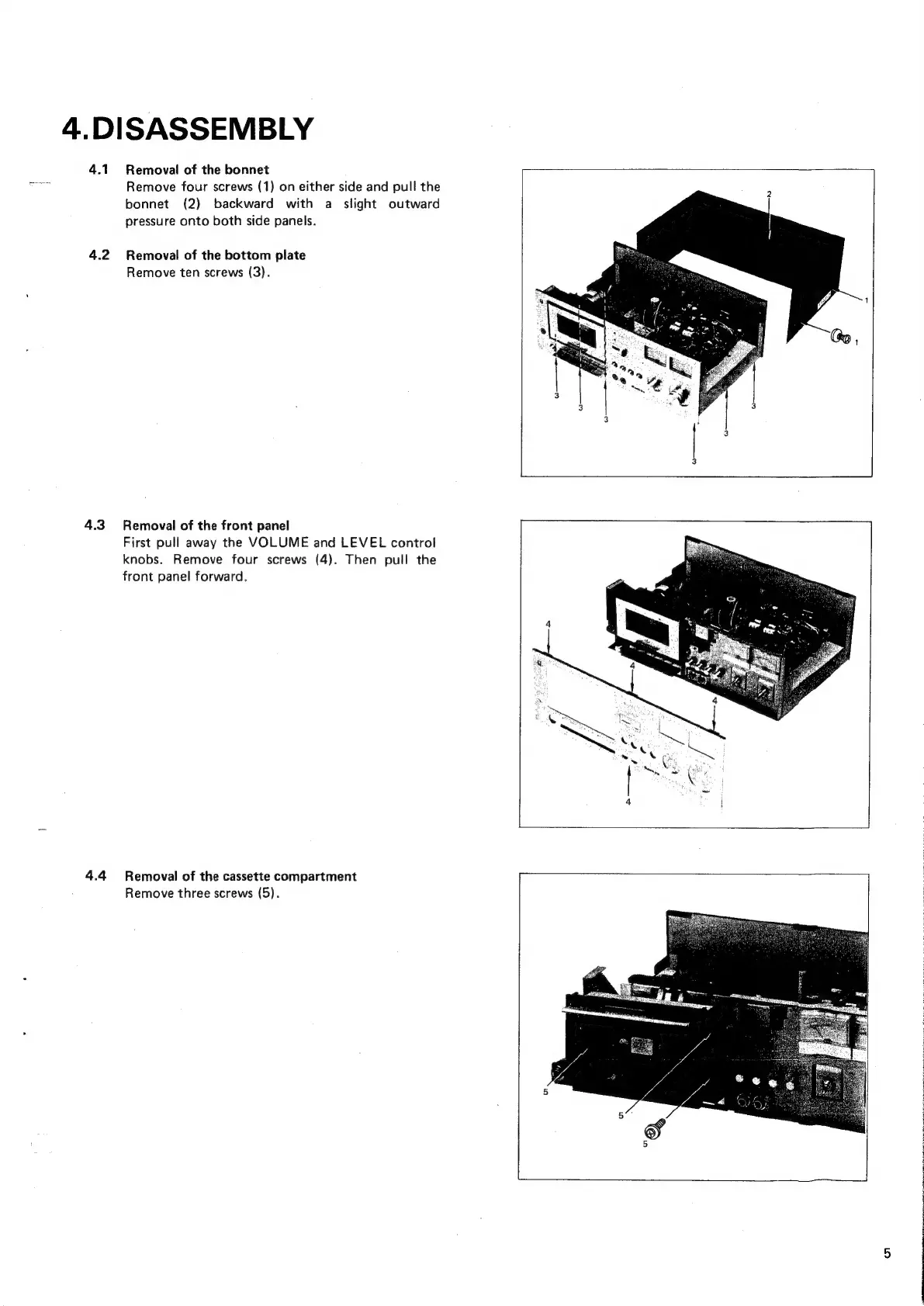

4.DISASSEMBLY
4.1 Removal of the bonnet
Remove four screws (1) on either side and pull the
bonnet (2) backward with a slight outward
pressure onto both side panels.
4.2 Removal of the bottom plate
Remove ten screws (3).
First pull away the VOLUME and LEVEL control
knobs. Remove four screws (4). Then pull the
front panel forward.
4.3. Removal of the front panel |
4.4 Removal of the cassette compartment
Remove three screws (5).
