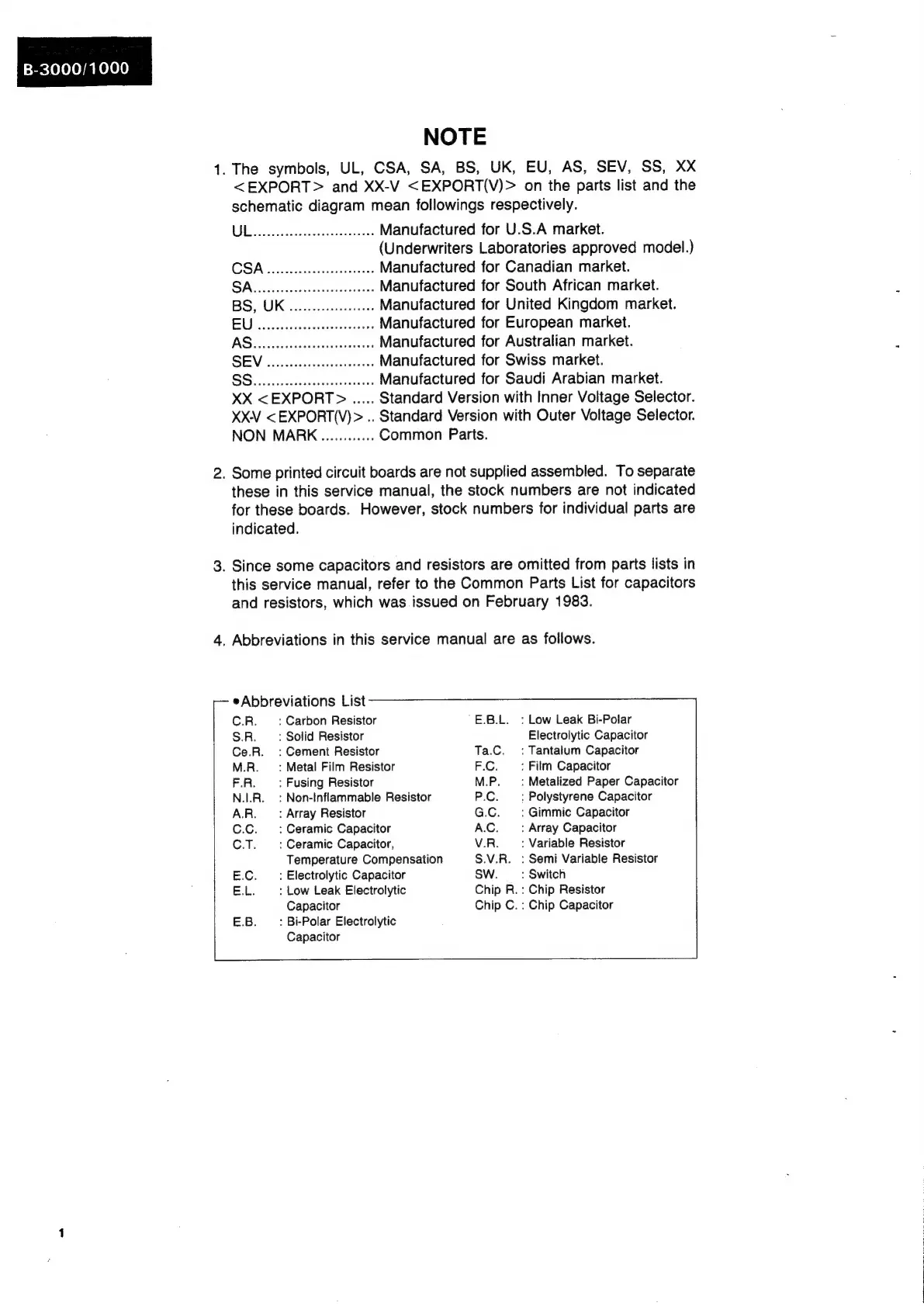

B-3000/1000
NOTE
1.
The
symbols,
UL,
CSA,
SA,
BS,
UK,
EU,
AS,
SEV,
SS,
XX
<EXPORT>
and
XX-V
<EXPORT(V)>
on
the
parts
list
and
the
schematic
diagram
mean
followings
respectively.
Wendi eeeceeteder teh Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)
CSA vk neniieiehe Manufactured for Canadian market.
SAsccsitiesattesdacevetests Manufactured for South African market.
BS, UK .........2.c0c20e Manufactured for United Kingdom market.
BW bss sienians Manufactured for European market.
AS ccs ae eeieececics Manufactured for Australian market.
SEV wivisscssccnecesesceiess Manufactured for Swiss market.
SSiiekveuiostneseaeds Manufactured for Saudi Arabian market.
XX <EXPORT> ..... Standard Version with Inner Voltage Selector.
XXV <EXPORT(V)> .. Standard Version with Outer Voltage Selector.
NON MARK............. Common Parts.
2. Some printed circuit boards are not supplied assembled. To separate
these in this service manual, the stock numbers are not indicated
for these boards. However, stock numbers for individual parts are
indicated.
3. Since some capacitors and resistors are omitted from parts lists in
this service manual, refer to the Common Parts List for capacitors
and resistors, which was issued on February 1983.
4. Abbreviations in this service manual are as follows.
Sa canen List
C.R. —: Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. — : Solid Resistor Electrolytic Capacitor
Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. _ : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. _: Metalized Paper Capacitor
N.LR. : Non-Inflammable Resistor P.C. _ ; Polystyrene Capacitor
A.R. — : Array Resistor G.C. —: Gimmic Capacitor
C.C. : Ceramic Capacitor A.C. —_: Array Capacitor
C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor
E.C. _: Electrolytic Capacitor SW. — : Switch
E.L. : Low Leak Electrolytic Chip R.: Chip Resistor
Capacitor Chip C. : Chip Capacitor
E.B. : Bi-Polar Electrolytic
Capacitor
