Sansui B-3000 - Auxiliary Board Parts Lists

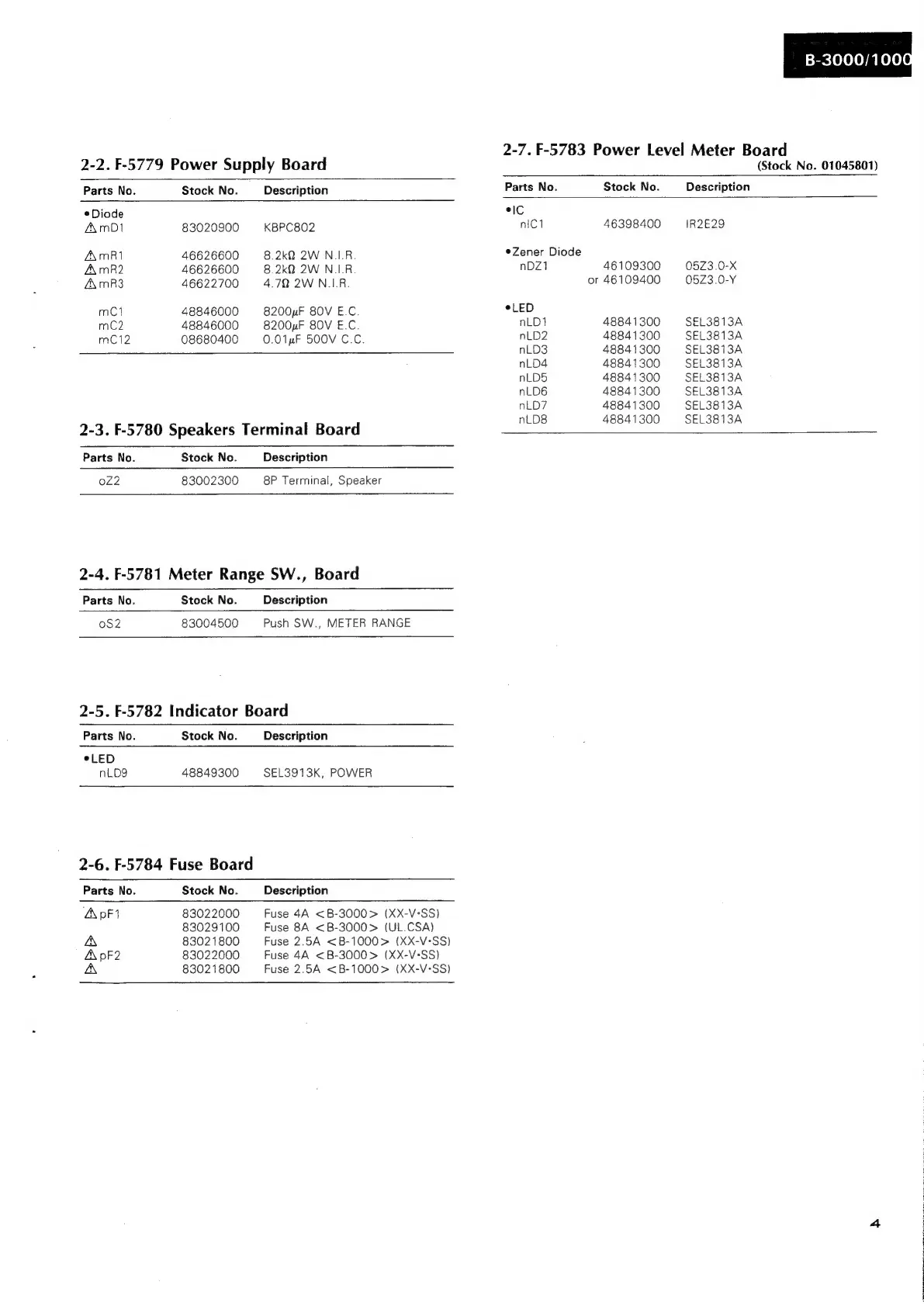

2-2. F-5779 Power Supply Board
Parts No. Stock No. Description
*Diode
AmD 83020900 KBPC802
AvmRi 46626600 8.2kQ 2W NLR.
AvmR2 46626600 8.2kO 2W N.1.R.
AvmR3 46622700 4.70 2W N.LR.
mC 48846000 8200pF 80V E.C.
mC2 48846000 8200zF 80V E.C.
mC12 08680400 O0.01pF 500V C.C.
2-3. F-5780 Speakers Terminal Board
Stock No.
Parts No.
oZ2 83002300
Description
8P Terminal, Speaker
2-4. F-5781 Meter Range SW., Board
Parts No. Stock No.
o0S2 83004500
Description
Push SW., METER RANGE
2-5. F-5782 Indicator Board
Parts No. Stock No. Description
*LED
nLbg 48849300 SEL3913K, POWER
2-6. F-5784 Fuse Board
Parts No. Stock No. Description
LN pF1 83022000 Fuse 4A <B-3000> (XX-V°SS)
83029100 Fuse 8A <B-3000> (UL.CSA)
A 83021800 Fuse 2.5A <B-1000> (XX-V:SS)
A\ pF2 83022000 Fuse 4A <B-3000> (XX-V:SS}
A 83021800 Fuse 2.5A <B-1000> (XX-V-SS)
B-3000/1000
2-7. F-5783 Power Level Meter Board
(Stock No. 01045801)
Parts No. Stock No. Description
elc
nc 46398400 IR2E29
¢Zener Diode
nDZ1 46109300 05Z3.0-X
or 46109400 0523.0-Y
*LED
nLD1 48841300 SEL3813A
nLD2 48841300 SEL3813A
nLD3 48841300 SEL3813A
nLD4 48841300 SEL3813A
nLDS 48841300 SEL3813A
nLD6 48841300 SEL3813A
nLD7 48841300 SEL3813A
nLD8 48841300 SEL3813A
