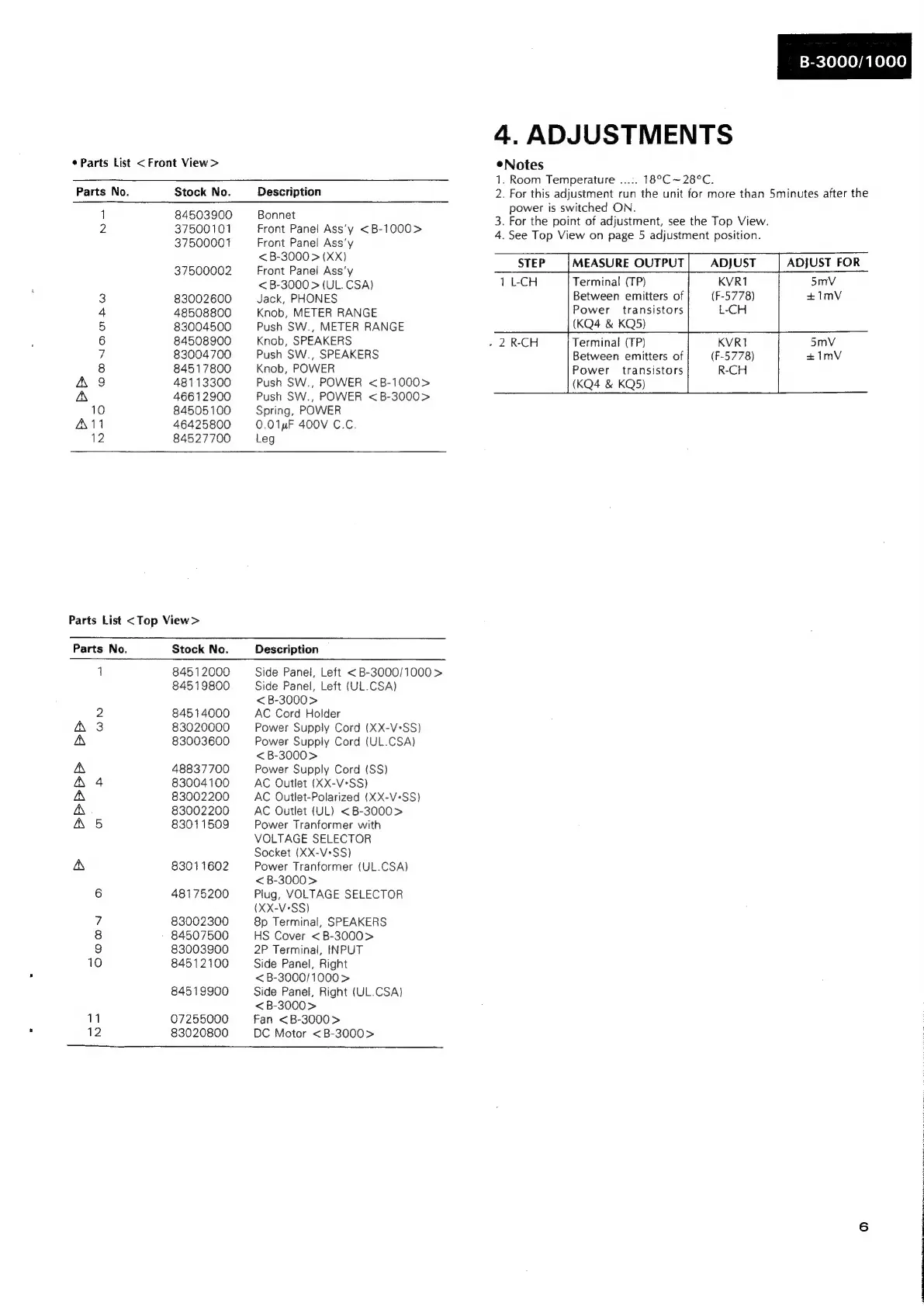

Sansui B-3000 - Page 7

¢ Parts List <Front View>
Parts No.
Stock No.
A
A
1
OANOaAhW
9
11
12
84503900
37500101
37500001
37500002
83002600
48508800
83004500
84508900
83004700
84517800
48113300
46612900
84505100
46425800
84527700
Parts List <Top View>
Parts No,
PPPPP PB
>
1
Stock No.
84512000
84519800
84514000
83020000
83003600
48837700
83004100
83002200
83002200
83011509
83011602
48175200
83002300
84507500
830033900
84512100
84519900
07255000
83020800
Description
Bonnet
Front Panel Ass‘'y <B-1000>
Front Panel Ass’y
<B-3000 > (XX)
Front Panel Ass‘y
<B-3000 > (UL. CSA)
Jack, PHONES
Knob, METER RANGE
Push SW., METER RANGE
Knob, SPEAKERS
Push SW., SPEAKERS
Knob, POWER
Push SW., POWER <B-1000>
Push SW., POWER <B-3000>
Spring, POWER
0.01pnF 400V C.C.
Leg
Description
Side Panel, Left <B-3000/1000>
Side Panel, Left (UL.CSA)
<B-3000 >
AC Cord Holder
Power Supply Cord (XX-V-SS)
Power Supply Cord (UL.CSA)
<B-3000 >
Power Supply Cord (SS)
AC Outlet (XX-V*SS)
AC Outlet-Polarized (XX-V+SS}
AC Outlet (UL) <B-3000>
Power Tranformer with
VOLTAGE SELECTOR
Socket (XX-V:SS)
Power Tranformer (UL.CSA}
<B-3000>
Plug, VOLTAGE SELECTOR
(XX-V°SS)
8p Terminal, SPEAKERS
HS Cover <B-3000>
2P Terminal, INPUT
Side Panel, Right
<B-3000/1000>
Side Panel, Right (UL.CSA)
<B-3000>
Fan <B-3000>
DC Motor <B-3000>
B-3000/1000
4. ADJUSTMENTS
*Notes
1. Room Temperature ...:. 18°C ~ 28°C.
2. For this adjustment run the unit for more than 5minutes after the
power is switched ON.
3. For the point of adjustment, see the Top View.
4. See Top View on page 5 adjustment position.
MEASURE OUTPUT ADJUST ADJUST FOR
Terminal (TP) a KVRI | SmV
Between emitters of (F-5778) +1mV
Power transistors L-CH
(KQ4 & KQ5)
Terminal (TP) KVRI | 5mV
Between emitters of (F-5778) +1mvV
Power transistors R-CH
(KQ4 & KQ5)
- 2R-CH
