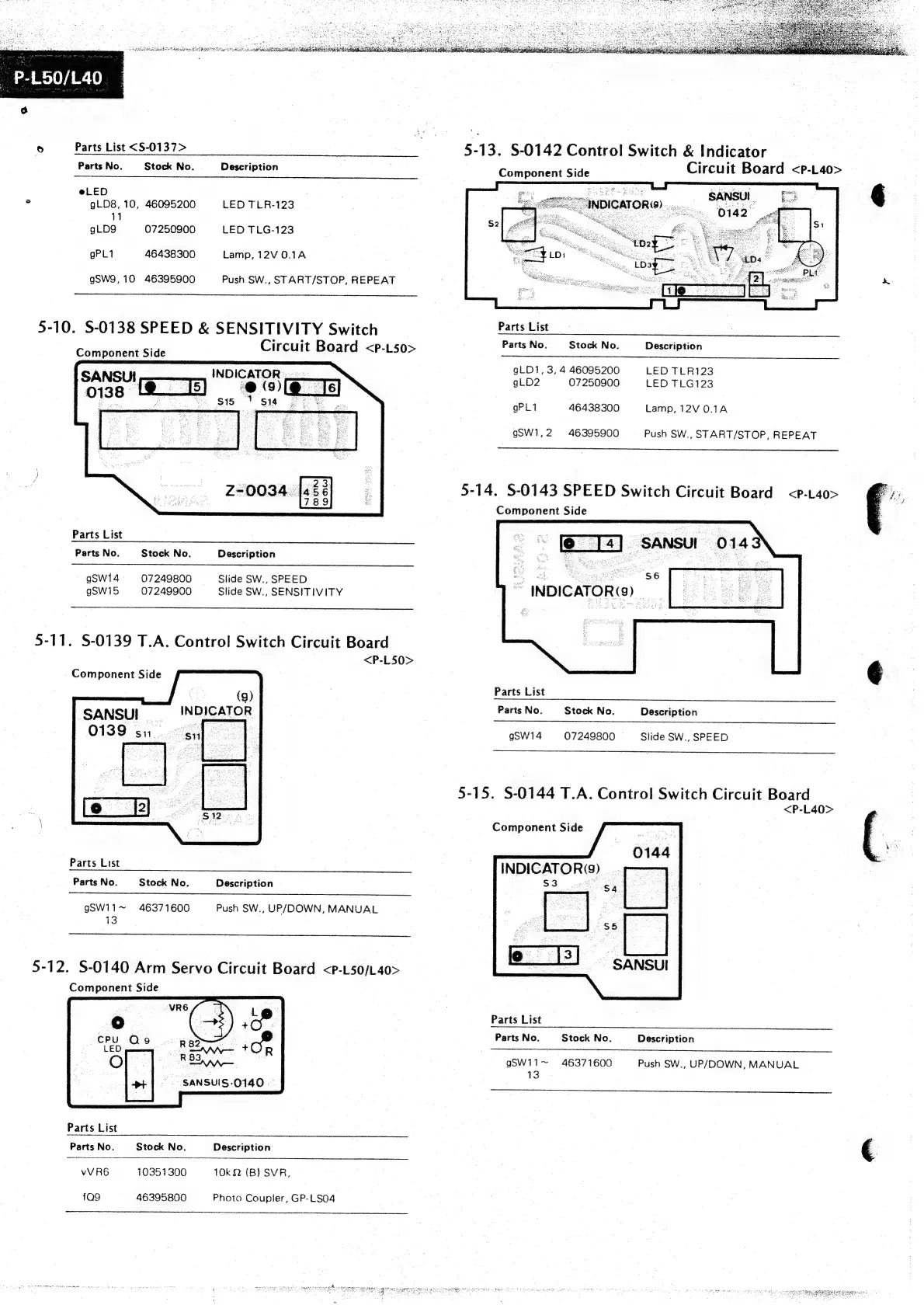

Sansui P-L50 - Page 16

Parts List <$-0137>
Parts No. Stock No. Description
eLED .
gi.D8, 10, 46095200 LED TLR-123
11 .
gLD9 07250900 LED TLG-123
gPL1 46438300 Lamp, 12V 0.1A
gSw9,10 46395900
Push SW., START/STOP, REPEAT
5-10. $-0138 SPEED & SENSITIVITY Switch
Component Side
SANSUI
“os $15
Circuit Board <p-Lso>
INDICATOR .
ae tee
Parts List
Parts No. Stock No. Description
gSW14 07249800 Slide SW., SPEED
gSW15 07249900 Slide SW., SENSITIVITY
5-11. $-0139 T.A. Control Switch Circuit Board
- Component Side
SANSUI
0139
INDICATOR
<P-L50>
(9)
Parts List
Parts No. Stock No. Description
gSW11~ 46371600 Push SW., UP/DOWN, MANUAL
13
5-12. S-0140 Arm Servo Circuit Board <p-L50/L40>
Component Side
Parts List
Parts No. Stock No. Description
vV R6 10351300 10k 2 (B) SVR,
fQ9 46395800 Photo Coupler, GP-LS04
5-13. $-0142 Control Switch & Indicator
Component Side Circuit Board <p-L4o>
Parts List
Parts No. Stock No. Description
gLD1, 3, 4 46095200 LED TLR123
gL D2 07250900 LED TLG123
gPL1 46438300 Lamp, 12V 0.1A
gSW1,2 46395900 Push SW., START/STOP, REPEAT
5-14. S-0143 SPEED Switch Circuit Board <p-L4o>
Component Side
Parts List
Parts No. Stock No. Description
gSwW14 07249800 Slide SW., SPEED
5-15. S-0144 T.A. Control Switch Circuit Board
<P-L40>
Component Side
SANSUI
Parts List
Parts No. Stock No. Description
gSW1i1~ 46371600 Push SW., UP/DOWN, MANUAL
13 .
