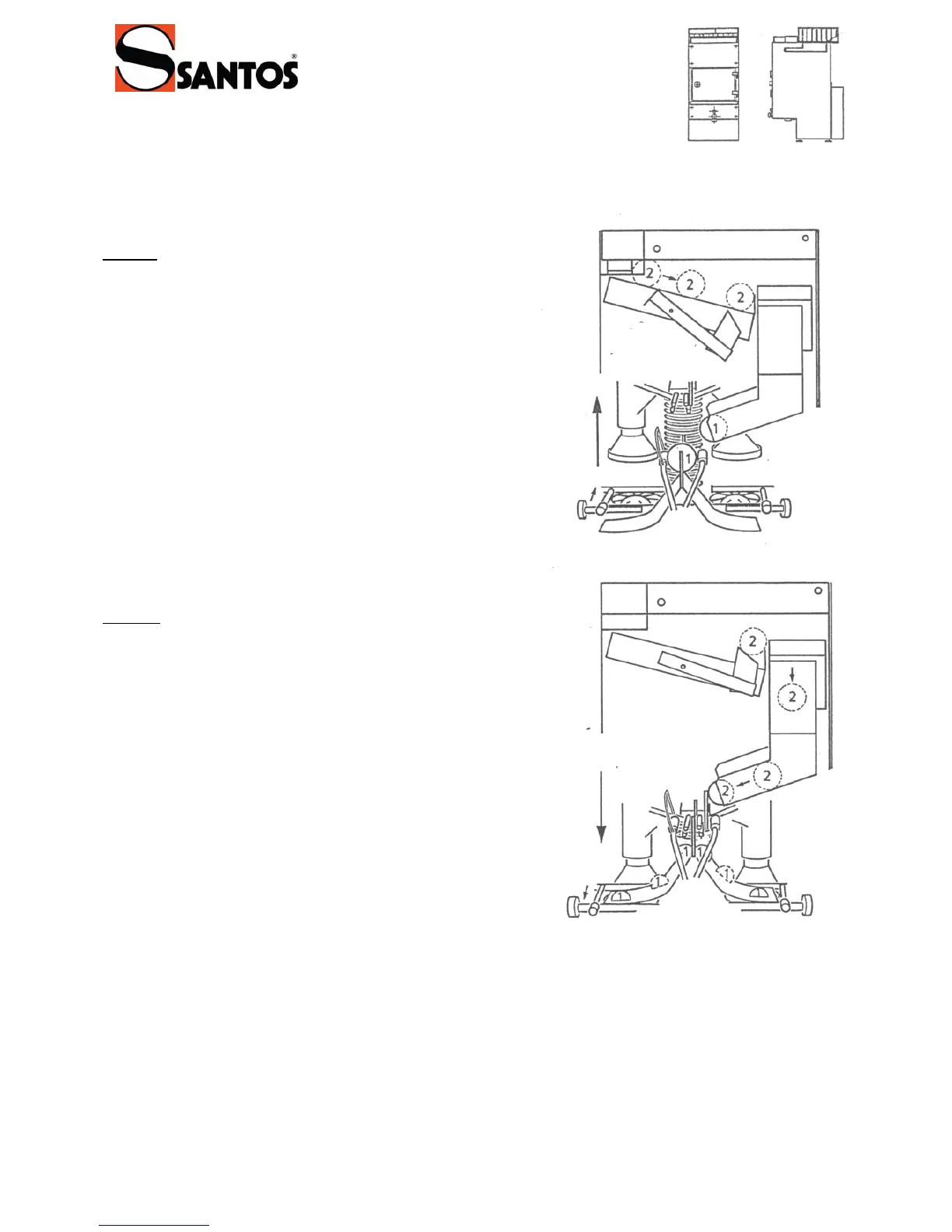

Phase 3 : 2
nd
upstroke of the vertical shaft.
As the upstroke starts, orange 1 positions above
the knife. As the upstroke completes, the selector
transfers orange 2 from the hopper into the feeding
chute. Orange 2 is then positioned by gravity waiting at
the end of the upper feeding chute and above the
dumper.
Phase 4 : 2
nd
downstroke. The orange1 is cut into two
pieces, and each half-orange is positioned, waiting to be
transfered to the cones.
As the downstrokes completes, the dumper
transfers orange 2 into the lower feeding chute. Orange 2
is then positioned by gravity waiting at the end of this
chute, stopped by a metal sheet.
