Edition du 04-2005 Page 9

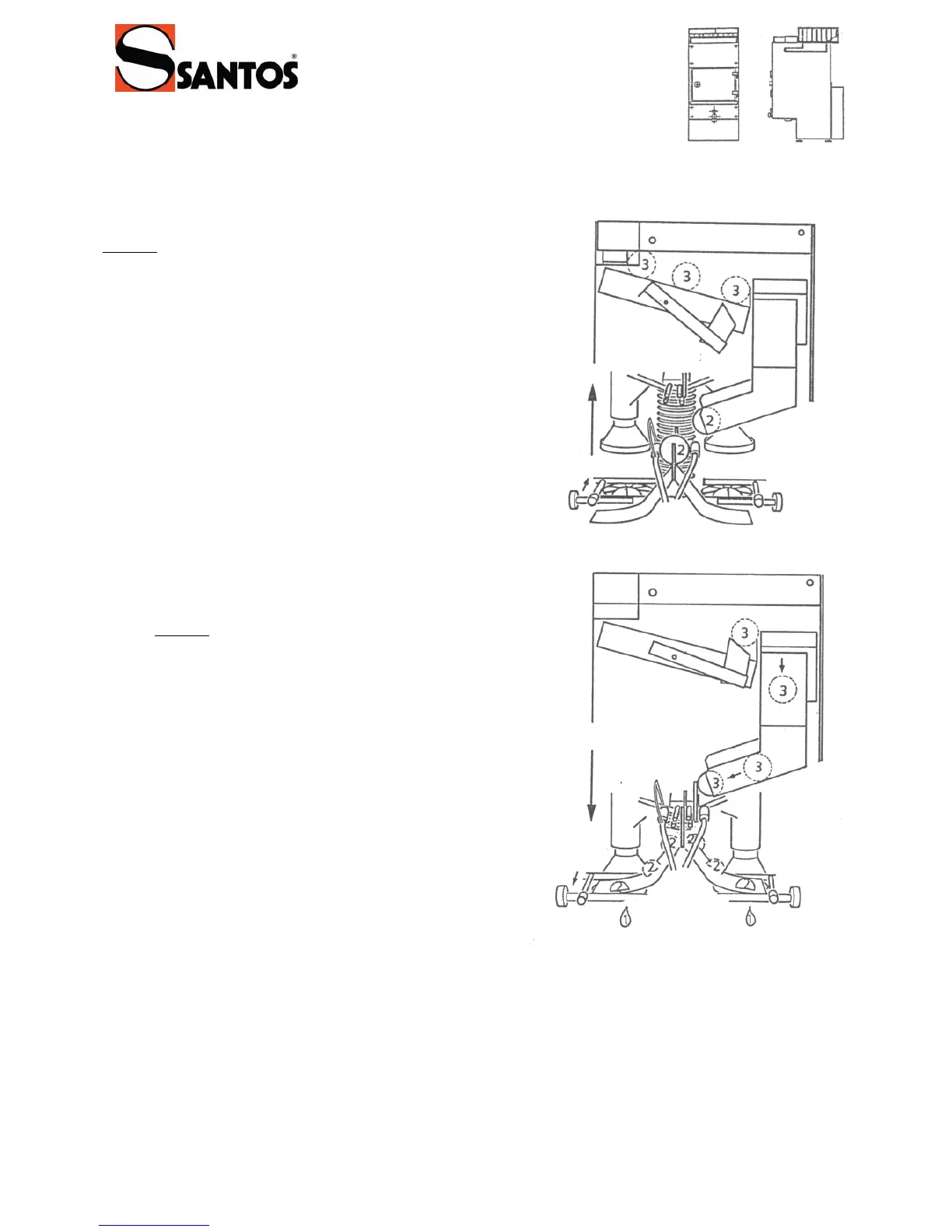

Phase 5 : 3 rd upstroke of the vertical shaft.
As the upstroke starts, orange 2 positions above
the knife. Simultaneously, both half-orange 1 are
positioned above the cones. As the upstrokes completes
orange 3 is selected. Orange 3 is then selected by
gravity, waiting at the end of the upper feeding chute
and above the dumper.
Phase 6 : 3
rd
downstroke of the vertical shaft.
As the downstroke starts, orange 2 is cut into t
parts and each half-orange is positioned waiting to be
transferred to the cones. As the downstroke com
the dumper transfers orange 3 into the lower feeding
chute.Orange 3 is then positionned by gravity, waiting a
the end of this chute, stopped by a metal sheet.
wo
pletes,
t
Both half-oranges 1 are pressed between
squeezers and cones.
.
