Step 2: Assemble Pillars to Base
Using the Screws (b), allign the countersunk holes in the Base
(d) with the corresponding holes in each Pillar (f). The rounded
or beveled edge of the Pillars should face the front of the stand
as shown in Diagram 2. Proceed to tighten all 4 screws by hand
with a phillips screw driver.
Note: Do
NOT use any power drivers to tighten the Screws!
Step 3: Add Top Plate to Pillars
Allign the Top Plate (e) with the Pillars (f) so that the two coun
-
tersunk holes that are closer together are toward the front of the
stand. Proceed to attach the Top Plate to the Pillars by threading
a Screw (b) through each of the countersunk holes and into the
Pillar as shown in the Detailed View Diagram 3. Tighten the
Screws with a phillips screw driver.
Note: Do
NOT use any power drivers to tighten the Screws!
Step 4: Add Isolation Pads and Carpet Spikes
The Isolation Pads (a) are self adhesive. For the best stabil
-
ity, place them in the extreme corners of each Top Plate (e) as
shown in Detailed View A of Diagram 4.
Carpet Spikes (c) are provided to stabilize the stand on carpet-
ing and to reduce resonance. Simply insert the end of the Carpet
Spike into each small hole in the bottom side of the Base (d).
You may need to tap them in with a wooden or rubber mallet.
See Detailed View B Diagram 5 for assistance.
Note: The end of the Carpet Spikes may be sharp enough
to dimple or dent wood floors or furniture. All small objects
can be hazardous to children. The use of Carpet Spikes is
optional. Sanus Systems is not liable for damage or injury.
Step 5: Add Wire Covers
Set the speaker on the stand and run the speaker wire between
the Pillars and through the hole in the base. Snap the plastic
Wire Covers (g) into the Grooves in the Pillars. See the Top
View Diagram 5 for assistance.
Note: Each BF31 stand requires two Wire Covers to span
the full height of the stand.

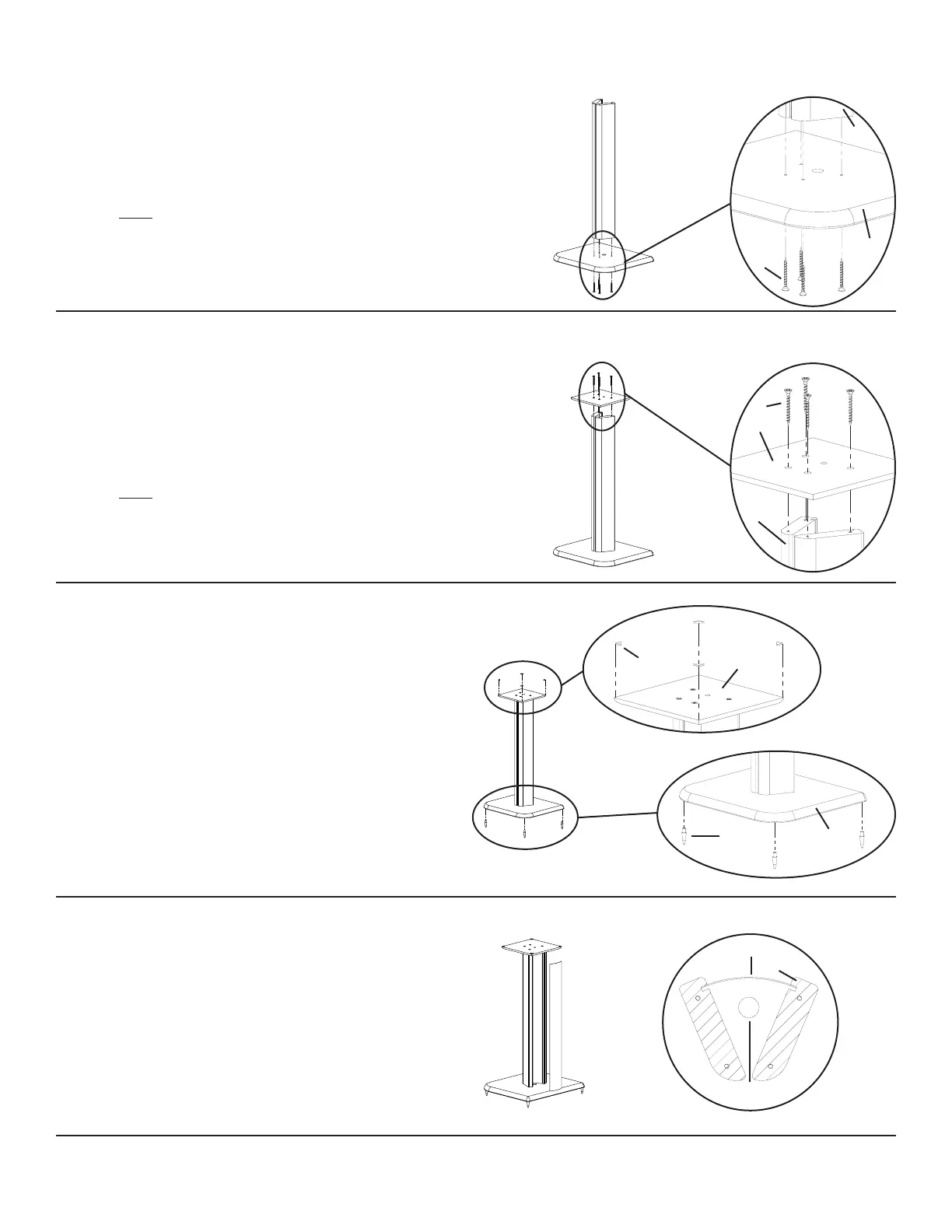

Diagram 2 Detailed View
f
d
b
Diagram 3 Detailed View
b
e
f
Detailed View A
Diagram 4
a e
Detailed View B
c d
Diagram 5 Top View
g
f
wire management
hole
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 1.20.05
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
