7

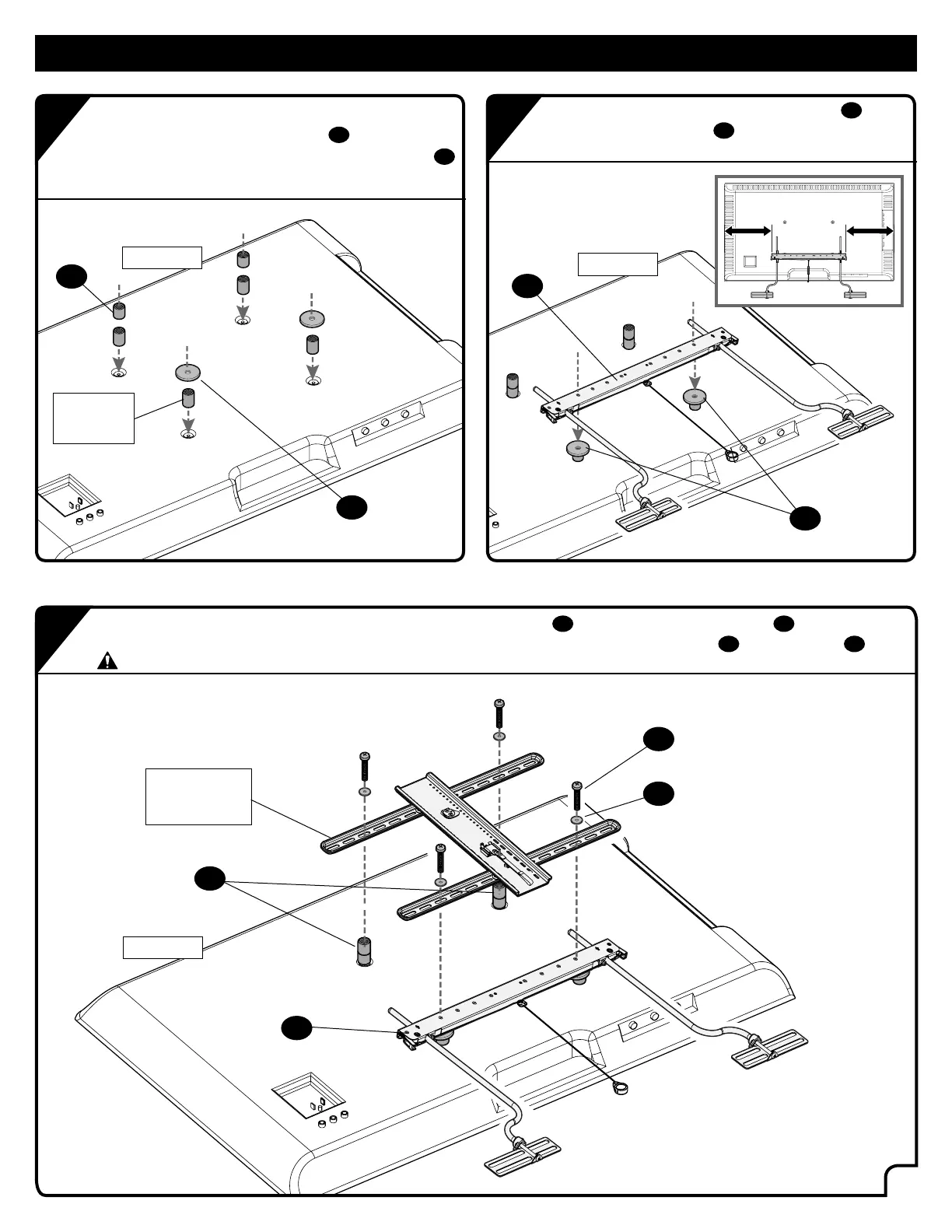

Place your TV mount spacers over your TV’s mounting
holes. Then place the 16mm spacers
08
over the spacer
on the top mounting holes and the interface washers
09
over the spacer on the bottom mounting holes.
Center the soundbar horizontal bracket
01
over
the interface washers
09
on your TV’s bottom
mounting holes.
STEP 3B
05
06
08
01
Center your TV mount bracket(s) on top of the 16mm spacers
08
and the soundbar bracket
01
.
Secure the TV mount and soundbar mount to your TV using the supplied TV screws
05
and washers
06
.
CAUTION: be sure to use correct length screws.
TV mount
spacers
Your TV
mount
TOP of TV
TOP of TV
TOP of TV
09
08
09
01
a
c
b
