5.5 mm (7/32 in.)
5.5 mm (7/32 in.)
10 mm (3/8 in.)
10 mm (3/8 in.)
4 5

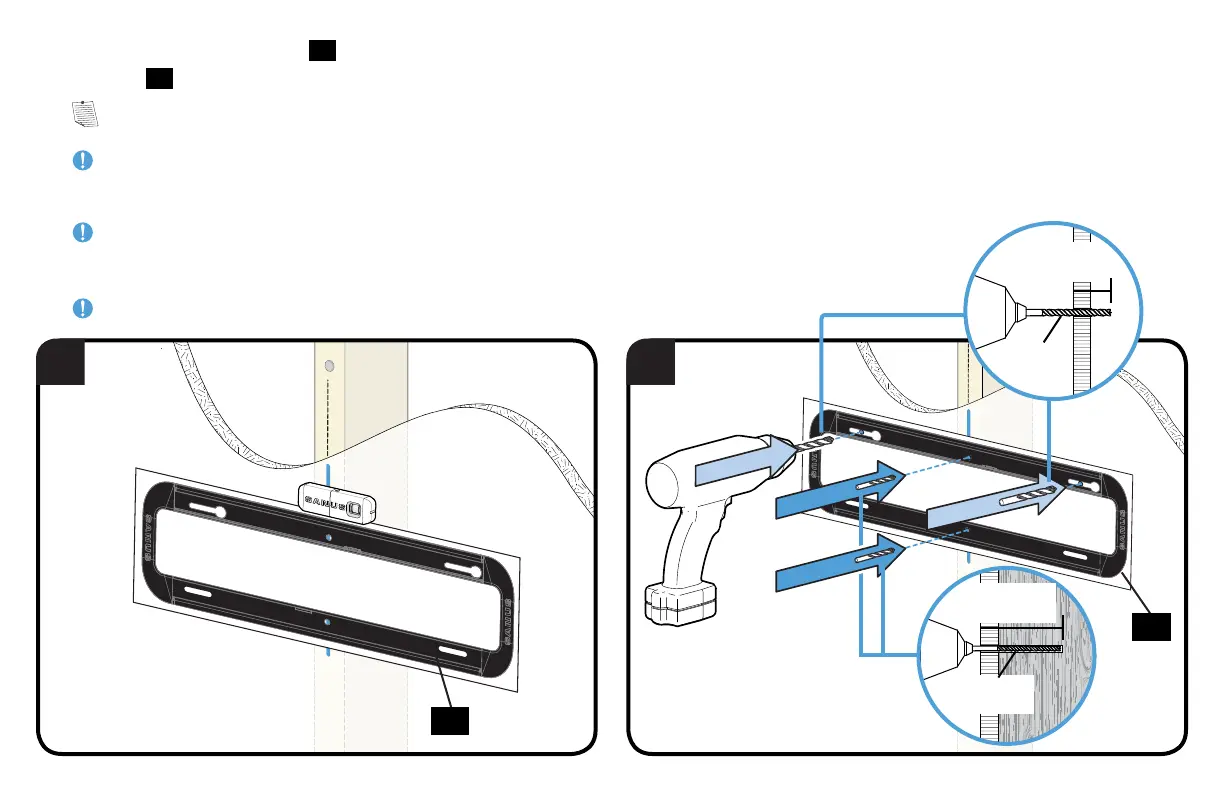

4. Place the wall plate template
10
at your desired height and position the middle holes over your stud center lines. Level the wall plate
template
10
and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the middle two pilot holes (into the stud) using a 5.5 mm (7/32 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 89 mm (3 1/2 in.).
Drill the outer top two pilot holes (into the drywall) using a 10 mm (3/8 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 25 mm (1 in.).
10
10
25 mm
(1 in.)
10 mm
(3/8 in.)
89 mm
(3 1/2 in.)
5.5 mm
(7/32 in.)
