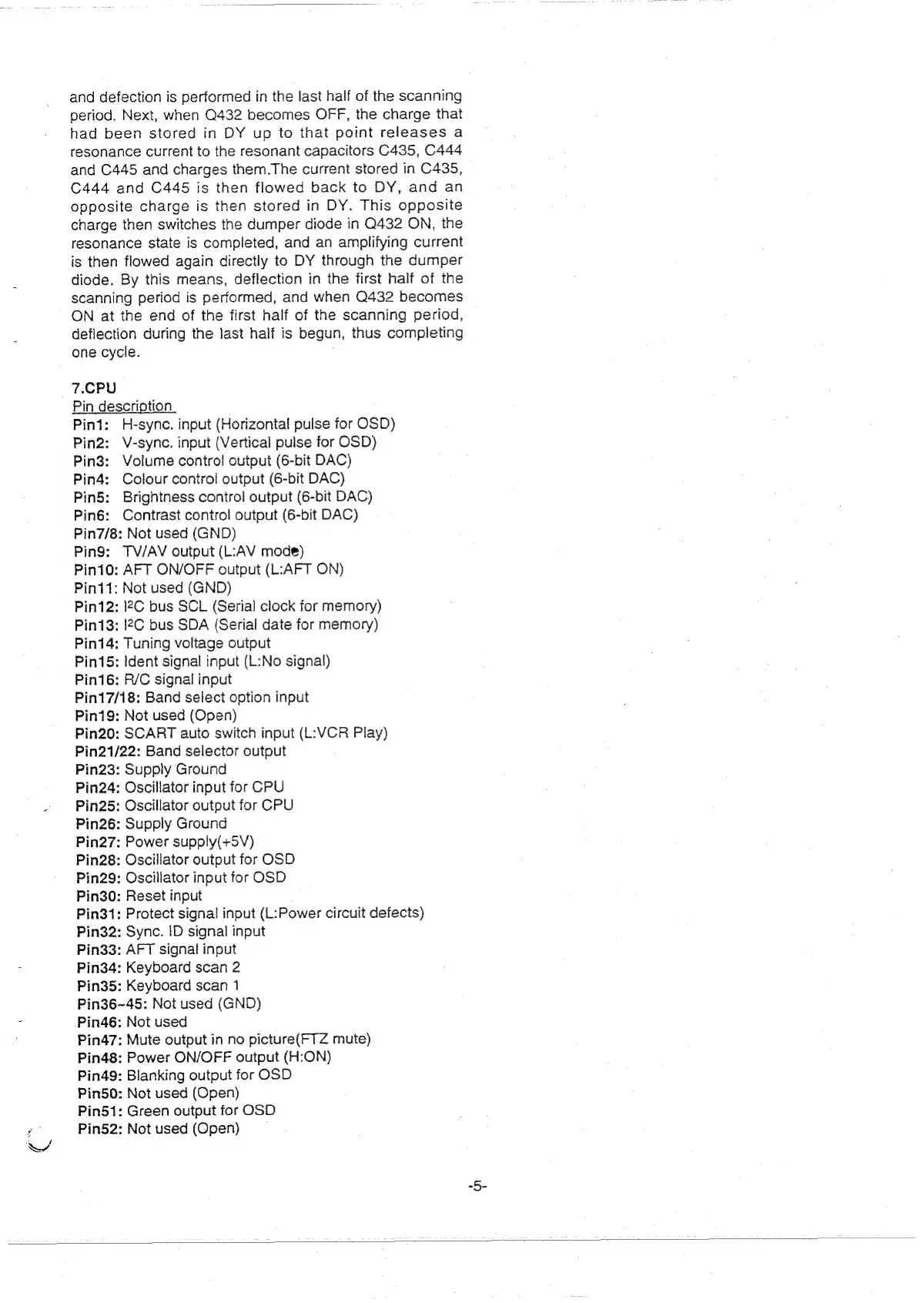

Page #5 background image
and
defection
is
performed
in
the
last
half
of
the
scanning
period.
Next,
when
Q432
becomes
OFF,
the
charge
that
had
been
stored
in
DY
up
to
that
point
releases
a
resonance
current
to
the
resonant
capacitors
C435,
C444
and
C445
and
charges
them.The
current
stored
in
C435,
C444
and
C445
is
then
flowed
back
to
DY,
and
an
opposite
charge
is
then
stored
in
DY.
This
opposite
charge
then
switches
the
dumper
diode
in
Q432
ON,
the
resonance
state
is
completed,
and
an
amplifying
current
is
then
flowed
again
directly
to
DY
through
the
dumper
diode.
By
this
means,
deflection
in
the
first
half
of
the
scanning
period
is
performed,
and
when
Q432
becomes
ON
at
the
end
of
the
first
half
of
the
scanning
period,
deflection
during
the
last
half
is
begun,
thus
completing
one
cycle.
7.CPU
Pin
description
Pint:
H-sync.
input
(Horizontal
pulse
for
OSD)
Pin2:
\V-sync.
input
(Vertical
pulse
for
OSD)
Pin3:
Volume
contro!
output
(6-bit
DAC)
Pin4:
Colour
control
output
(6-bit
DAC)
Pin5:
Brightness
control
output
(6-bit
DAC)
Pin6:
Contrast
control
output
(6-bit
DAC)
Pin7/8:
Not
used
(GND)
Pin9:
TV/AV
output
(L:AV
mode)
Pinti0:
AFT
ON/OFF
output
(L:AFT
ON)
Pini1:
Not
used
(GND)
Pini2:
l2C
bus
SCL
(Serial
clock
for
memory)
Pin13:
12C
bus
SDA
(Serial
date
for
memory)
Pin14:
Tuning
voltage
output
Pini5:
Ident
signal
input
(L:No
signal)
Pin16:
R/C
signal
input
Pini7/18:
Band
select
option
input
Pini9:
Not
used
(Open)
Pin20:
SCART
auto
switch
input
(L:VCR
Play)
Pin21/22:
Band
selector
output
Pin23:
Supply
Ground
Pin24:
Oscillator
input
for
CPU
Pin25:
Oscillator
output
for
CPU
Pin26:
Supply
Ground
Pin27:
Power
supply(+5V)
Pin28:
Oscillator
output
for
OSD
Pin29:
Oscillator
input
for
OSD
Pin30:
Reset
input
Pin31:
Protect
signal
input
(L:Power
circuit
defects)
Pin32:
Sync.
ID
signal
input
Pin33:
AFT
signal
input
Pin34:
Keyboard
scan
2
Pin35:
Keyboard
scan
1
Pin36~45:
Not
used
(GND)
Pin46:
Not
used
Pin47:
Mute
output
in
no
picture(FTZ
mute)
Pin48:
Power
ON/OFF
output
(H:ON)
Pin49:
Blanking
output
for
OSD
Pin50:
Not
used
(Open)
Pin51:
Green
output
for
OSD
Pin52:
Not
used
(Open)
