-12-
Service Adjustments with Replacing Memory IC(IC802)
[Entering to Service Mode]

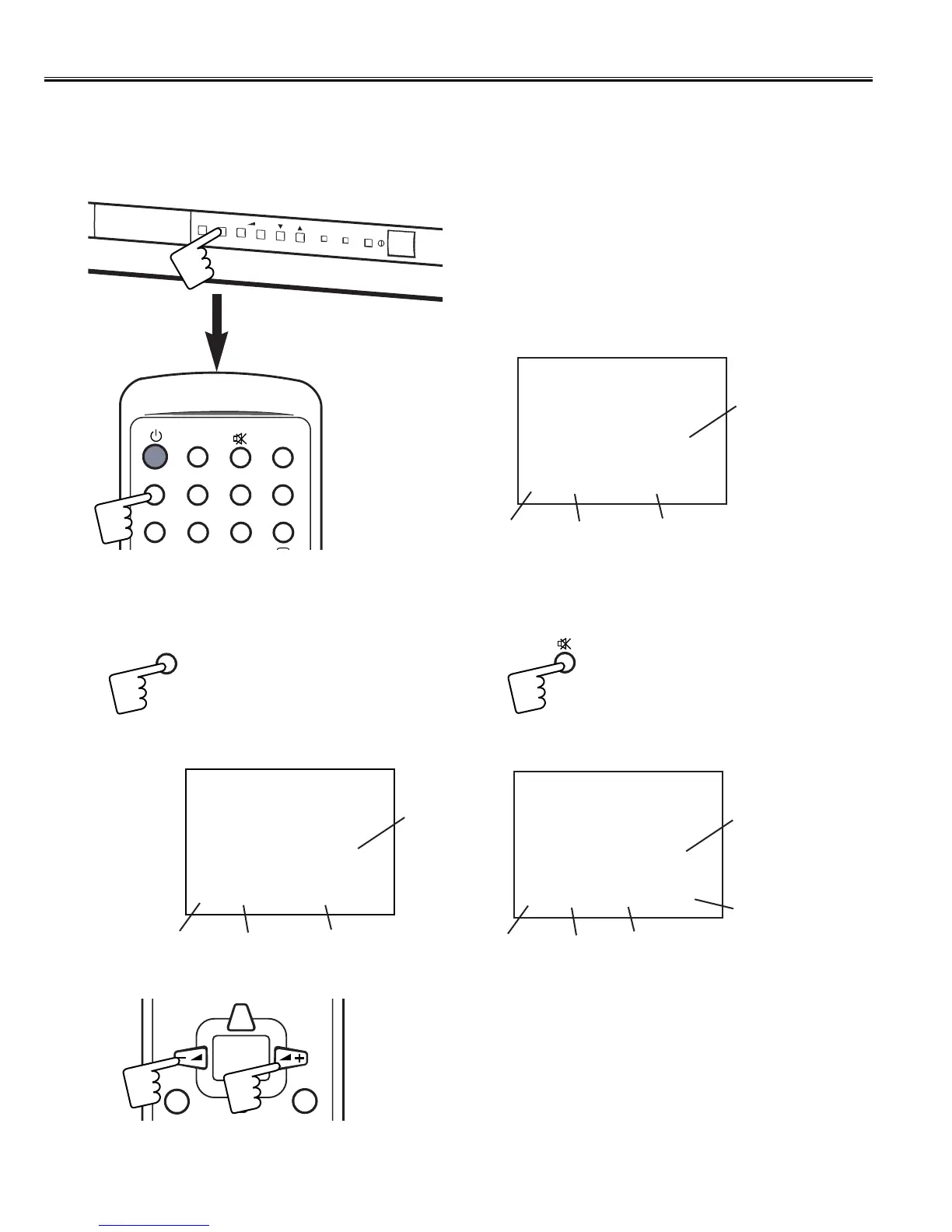

1. Press and hold the MENU button on the TV set and press the [1] button on the remote control handset. Following
setting items appears on the screen.
Display for [AGC] AGC adjustment
■ 00010100 ■
ADDRESS DATA
05 AGC 64
Read Status
Item No. Item Data value
01➔02➔03➔04➔05......172
172➔171➔170➔169➔168......01
Display for [H-P] Horizontal centre adjustment
■ 00010100 ■
ADDRESS DATA
01 H-P 8
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
■ 00010100 ■
ADDRESS DATA
23 DRV R 64 B 64
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME
-
button on the remote control handset.
Example
To Next Page
