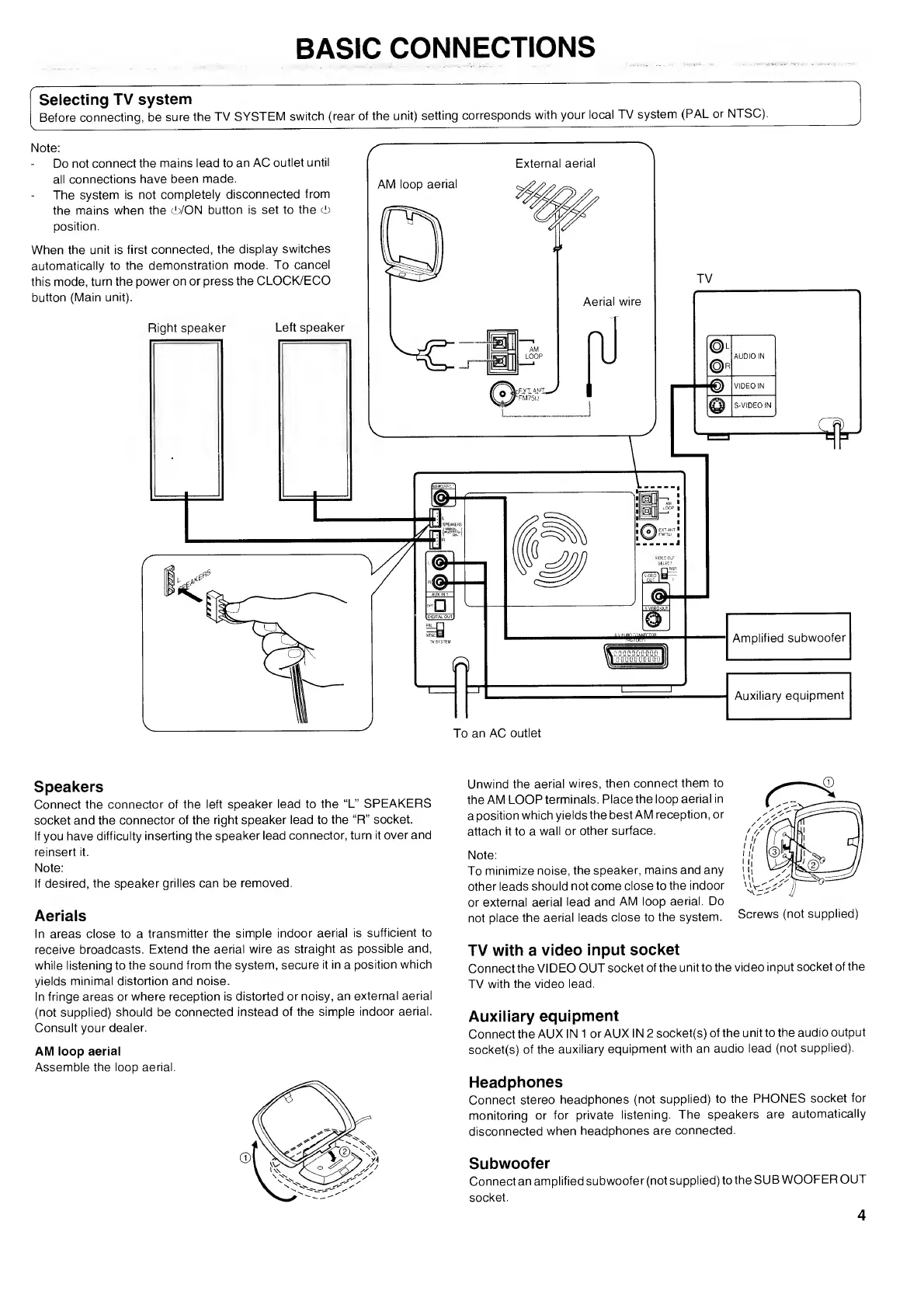

BASIC CONNECTIONS
Selecting TV system
Before connecting, be sure the TV SYSTEM switch (rear of the unit) setting corresponds with your local TV system (PAL or NTSC).
Note:
Do not connect the mains lead to an AC outlet until
all connections have been made.
The system is not completely disconnected from
the mains when the dVON button is set to the ci>
position.
When the unit is first connected, the display switches
automatically to the demonstration mode. To cancel
this mode, turn the power on or press the CLOCK/ECO
button (Main unit).
Aerial wire
Speakers
Connect the connector of the left speaker lead to the “L” SPEAKERS
socket and the connector of the right speaker lead to the “R” socket.
If you have difficulty inserting the speaker lead connector, turn it over and
reinsert it.
Note:
If desired, the speaker grilles can be removed.
Aerials
In areas close to a transmitter the simple indoor aerial is sufficient to
receive broadcasts. Extend the aerial wire as straight as possible and,
while listening to the sound from the system, secure it in a position which
yields minimal distortion and noise.
In fringe areas or where reception is distorted or noisy, an external aerial
(not supplied) should be connected instead of the simple indoor aerial.
Consult your dealer.
AM loop aerial
Assemble the loop aerial.
Unwind the aerial wires, then connect them to
the AM LOOP terminals. Place the loop aerial in
a position which yields the best AM reception, or
attach it to a wall or other surface.
Note:
To minimize noise, the speaker, mains and any
other leads should not come close to the indoor
or external aerial lead and AM loop aerial. Do
not place the aerial leads close to the system.
TV with a video input socket
Connect the VIDEO OUT socket of the unit to the video input socket of the
TV with the video lead.
Auxiliary equipment
Connect the AUX IN 1 or AUX IN 2 socket(s) of the unit to the audio output
socket(s) of the auxiliary equipment with an audio lead (not supplied).
Headphones
Connect stereo headphones (not supplied) to the PHONES socket for
monitoring or for private listening. The speakers are automatically
disconnected when headphones are connected.
Subwoofer
Connect an amplified subwoofer (not supplied) to the SUB WOOFER OUT
socket.
Screws (not supplied)
4
