Sanyo DC-DAV821 - ADDITIONAL CONNECTION EXAMPLES; Video and Audio Connections

Notes on connections
Please refer to the instruction manuals for the components that you
are connecting (TV, AV amplifier, etc.).
When you connect the unit to your TV and other equipment, be sure
to turn off the power and disconnect all of the equipments from the AC
outlet until all the connections have been made.
- Do not connect the unit to a VCR directly for DVD play. The
playback picture will be distorted because DVD discs are copy
protected.
If an interference noise occurs during reception of radio broadcasts,
keep the TV away from the unit or turn off the TV.
If an interference colour noise occurs on the TV screen, keep the
speakers away from the TV.
Please consult your local audio/video dealer for more details.

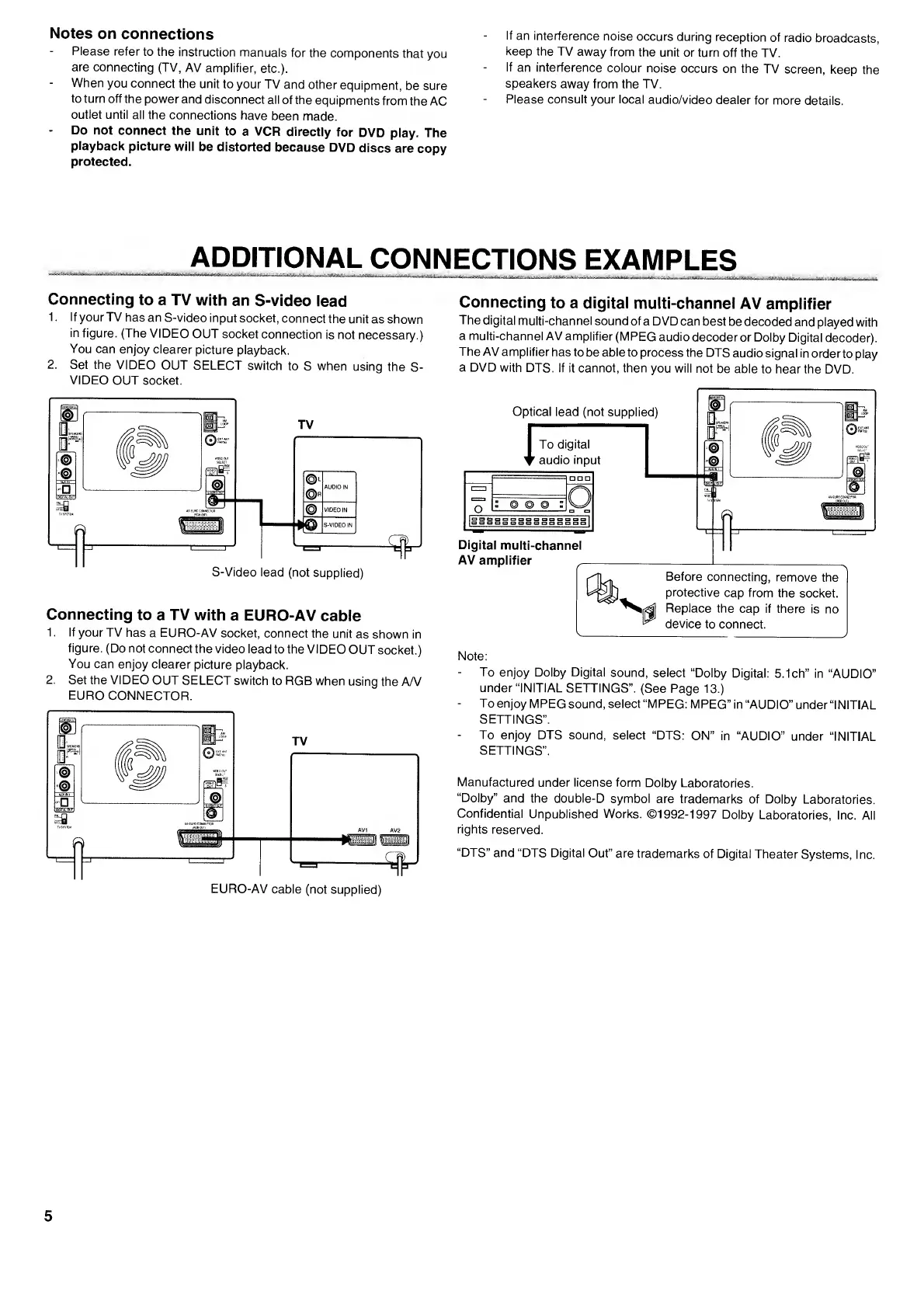

ADDITIONAL CONNECTIONS EXAMPLES
Connecting to a TV with an S-video lead
1. If your TV has an S-video input socket, connect the unit as shown
in figure. (The VIDEO OUT socket connection is not necessary.)
You can enjoy clearer picture playback.
2. Set the VIDEO OUT SELECT switch to S when using the S-
VIDEO OUT socket.
S-Video lead (not supplied)
Connecting to a TV with a EURO-AV cable
1. If your TV has a EURO-AV socket, connect the unit as shown in
figure. (Do not connect the video lead to the VIDEO OUT socket.)
You can enjoy clearer picture playback.
2. Set the VIDEO OUT SELECT switch to RGB when using the AA/
EURO CONNECTOR.
EURO-AV cable (not supplied)
Connecting to a digital multi-channel AV amplifier
The digital multi-channel sound of a DVD can best be decoded and played with
a multi-channel AV amplifier (MPEG audio decoder or Dolby Digital decoder).
The AV amplifier has to be able to process the DTS audio signal in orderto play
a DVD with DTS. If it cannot, then you will not be able to hear the DVD.
Note:
To enjoy Dolby Digital sound, select “Dolby Digital: 5.1ch” in “AUDIO”
under “INITIAL SETTINGS”. (See Page 13.)
To enjoy MPEG sound, select “MPEG: MPEG” in “AUDIO” under “INITIAL
SETTINGS”.
- To enjoy DTS sound, select “DTS: ON” in “AUDIO” under “INITIAL
SETTINGS”.
Manufactured under license form Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All
rights reserved.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
TV
5
