Sanyo DP19241 Service Manual

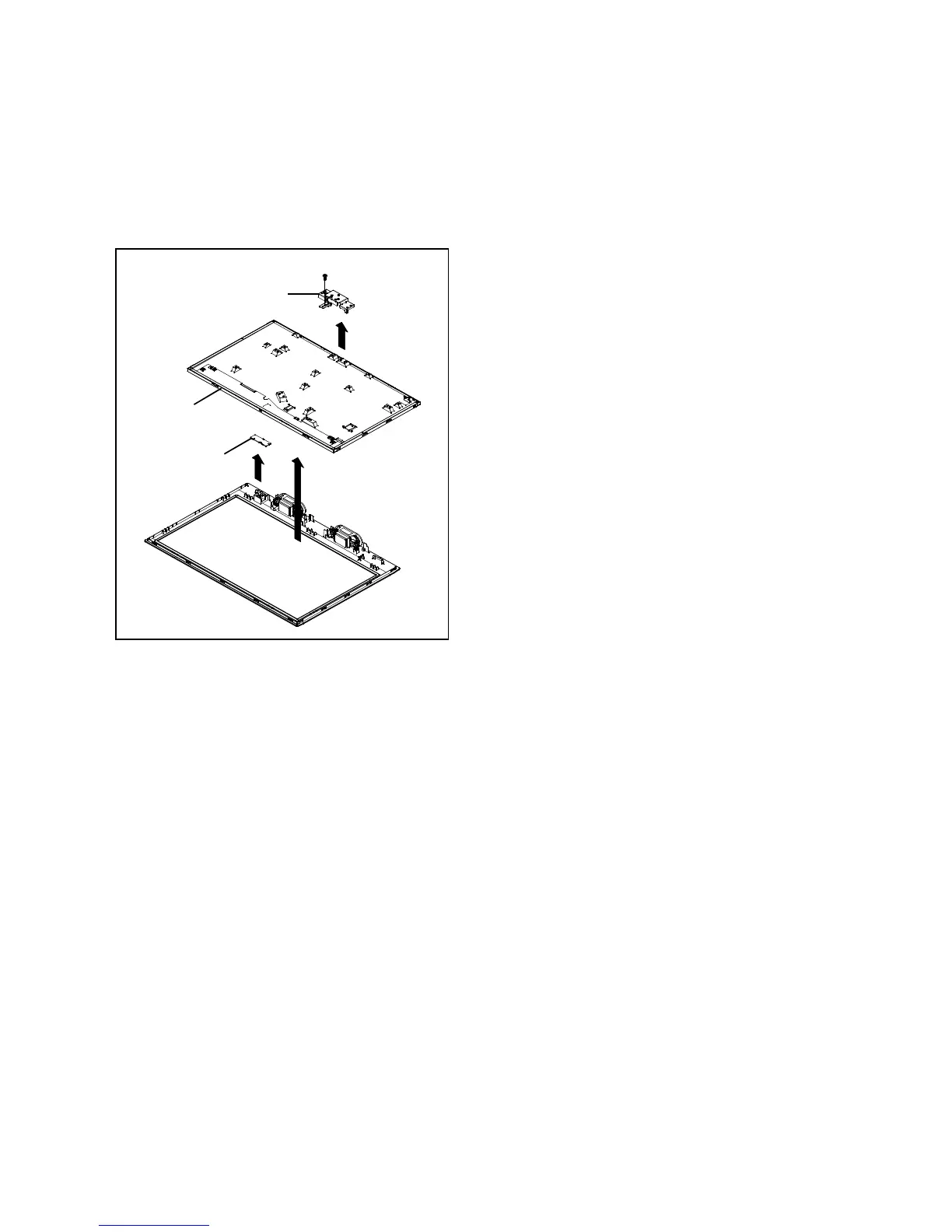

1-5: LED PANEL/REMOCON PCB (Refer to Fig. 1-5)
1. Remove the screw (1).
2. Remove the Angle Hing in the direction of arrow (A).
3. Remove the LED Panel in the direction of arrow
(
B
).
4. Remove the Remocon PCB in the direction of arrow
(
C
).
DISASSEMBLY INSTRUCTION
S
(1)
(A)
(B)
Angle Hing
LED Panel
Remocon PCB
(C)
B1-2
Fig. 1-5
B1-2

Sanyo DP19241 Specifications

Power

power supply	AC 120V 60Hz
power consumption (operation)	24W
power consumption (stand by)	0.3W

Operating Environment

operating temperature	5˚C - 40˚C
operating humidity	Less than 80% RH

Display

display type	Transmission TFT color LCD panel
display size	47.01 cm
number of pixels	1366 (H) × 768 (V)

Audio

audio output power	2.0W + 2.0W
speaker size	25.4 mm × 68.6 mm
hdmi audio	2-channel PCM

Weight and Dimensions

weight	2.6 kg
width	450 mm
height	337.5 mm
depth	168 mm
