GETTING STARTED

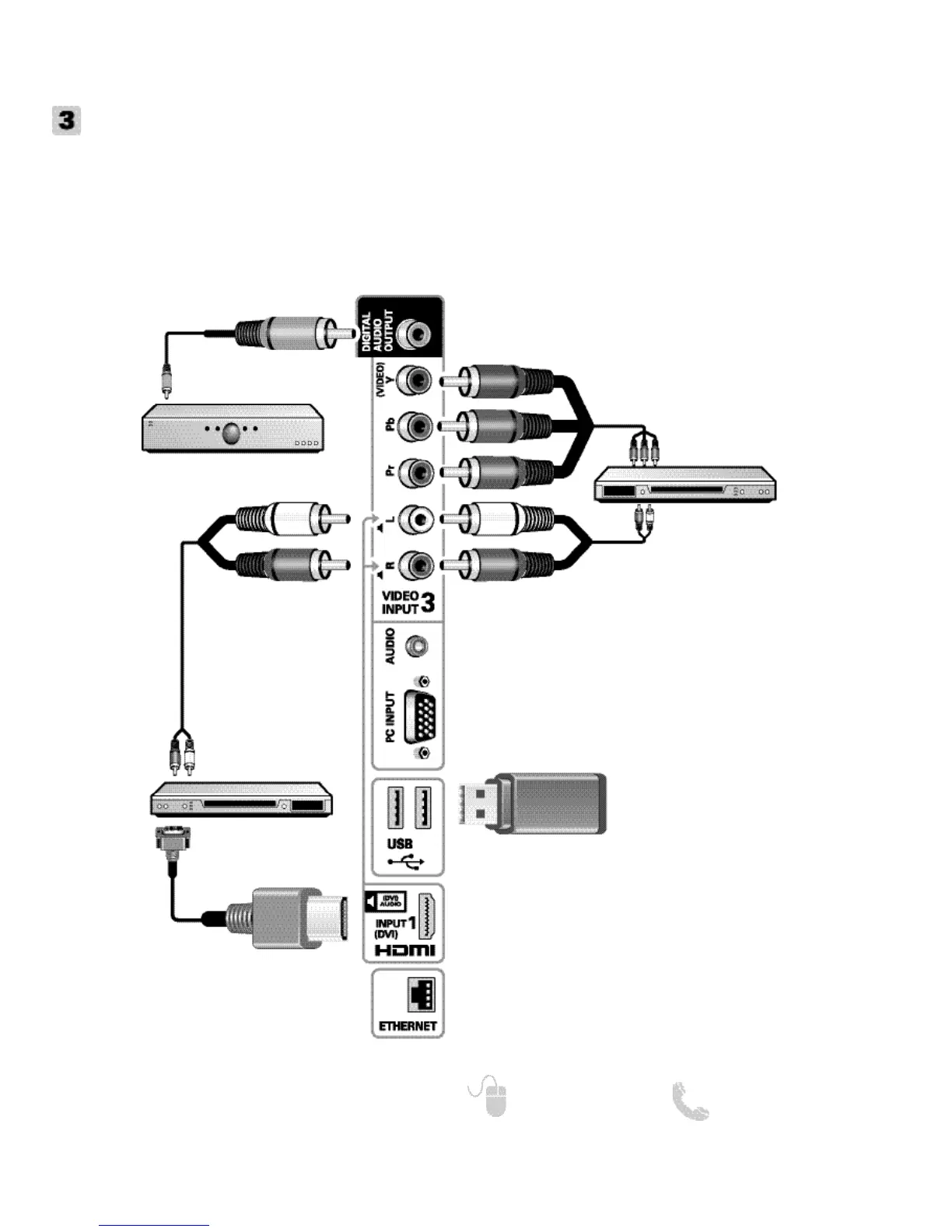

AUDIO / VIDEO CONNECTIONS (SIDE PANEL)
DVD PLAYER
(or similar device)
MULTICHANNEL RECEIVER
(or home theater system)
NOTE: Audio/Video cables
are not supplied.
COMPONENT connections will accept SDTV,
EDTV and HDTV video signals. Use them for great
image quality from digital devices such as a DVD
player or Video Game system.
Match your digital device’s Component output jacks
to either of the two (2) Component input jack sets
(VIDEO2 or VIDEO3) on your HDTV.
USB FLASH DRIVE
USB input jack is used to connect a USB mass
storage device to display digital images on your
HDTV. (JPEG only.)
DVI
HDMI (DVI) INPUT1 can be used to hookup a DVI
device with the use of an appropriate DVI to HDMI
cable or adapter. VIDEO3 Audio in L/R jacks need to
be hooked up to the DVI device as well
NOTE: HDMI INPUT1 may also be used to hookup any digital
device with an HDMI output, without the use of the L/R
audio jacks.
Digital Audio Output is used to output the HDTV’s
Audio through your home theater system.
Hook up the HDTV’s Digital Audio Output to your
home theater system’s input with the use of a
phono-type Digital Audio cable.
DVD PLAYER
(or similar device)
To Next Page
