GETTING STARTED

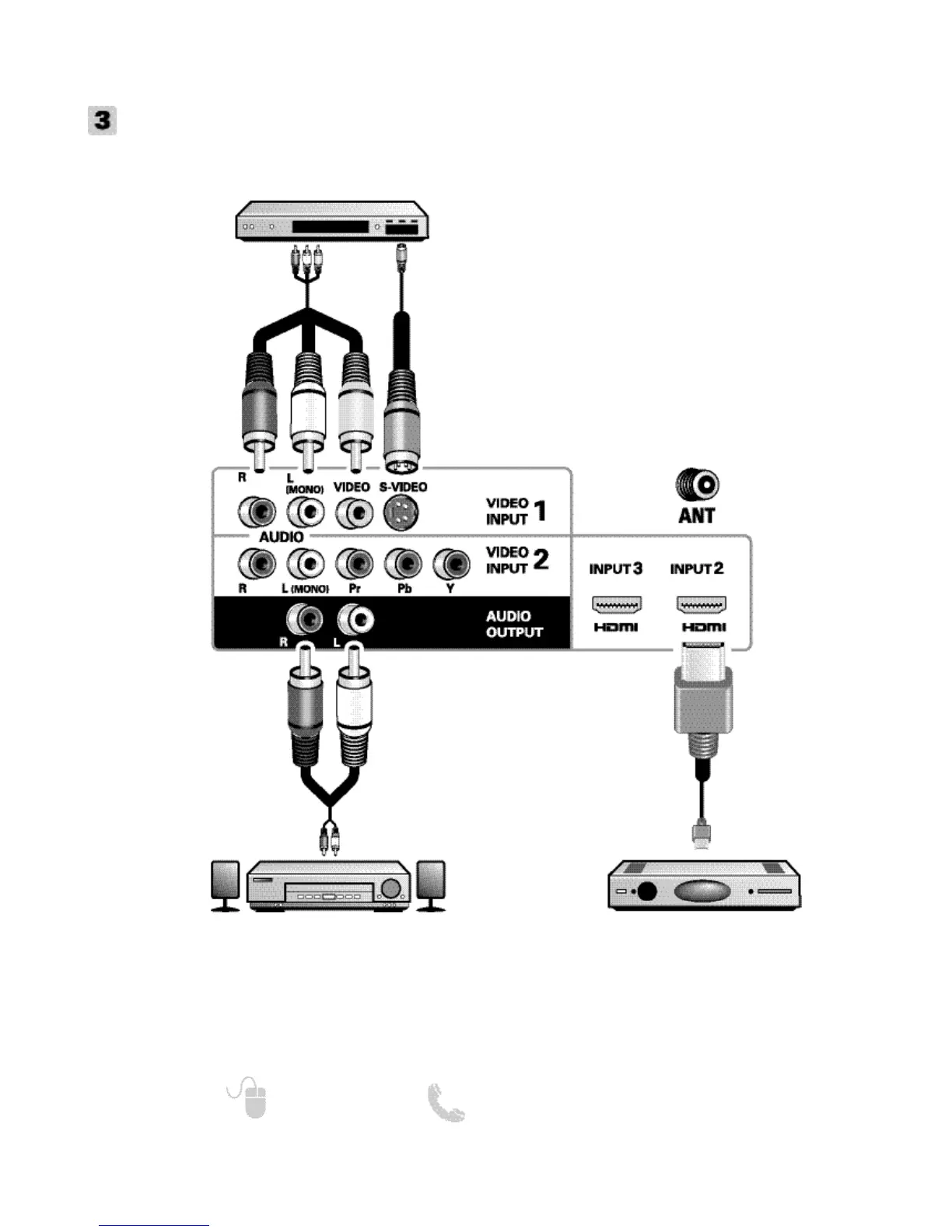

AUDIO / VIDEO CONNECTIONS (BACK PANEL)
VCR
(or analog device)
STEREO AMPLIFIER
COMPOSITE connections are used to hookup
your analog equipment such as a VCR or an older
DVD player.
Hook up you analog device’s yellow video output
jack and corresponding audio output jacks to the
HDTV’s Video Input 1 composite jacks.
NOTE: Always match the color of your device’s output jack,
the connector and the HDTV’s input jack.
S-Video jack may be used instead of the yellow
Composite video input with the use of an S-Video
cable connected from your device’s S-Video out-
put to the HDTV’s S-Video input.
SATELLITE RECEIVER
(or similar device)
Audio Output L/R are used to hookup an external
stereo Amplifier. Connect your home stereo’s
input jacks to the HDTV’s Audio Output jacks with
a pair of audio red and white connectors.
NOTE: Do not connect external speakers directly to the
HDTV.
Use HDMI INPUT1, 2 & 3 to hookup HD digital
devices such as a Blu-ray player, HD Cable Box,
HD Satellite Receiver or Video-game System.
Connect your digital device’s HDMI output to any
of the three (3) HDMI inputs on your HDTV with
the use of an HDMI cable.
HDMI
To Next Page
