POSITIONING THE TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.

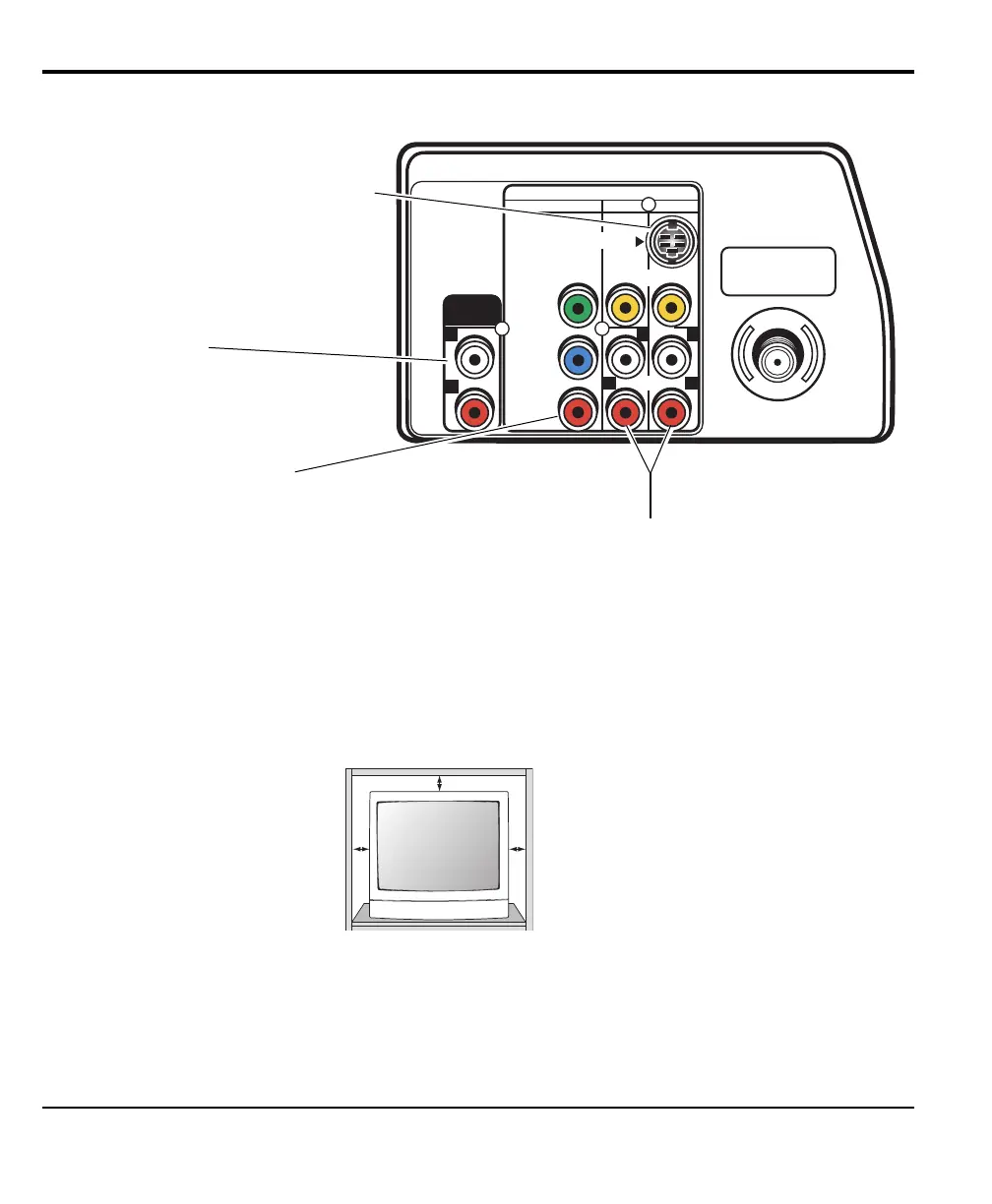

Audio/Video In Jacks (AV1 / AV2)
Connect video equipment here (see
pages 6 ~ 7).
Note: S-Video connection will override an
AV1 video connection.
S-Video In Terminal
To enhance video detail use the AV1
S-Video jack instead of the AV1 Video jack,
if available on your external equipment. (An
S-Video connection will override connection
to the AV1 video input jack. See page 6.)
Audio Out Jacks
Connect external audio equipment
here (see page 8).
480i Component Video In Jacks
(Component 2, Y, Pb, Pr)
Connect video equipment here (see
page 7).
Note: Audio/Video Input (AV2)
and Component inputs
share the same audio
(R/L) input jacks.
