Sanyo DWM-1000 Service Manual

- 57 -

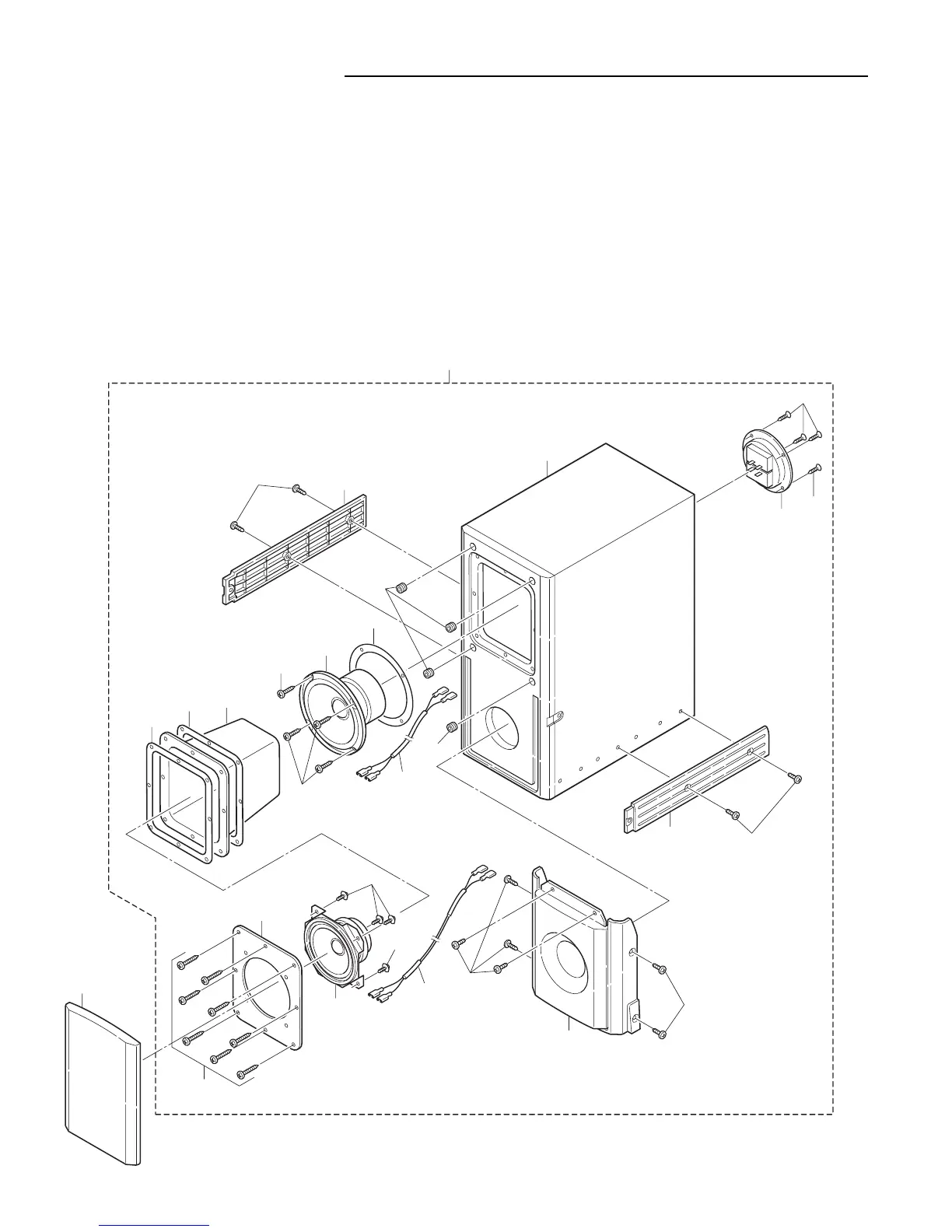

PARTS LIST & EXPLODED VIEW
SPEAKER BOX
REF.NO. PART NO. DESCRIPTION
A 614 315 8622 ASSY,BOX,SPEAKER(1000)
A 614 317 9320 ASSY,BOX,SPEAKER(XE)
A 614 317 9337 ASSY,BOX,SPEAKER(UK,SS,KR,AU)
A 614 317 3229 ASSY,BOX,SPEAKER(US)
A 614 318 3532 ASSY,BOX,SPEAKER(CA)
A-1 614 319 0516 ASSY,BOX,SPEAKER
A-2 645 048 4957 LEFT SIDE COVER
A-3 645 048 4964 RIGHT SIDE COVER
A-4 645 048 4988 MID RANGE HOLDER
A-5 645 048 4995 MID RANGE BACK COVER
A-6 645 048 5015 MID RANGE
A-7 645 048 5008 WOOFER
A-8 645 048 4971 RUBBER CATCHER
A-9 645 048 5046 TERMINAL BOX
A-10 645 048 5060 JOIN WIRE
A-11 645 048 5077 JOIN WIRE
A-12 645 048 5138 SCREW,SIDE COVER
A-13 645 048 5114 SCREW,FRONT PANEL,TOP SIDE
A-14 645 048 5121 SCREW,MID RANGE HOLDER
A-15 645 048 5145 SCREW,WOOFER UNIT
A-16 645 048 5091 SCREW,MID RANGE UNIT
A-17 645 048 5107 SCREW,TERMINAL BOX
A-18 645 048 5183 FRONT PANEL
A-19 645 048 5152 CUSHION
B 614 315 8127 ASSY,GRILLE(1000,XE,UK,SS,KR,AU)
B 614 317 3250 ASSY,GRILLE(US)
B 614 318 3648 ASSY,GRILLE(CA)
REF.NO. PART NO. DESCRIPTION
B
14
15
16
16
15
13
13
12
17
17
12
18
3
10
11
9
1
4
5
19
19
19
7
8
8
A
2
6

Sanyo DWM-1000 Specifications

General

Brand	Sanyo
Model	DWM-1000
Category	Home Theater System
Language	English
