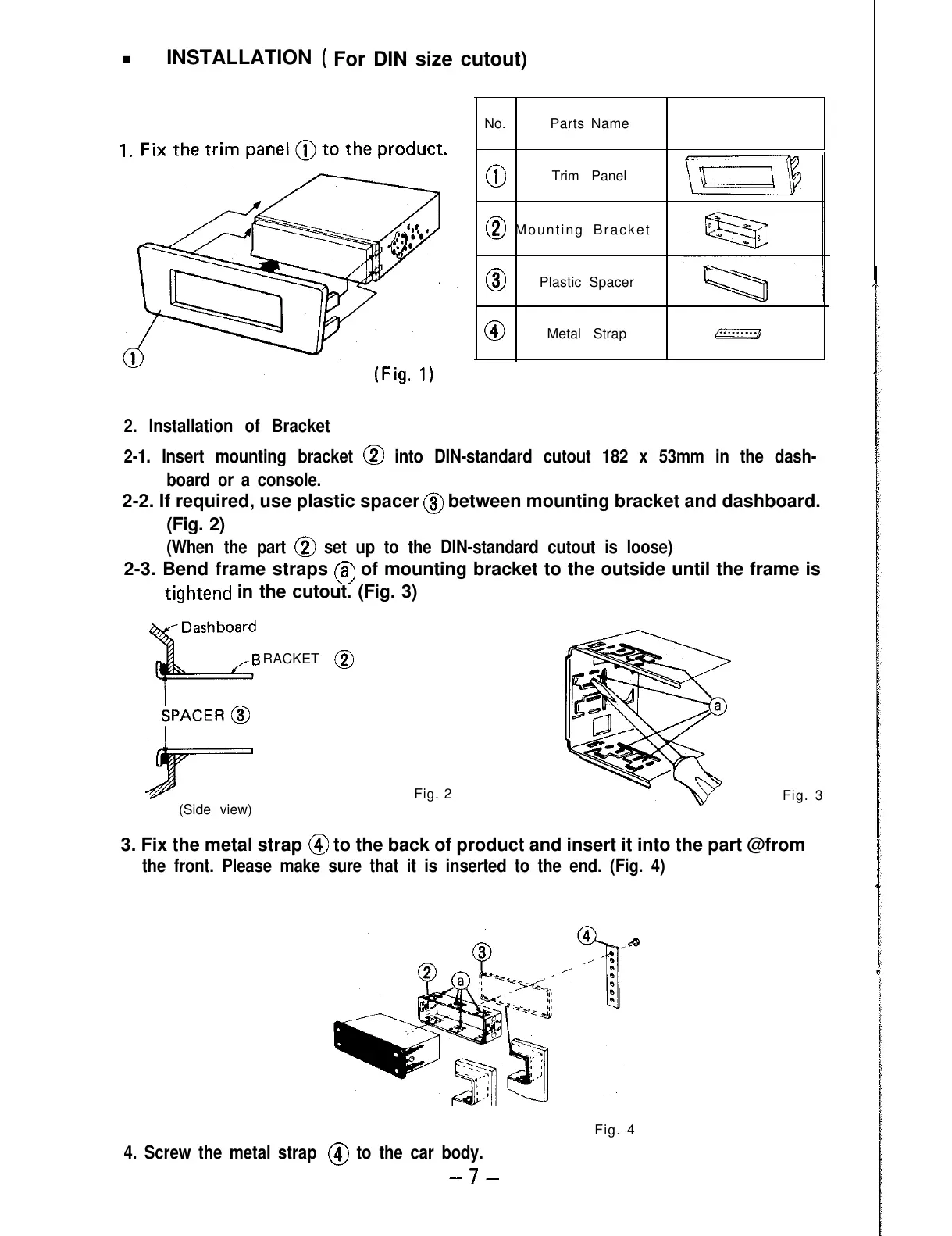

n INSTALLATION
(
For DIN size cutout)
No. Parts Name
0
Trim Panel
@
Mounting Bracket
0
Plastic Spacer
0
Metal Strap
w
2. Installation of Bracket
2-1. Insert mounting bracket
@
into DIN-standard cutout 182 x 53mm in the dash-
board or a console.
2-2. If required, use plastic spacer
@
between mounting bracket and dashboard.
(Fig. 2)
(When the part
@
set up to the DIN-standard cutout is loose)
2-3. Bend frame straps
@
of mounting bracket to the outside until the frame is
tightend
in the cutout. (Fig. 3)
RACKET
@
(Side view)
Fig. 2
Fig. 3
3. Fix the metal strap
@
to the back of product and insert it into the part @from
the front. Please make sure that it is inserted to the end. (Fig. 4)
Fig. 4
4. Screw the metal strap
@
to the car body.
-7-
