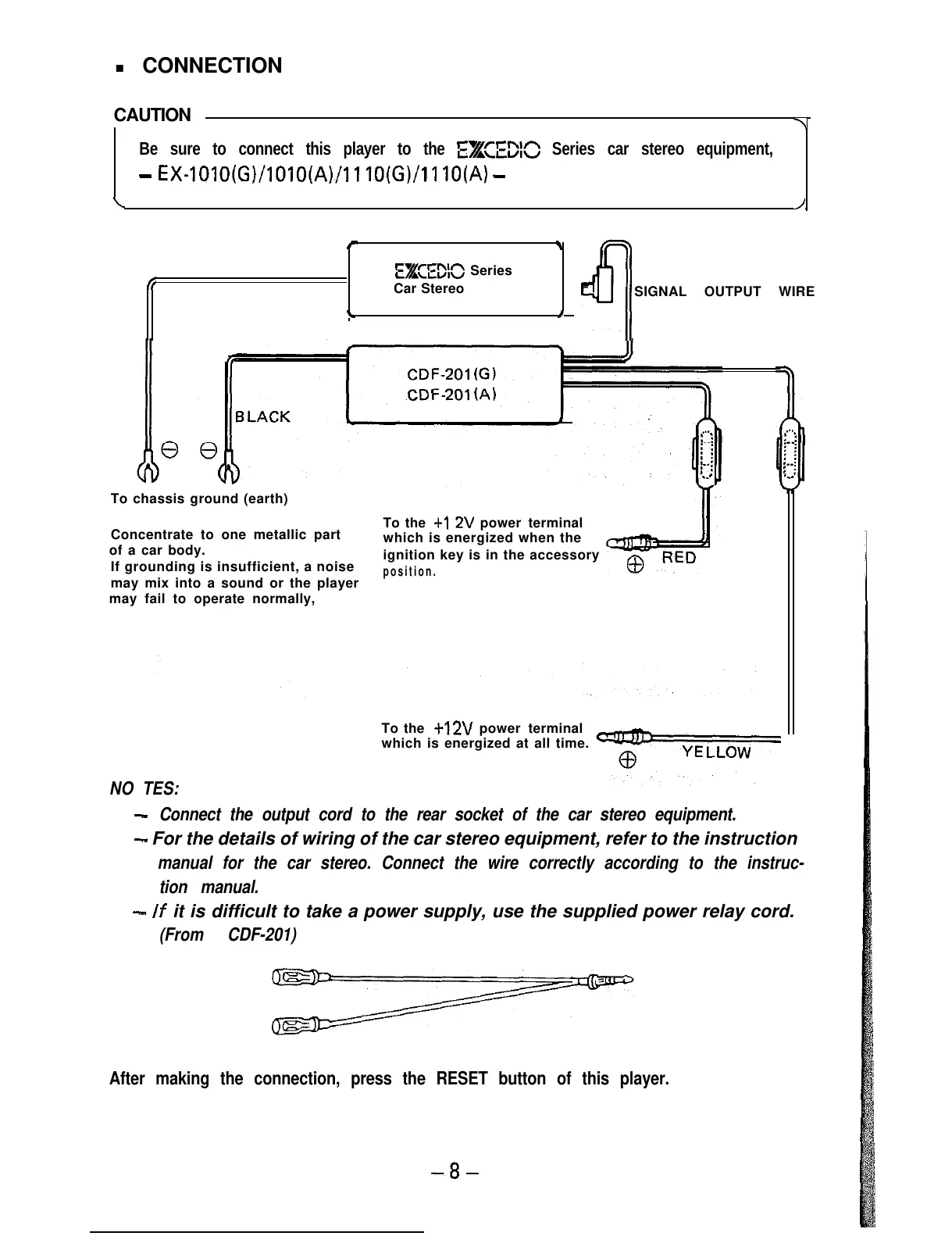

n CONNECTION
CAUTION
\
Be sure to connect this player to the
ExCEDic
Series car stereo equipment,
-
EX-1010(G)/1010(A)/11
IO(G)/11
IO(A)
-
\
/
6
c
\
EXCEDIB
Series
Car Stereo
\
I
4
SIGNAL OUTPUT WIRE
To chassis ground (earth)
Concentrate to one metallic part
To the
+I
2V
power terminal
of a car body.
which is energized when the
If grounding is insufficient, a noise
ignition key is in the accessory
may mix into a sound or the player
position.
may fail to operate normally,
To the
+12V
power terminal
which is energized at all time.
NO TES:
-
Connect the output cord to the rear socket of the car stereo equipment.
-
For the details of wiring of the car stereo equipment, refer to the instruction
manual for the car stereo. Connect the wire correctly according to the instruc-
tion manual.
-
If
it is difficult to take a power supply, use the supplied power relay cord.
(From CDF-201)
After making the connection, press the RESET button of this player.
