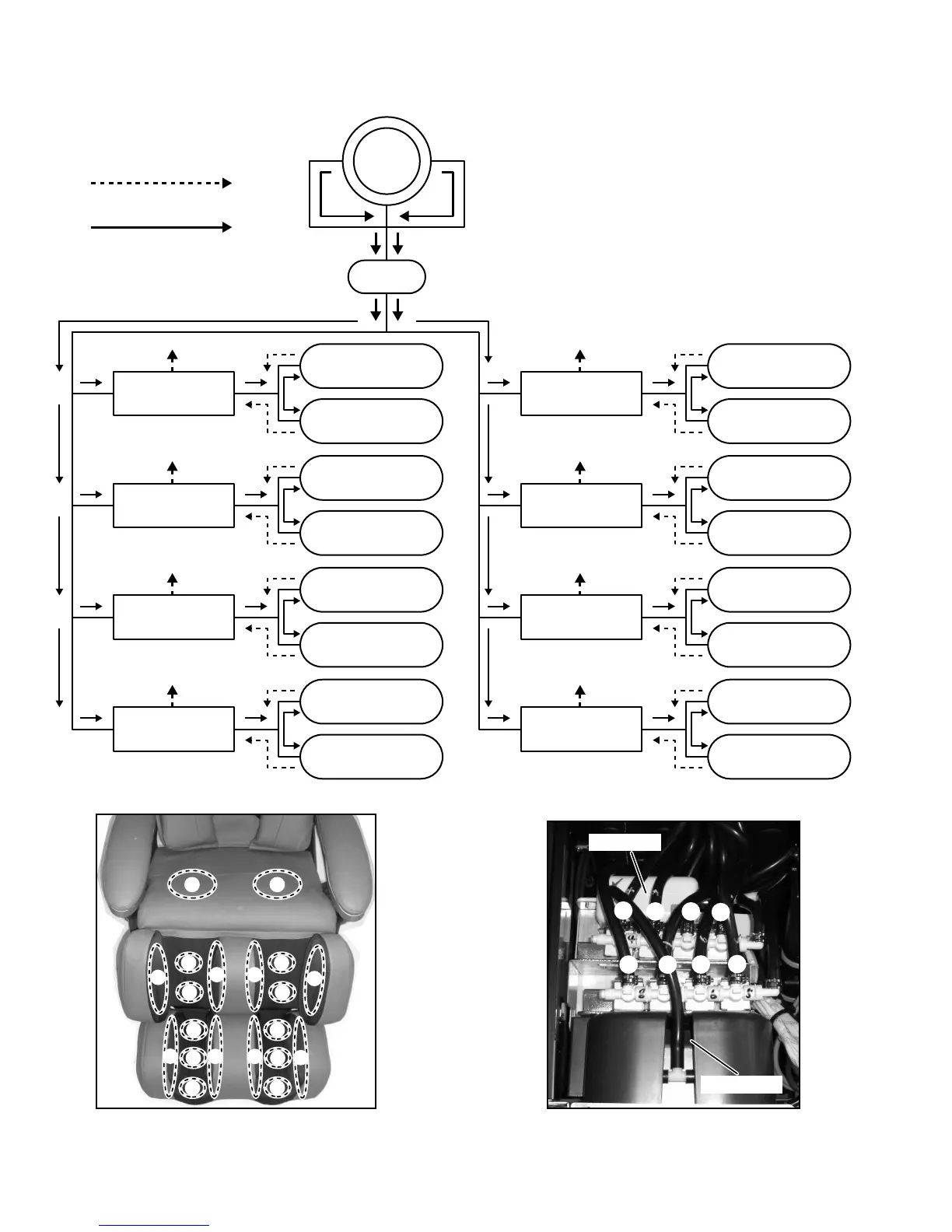

Sanyo HEC-DR5000 - Air System Wiring and Components

- 6 -
Air tank
Air pump
Air bag position
Solenoid / Air pump position
4
32
1
8
8
8
3
3
4
4
5
5
5
5
2
6
6
1
1
7
7
2
2
2
7
6
5
compressing
Air pump
Air tank
decompressing
1 Solenoid
(Foot shiatsu, middle)
1 Air bag
(Foot shiatsu, middle)
1 Air bag
(Foot shiatsu, middle)
2 Air bag
(Foot shiatsu,
back and forth)
2 Air bag
(Foot shiatsu,
back and forth)
3 Air bag
(Leg shiatsu, upper)
4 Air bag
(Leg shiatsu, lower)
3 Air bag
(Leg shiatsu, upper)
4 Air bag
(Leg shiatsu, lower)
2 Solenoid
(Foot shiatsu,
back and forth)
3 Solenoid
(Leg shiatsu, upper)
4 Solenoid
(Leg shiatsu, lower)
Exhaust
Exhaust
Exhaust
Exhaust
5 Solenoid
(Leg pinching)
5 Air bag
(Leg pinching)
5 Air bag
(Leg pinching)
7 Air bag
(Foot pinching, insaide)
7 Air bag
(Foot pinching, insaide)
6 Air bag
(Foot pinching, outsaide)
6 Air bag
(Foot pinching, outsaide)
8 Air bag
(Thigh, right , left)
8 Air bag
(Thigh, right , left)
6 Solenoid
(Foot pinching, outsaide)
7 Solenoid
(Foot pinching, insaide)
8 Solenoid
(Thigh, right , left)
Exhaust
Exhaust
Exhaust
Exhaust
HEC-DR5000 (GENERAL)
Air Wiring
