Air tank
Air hoses
Solenoids
Air pump
Photo-2
Photo-1
1, Foot shiatsu, middle
2, Foot shiatsu, back and forth
3, Leg shiatsu, upper
4, Leg shiatsu, lower
5, Leg pinching
6, Foot pinching, outsid
7, Foot pinching, insaide
8, Thigh, right, left
Structure of air massaging component for lower extremites
8
8
3
3
4
4
5
5
5
5
2
6
6
1
1
1
2
3
4
8
7
6
5
7
7
2
2
2

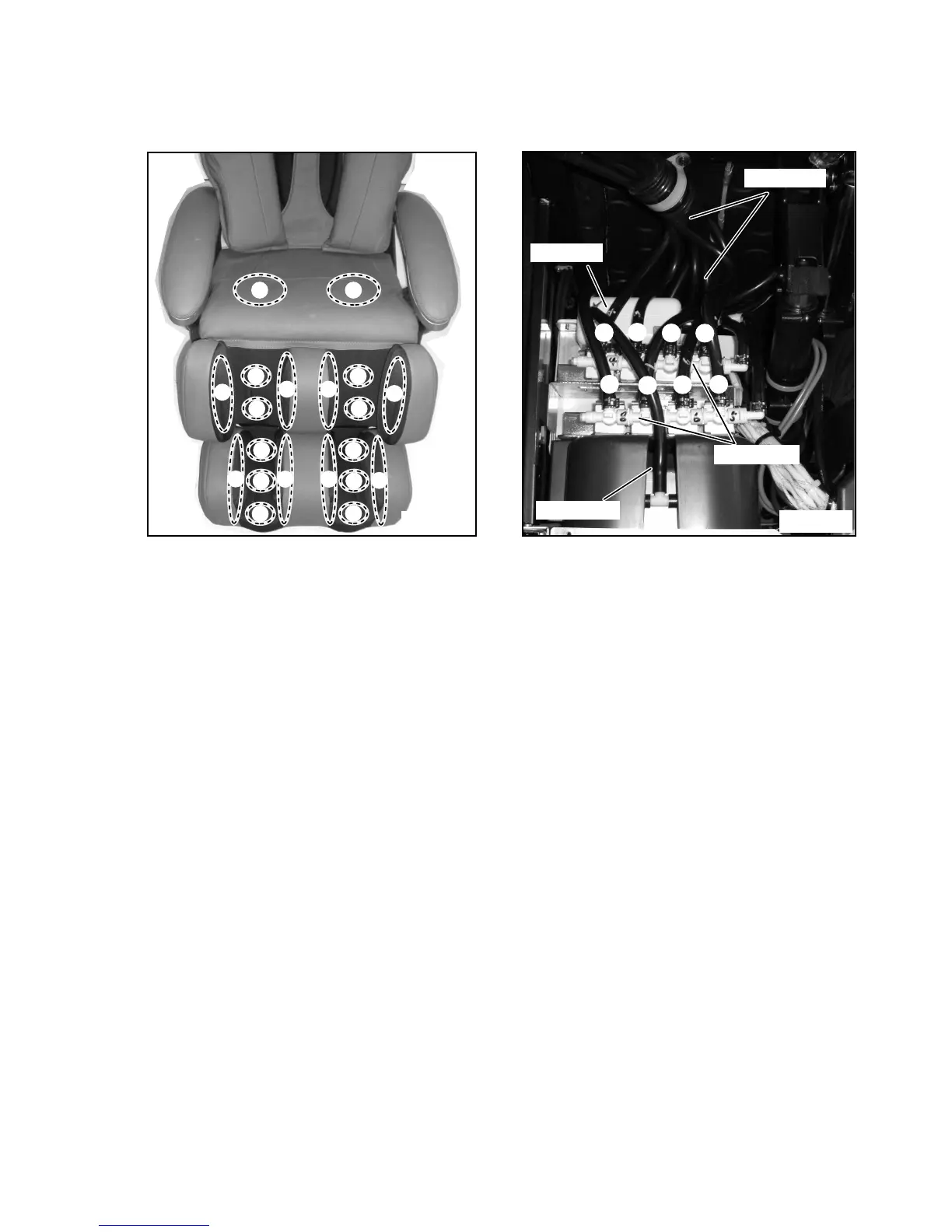

1. The air massager is composed of 20 air bags (photo-1) contained in an air pump, an air
tank and solenoids (Photo-2), and foot and leg massaging components and of air hoses
(photo-2) connecting among them, all of which are located under the seat.
2. Air pressured by means of the air pump is supplied to the individual air bags by switching
among the solenoids.
3. In massaging, the process of two steps is repeated; 1) pressing and finger-pressurizing
feet and legs by air bags expanded with filled air and 2) compressing the air bags by
discharging air from the solenoids.
